| Prod Model: |
SC to LC Fiber Optic Patchcord/Jumpers |
| Product: |
SC-LC Fiber Optic Patchcord/Jumpers |
| Connector Type: |
Lx.5, FC, LC, Sc, St, MPO, DIN, D4, Mu |
| Polish: |
Upc/APC |
| Mode: |
Sm/mm |
| Od: |
0.9mm, 2.0mm, 3.0mm |
| Material: |
PVC/LSZH |
| Cable Length: |
Customized |
| Insertion Loss: |
Less Than 0.2dB |
| Return Loss: |
More Than 50dB |
| Operating Wavelength: |
1310, 1510nm etc. |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
SC-LC |
Product Description

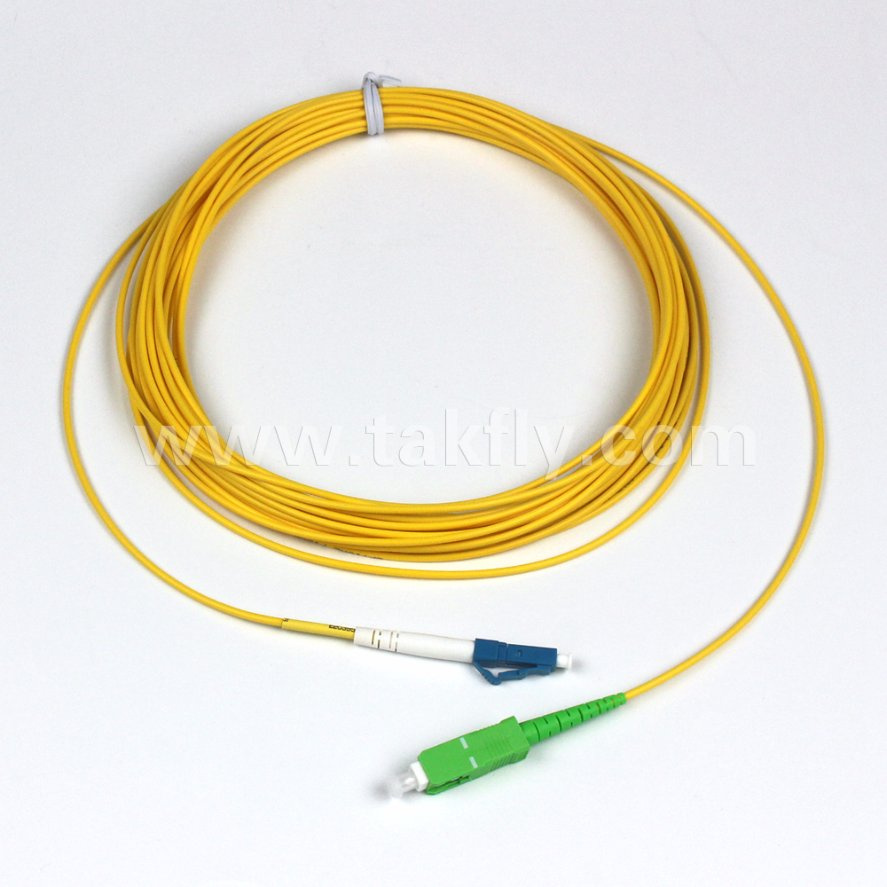

SC to LC 0.9/2.0/3.0mm PVC/LSZH Fiber Optic Patchcord/Jumpers
Features:
Type SC to LC Fiber Optic Patchcord and PigtailSingle mode and Multimode PC or 8 degree APC 9 degree APCCable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 CoreCustom order lengthCable color green, yellow, orange or Customized DesignsCable PVC,Hytrel,LSZH,OFNP,OFNRAll parts compliant with ROHSIEC standard compatibleGR-326-CORE Compliant.
SC to LC 0.9/2.0/3.0mm PVC/LSZH Fiber Optic Patchcord/Jumpers
Application:
Telecommunication
CATVLAN & WAN
Network
Broadband
FTTH
SC to LC 0.9/2.0/3.0mm PVC/LSZH Fiber Optic Patchcord/Jumpers
Parameter:
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
SC to LC 0.9/2.0/3.0mm PVC/LSZH Fiber Optic Patchcord/Jumpers
Order Information:
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H03 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3.Green
4.Black
5.Blue and Yellow
6.Red and Black
|
SC to LC 0.9/2.0/3.0mm PVC/LSZH Fiber Optic Patchcord/Jumpers
