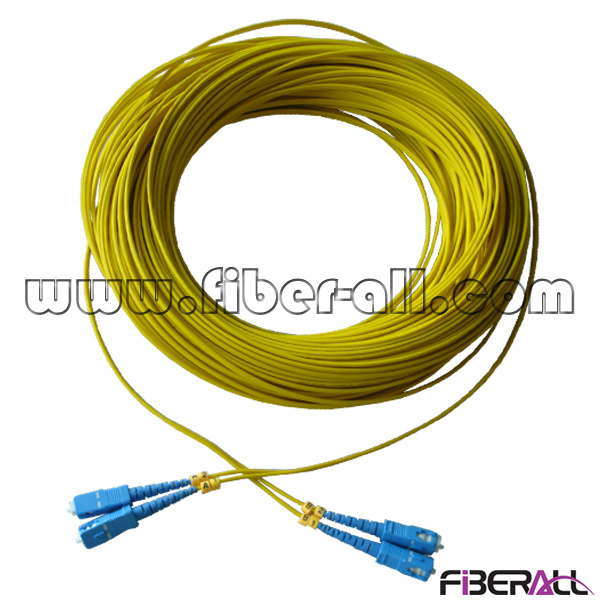

Sc to Sc Sm Optical Fiber Jumper with LSZH Jacket

Name: Sc to Sc Sm Optical Fiber Jumper with LSZH Jacket
Brand: all-electronics-online.com
SKU: 819986665
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FAPC-SPSPS2
Jacket Color:	Yellow or Customized
Cable Length:	Customized
End Face:	PC, Upc, APC
Cable Diameter:	2.0mm, 3.0mm
Fiber Channel:	Duplex
Jacket Material:	PVC, LSZH or Customized
Fiber Type:	G652 or Customized
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	ISO9001

Product Description

FAPC-SPSPS2, SC To SC SM Optical Fiber Jumper With LSZH Jacket

Fiberall mainly produce three series fiber cable assemblies:
1, All kinds simplex or duplex fiber patch cord
2, All range simplex pigtail
3, Multi-fiber cable assemblies like multi-color pigtail, breakout or fan-out pigtail and patch cord made with bundle round cable,ribbon flat cable, waterproof cable, indoor armored cable,outdoor tactical cable, base station cable, special fiber jumper with CPRI waterproof plug, ODVA plug and so on.

Order Information:

Connector Type	SC, LC, ST, FC, MU, MT-RJ, D4, DIN, LX.5, VF45, MPO/MTP, E2000
Polishing Type	PC, UPC/SPC, APC
Cable Diameter	0.6mm, 0.9mm, 1.8mm, 2.0mm, 2.8mm, 3.0mm, Customized
Fiber Type	OS1, OS2, OM1, OM2, OM3, OM4 or G651, G652(B or D), G655, G657(A1 or A2)
Jacket Material	PVC, LSZH (LSOH), OFNR, OFNP, PU/TPU, TPEE/Hytrel, PE
Cable Type	Simplex cable, Duplex cable, Bundle breakout round cable, Ribbon flat cable, Waterproof cable, Indoor armored cable, Tactical cable, Base station cable
Fiber Channel	2 fibers,4 Fibers, 8 Fibers, 12 Fibers, 24 Fibers, 48 Fibers, 72 Fibers,144 Fibers
Jacket Color	Yellow, Orange Aqua Blue Green Brown Grey White Red Black Purple Pink
Cable length	Customized
Customized Label, Packing and Print are also acceptable.

Technical parameters:
Standard housing, ceramic ferrule
Fiber type: 9/125 μm (OS1), or 62.5/125μm (OM1), or 50/125μm (OM2, OM3, OM4)
Insertion loss: ≤0.3dB (some special connector have its own standard like MTRJ≤ 0.5dB)
Return loss: UPC for SM≥ 50dB, PC for SM≥ 45dB, APC for SM≥ 60dB, PC for M≥ 20 dB
Repeatability: ≤ 0.2 dB
Changeability:≤ 0.1 dB
Operating temperature range: -20°c ~ 70°c
Storage temperature range: -40°c ~ 80°c
Tensile strength of the connector: 10N
Min. bending radius: 35mm (G.652), 15mm (G657A)

OEM options(all are with MOQ limit):
1, Customized print on cable (words only)
2, Customized label ( on cable, inner bag and outer carton)
3, Customized inner bag (design and print)
4, Customized print on carton ( MOQ limit)

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
