| Prod Model: |
SC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
Copper |
| Certificate: |
ISO, UL, CE, RoHS, CCS |
| Temperature: |
-55oc-150oc. |
| Package: |
100PCS/Bag |
| Uses: |
Electrical Equipment Wiring |
| Feature: |
Explosion-Proof |
| Shapes: |
Round |
| Technics: |
Cold Pressing |
| Part Number: |
Jgk Jga |
| Characteristic: |
Environmental Protection |
| Type: |
Single Hole Terminals |
| Material: |
Copper |
| Application: |
Transmission of Electrical Signals |
| Brand: |
Jiong |
Product Description
Product Description

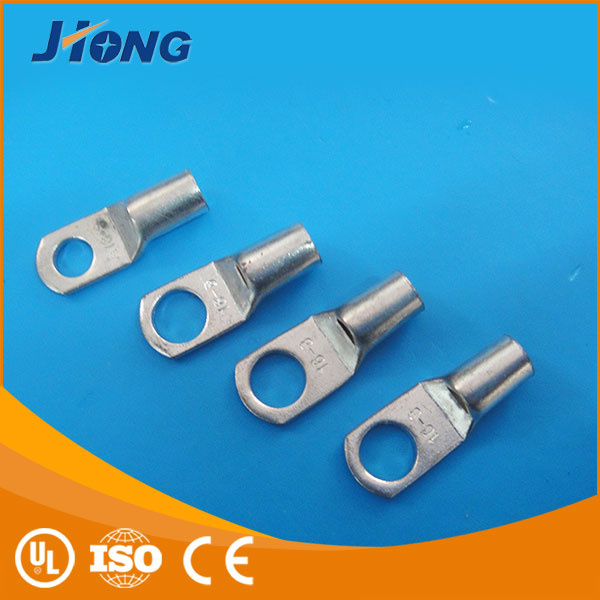

SC Type Wire Crimp Connector,Copper Terminal
Product Application
These product sare suitable of the connection for copper conductors(section1.5-1000mm) in power cable with electronic equiment they are made of with highter 99.9 percent pure copper tube T2 and coated with tin. Working temperature-55ºC-150ºC.
Product Parameters
| SC Foreign Type Copper Connector |
|
| Type | Φ | D | d | L |
| SC(JGK)-1.5 | Φ4.2,Φ5.2 | 3.5 | 2.1 | 19 |
| SC(JGK-2.5) | Φ4.2,Φ5.2,Φ6.2 | 4 | 2.5 |
| SC(JGK)-4) | Φ5.2,Φ6.2 | 4.8 | 3.4 | 20.5 |
| SC(JGK)-6 | Φ5.2,Φ6.2,Φ8.2 | 5.5 | 4.1 | 23 |
| SC(JGK)-10 | Φ6.2,Φ8.2 | 6.5 | 5.1 | 26.5 |
| SC(JGK)-16 | Φ6.2,Φ8.2,Φ10.5 | 8 | 6.4 | 29.5 |
| SC(JGK)-25 | 9 | 7 | 33 |
| SC(JGK)-35 | Φ6.2,Φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.5 | 36 |
| SC(JGK)-50 | Φ8.2,Φ10.5,Φ12.5 | 12 | 9.8 | 43.5 |
| SC(JGK)-70 | 14.5 | 11.9 | 49.5 |
| SC(JGK)-95 | Φ10.5,Φ12.5 | 16 | 13 | 53.5 |
| SC(JGK-120) | Φ12.5,Φ16.5 | 19 | 15.4 | 61 |
| SC(JGK)-150 | 20.5 | 16.7 | 68 |
| SC(JGK)-185 | Φ16.5 | 23.5 | 19.3 | 75 |
| SC(JGK)-240 | 26 | 21.2 | 85 |
| SC(JGK)-300 | Φ16.5,Φ20.5 | 30 | 24 | 95 |
| SC(JGK)-400 | 34 | 27.6 | 111 |
| SC(JGK)-500 | 38 | 31.6 | 123 |
| SC(JGK)-630 | Φ20.5 | 45 | 37.6 | 140 |
| SC(JGK)-800 | 50 | 39 | 170 |
| SC(JGK)-1000 | 56 | 44 | 200 |
| Type | Φ | D | d | L |
| SC(JGA)-6 | Φ5.2,Φ6.2,Φ8.2 | 5.5 | 4.1 | 23 |
| SC(JGA)-10 | Φ6.2,Φ8.2 | 6.5 | 5.1 | 26.5 |
| SC(JGA)-16 | Φ6.2,Φ8.2,Φ10.5 | 8 | 6.4 | 29.5 |
| SC(JGA)-25 | 9 | 7 | 33 |
| SC(JGA)-35 | Φ6.2,Φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.5 | 36 |
| SC(JGA)-50 | Φ8.2,Φ10.5,Φ12.5 | 12 | 9.8 | 43.5 |
| SC(JGA)-70 | 14.5 | 11.9 | 49.5 |
| SC(JGA)-95 | Φ10.5,Φ12.5 | 16 | 13 | 53.5 |
| SC(JGA)-120 | Φ12.5,Φ16.5 | 19 | 15.4 | 61 |
| SC(JGA)-150 | 20.5 | 16.7 | 68 |
| SC(JGA)-185 | Φ16.5 | 23.5 | 19.3 | 75 |
| SC(JGA)-240 | 26 | 21.2 | 85 |
| SC(JGA)-300 | Φ16.5,Φ20.5 | 30 | 24 | 95 |
| SC(JGA)-400 | 34 | 27.6 | 111 |
| SC(JGA)-500 | 38 | 31.6 | 123 |
| SC(JGA)-630 | Φ20.5 | 45 | 37.6 | 14 |
| Type | Dimensions(mm) |
| D | d | L |
| SC1.5 | 3.5 | 2.1 | 19 |
| SC2.5 | 4 | 2.5 | 20 |
| SC4 | 4.8 | 3.4 | 23 |
| SC6 | 5.5 | 4.1 | 25 |
| SC10 | 6.5 | 5.1 | 32 |
| SC16 | 8 | 6.4 | 34 |
| SC25 | 9 | 7 | 37 |
| SC35 | 10.5 | 8.5 | 43 |
| SC50 | 12 | 9.8 | 48 |
| SC70 | 14.5 | 11.9 | 56 |
| SC95 | 16 | 13 | 60 |
| SC120 | 19 | 15.4 | 69 |
| SC150 | 20.5 | 16.7 | 74 |
| SC185 | 23.5 | 19.3 | 82 |
| SC240 | 26 | 21.2 | 94 |
| SC300 | 30 | 24 | 108 |
| SC400 | 34 | 27.6 | 117 |
| SC500 | 38 | 31.6 | 129 |
| SC630 | 4 | 37.6 | 148 |
| Type | Φ | D | d | L |
| SC(JGY)-1.5 | Φ4.2,Φ5.2 | 3.5 | 2.1 | 18 |
| SC(JGY)-1.5 | Φ4.2,Φ5.2,Φ6.2 | 4 | 2.6 | 19 |
| SC(JGY)-4 | Φ5.2,Φ6.2 | 4.8 | 3.4 | 21 |
| SC(JGY)-6 | Φ5.2,Φ6.2,Φ8.2 | 5.5 | 4.1 | 24 |
| SC(JGY)-10 | Φ6.2,Φ8.2 | 6.5 | 5.1 | 28 |
| SC(JGY)-16 | Φ6.2,Φ8.2,Φ10.5 | 8 | 6.4 | 33 |
| SC(JGY)-25 | 9 | 7 | 36 |
| SC(JGY)-35 | Φ6.2,Φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.5 | 42 |
| SC(JGY)-50 | Φ8.2,Φ10.5,Φ12.5 | 12 | 9.8 | 49 |
| SC(JGY)-70 | Φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.9 | 55 |
| SC(JGY)-95 | Φ10.5,Φ12.5 | 16 | 13 | 60 |
| SC(JGY)-120 | Φ12.5,Φ16.5 | 19 | 15.4 | 67 |
| SC(JGY)-150 | Φ12.5,Φ16.5 | 20.5 | 16.7 | 73 |
| SC(JGY)-185 | Φ16.5 | 23.5 | 19.3 | 78 |
| SC(JGY)-240 | 26 | 21.2 | 92 |
| SC(JGY)-300 | Φ16.5,Φ20.5 | 30 | 24 | 102 |
| SC(JGY)-400 | 34 | 27.6 | 113 |
| SC(JGY)-500 | 38 | 31.6 | 123 |
| SC(JGY)-630 | Φ20.5 | 45 | 37.6 | 145 |
