Sc/Upc Fast connector FTTX Sc/APC Quick Connector

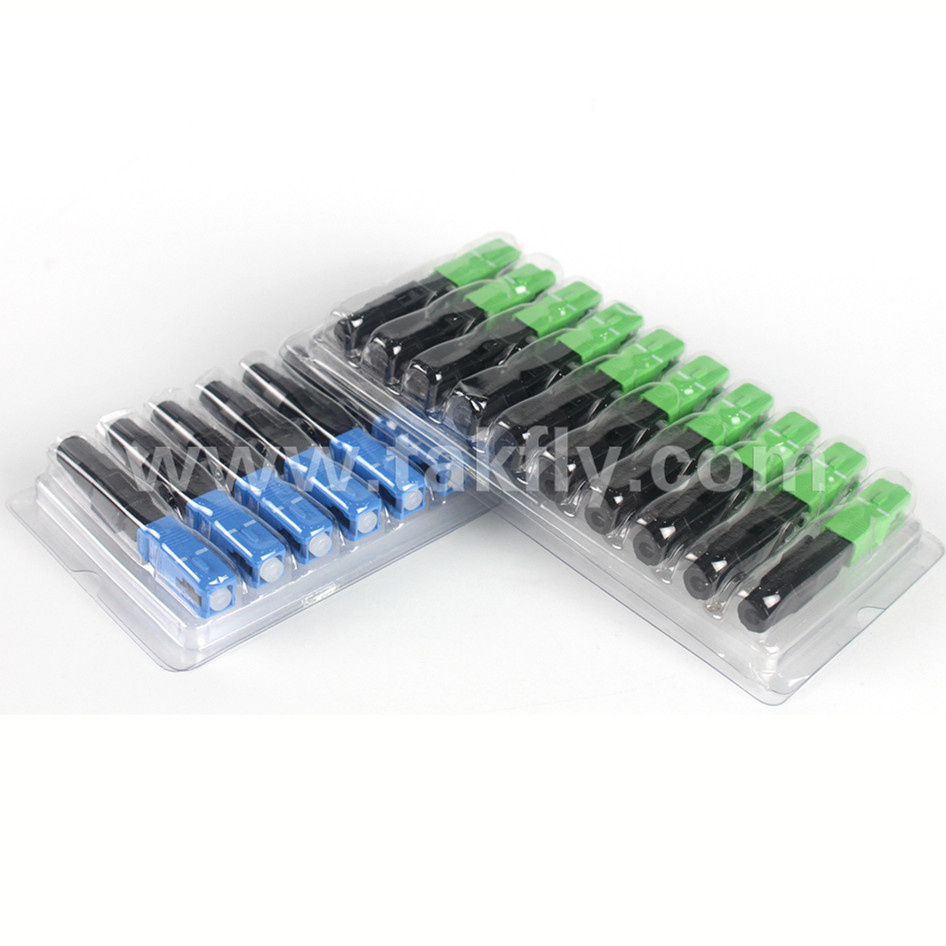

Name: Sc/Upc Fast connector FTTX Sc/APC Quick Connector
Brand: all-electronics-online.com
SKU: 706725792
Availability: InStock
Rating: 4.4 (93 reviews)

Price:	US $ 0.7/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC/APC-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe
Fiber Mode:	Single Mode
Insertion Loss:	0.25dB(1310nm-1625nm)
Type:	Sc Fast Connector
Lead Time:	2 to 3 Days
Poulishing Type:	APC and Upc
Fastening Streng:	>5 N
Fastening Strengt:	>10 N
Tensile Strength:	>50 N
Using Temperature:	-40~+75c
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC

Product Description

sc/upc Fast Conector FTTx Sc/APC quick Connector

High performance optical quick connection products with high quality and effective installation
Pressing position use newly special structure design, without infusion, grind and waste material.
Use embedded fiber type structure, ensuring the high installation quality, success rate and quick installation.
Can be reused, simple operation.Easy to carry.

Application:
FTTX
Telecommunication Network
WAN and LAN
Active Device Termination

Features:
Precision Mechanical
Easy installation
Low Insertion Loss
High Back Reflection Loss

Parameter	Unit	Value
Connector Type		SC LC FC
Applicable		3.0 x 2.0 mm Drop cable
Optical Fiber Diameter	μm	125 (657A&657B)
Tight Buffer Diameter	μm	250
Fiber Mode		Single Mode
Operation Time	s	About 15 (no fiber cut)
Insertion Loss	dB	≤0.25 (1310nm &1550nm)
Return Loss	dB	≥40
Fastening Strength of Naked Fiber	N	5
Fastening Strength of Naked Fiber Holder	N	10
Tensile Strength	N	50
Working Temperature	°C	-40 ~ +75
On-ling Tensile Strength(20N)	dB	IL≤0.2 RL≤5
Mechanical durability(500 times)	dB	IL≤0.2 RL≤5
Drop-off Test(drop-off height 4m,once per direction,totally 3 times)	dB	IL≤0.2 RL≤5

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
