Sc/Upc Fiber Optic Fast Connector for FTTH
| Price: |
US $ 0.02-1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
SC/UPC Fiber Optic Fast Connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Sc/Upc Optical Fiber Fast Connector |
| Application For: |
FTTH Drop Cable |
| Fiber: |
2.0*3.0 Gjxh |
| Tension: |
20n |
| Temperature: |
-40 - +85 |
| Type: |
Sc Upc Fiber Optic Fast Connector |
| Certification: |
CE, ISO |
| Condition: |
New |
| Connector Type: |
Sc/Upc |
Product Description
SC/UPC Fiber Optic Fast Connector for FTTH
SC/UPC Fiber Optic Fast Connector Feature
1.Optical Fiber Fast Connector/Optical Fiber Mechanical Connector
2.Insertion Loss ≤0.3dB
3. Return Loss ≥50dB
4.SC/UPC Type Connector
5.Suitable for FTTH Drop Cable.

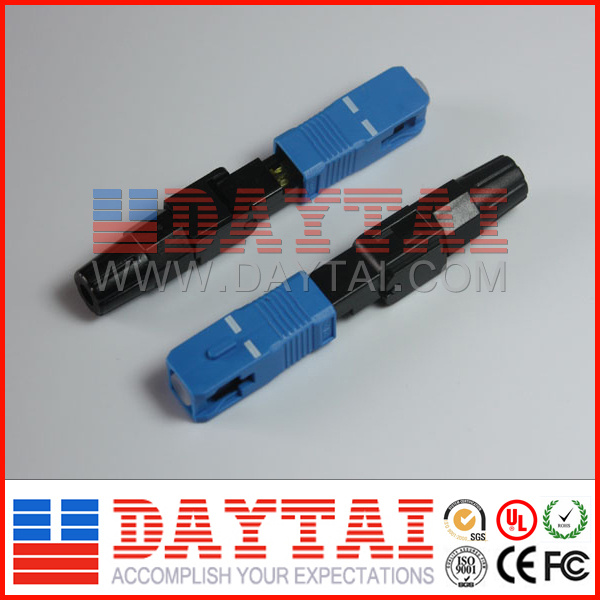

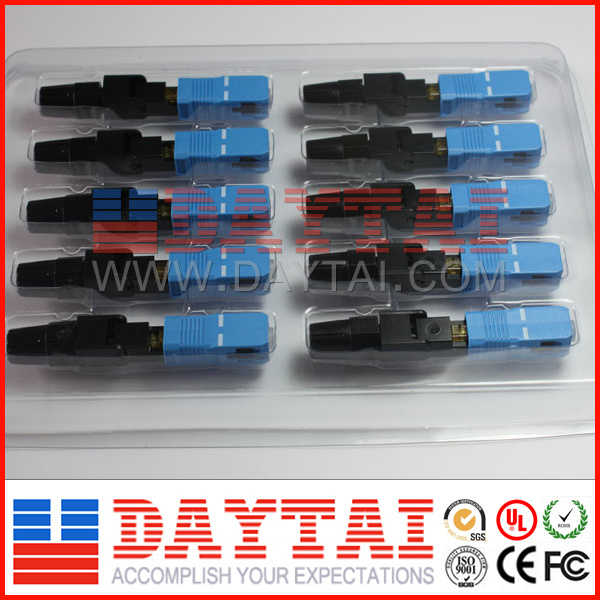

SC/UPC Fiber Optic Fast Connector Pictures:
SC/UPC Fiber Optic Fast Connector Analysis Specification
| Item | SC/UPC-C Optical Fiber Fast Connector |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Fiber | 2.0*3.0 GJXH |
| Tension | 20N |
| Temperature Alteration Ratio | ≤0.5dB(-40 ºC+85ºC) |
| Temperature | -40ºC+85ºC |
SC/UPC Fiber Optic Fast Connector Operation Tool
1.Optical Fiber Cutting
2.Covered Wire Stripping Clamp
3.Length Fixed Instrument
4.Wire Stripper
SC/UPC Fiber Optic Fast Connector Operating Dimension
SC/UPC Fiber Optic Fast Connector Operation Steps:
Note: Following Steps must ensure the cleanliness of product and fiber.
1.Remove the Parts and arrange them in neal row.
2.Penetrate the screw cap through the covered wire cable.
3.Stripe the covered wire, stripped length 50mm.
4.Stripe fiber coating , keep 21mm.
5.Cut out the excess fiber.
6.Fiber length after cut out.
7.Penetrate the fiber, let it a bit bending.
8.Keep fiber bending, and lock the lock catch.
9.Put down tail clip, tighten screw cap, and install the housing.
SC/UPC Fiber Optic Fast Connector Re-open
1.Remove the housing ,pull down lock catch.
2.Pull down screw cap, pull out the covered wire, and re-assembly.
