| Prod Model: |
SC OM3 Pigtail |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket Color: |
Blue |
| Fibers: |
1 |
| Diameter: |
0.7-0.9mm |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Sc/Upc |
| Sheath Material: |
LSZH |
Product Description

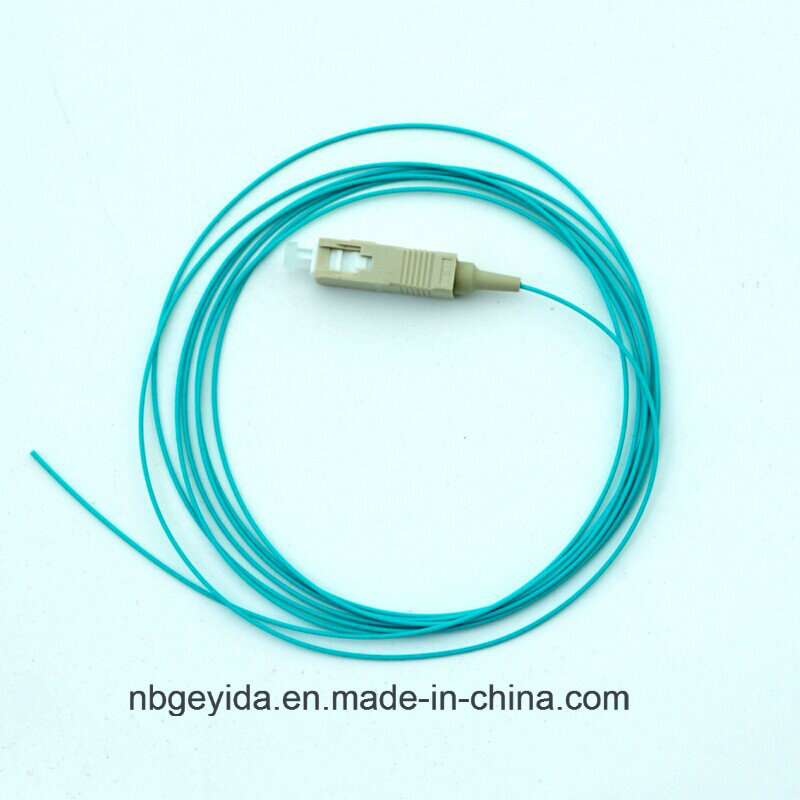

SC OM3 Pigtail Patch cord /UL
Singlemode Pigtails are used in telecom, datacom networks and also used for high speed metropolitan and access network. The Singlemode Pigtail buffer conforms to IEC, EIA TIA and Telcordia standards. The Singlemode Pigtails are terminated with standard Enyoo Connectors which gives optimum optical performance
Applications
1.FTTH (Fiber To The Home)
2.Optical fiber data communication
3.Optical fiber access networks
4.Optical fiber communications system
5.Telecommunications
6.CATV, LAN, MAN, WAN, Test &Measurement
7.Military industry
8.Medical
SC, LC, ST, FC and E2000 Connectors
UPC and APC Connectors
Low smoke zero halogen (LSZH) buffer
900μ M tight buffer or easy strip structure
OS1/OS2 fibre conforms to ITU-G652. D, TIA/EIA 492 CAAA
OS1/OS2 bend insensitive conforms to ITU-G657. A
Different connector performance range for specific application
Available in standard white colour buffer and also in standard 12 colours as per IEC 60304
Available in standard and blister packing
Applications
Telecom and datacom application
Patch panels, wall boxes, ODFs and splice cassettes
Easy strip Pigtails for on site installation
Supports high speed multi channel video, data and voice services in metropolitan and access networks
ATM, SONET and WDM
Specification
| Mode | Single mode | Multimode |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB |
| Salt Spray | ≤0.1dB |
| Repeatability | ≤0.1dB (1000 times) |
| Vibration | ≤0.2dB (550Hz 1.5mm) |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
| Apex Offset | 0μm ~ 50μm |
| Radius of Curvature | 7mm ~ 25mm |
| Standards-Compliant | ROHS,IEC and GR-326 |
| Fiber cable performance specifications | |
| Fiber type | Min.Bandwidth | Distance | attenuation | |
| 62.5/125 | 850/1300nm
200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm
3.0/1.0dB/km | |
| 50/125 | 850/1300nm
500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm
3.0/1.0dB/km | |
50/125
10Gig Optimized | 850/1300nm
2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm
3.0/1.0dB/km | |
| 9/125 | 1310/1550nm
Approx 100 Terahertz | Up to 100km Varies by transceiver | 1310/1550nm
0.4/0.3dB/km | |
| Fiber type | Single mode:
1,9/125-G652D
2,9/125-G655
3,9/125-G657 |
Multimode:
4,50/125-OM2
5,62.5/125-OM1
6,50/125-OM3 |
| Fiber | Corning,China Fiber,other |
| Connector1 | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
| Connector2 | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm,1.8mm 3.0mm |
| Cable jacket | PVC,LSZH,OFNR,OFNP |
| length(M) | 0.5m,1m,3M,5m,10m,20m,200m |
