Prod Model: |
Fiber optic adapter |
Item Name: |
Sc Upc Fiber Optic Adapter |
Keywords: |
Sc Upc Adapter/Fiber Optic Adapter |
Polish Interface: |
0.2dB |
Temperature: |
-40-85 |
Usage: |
End of ONU |
Customized: |
Available |
Transmission Medium: |
Single-Mode |
Structure: |
SC |
Number Of Cores: |
Single-Core |
Ferrule Endface: |
PC(',UPC) |
Product Description

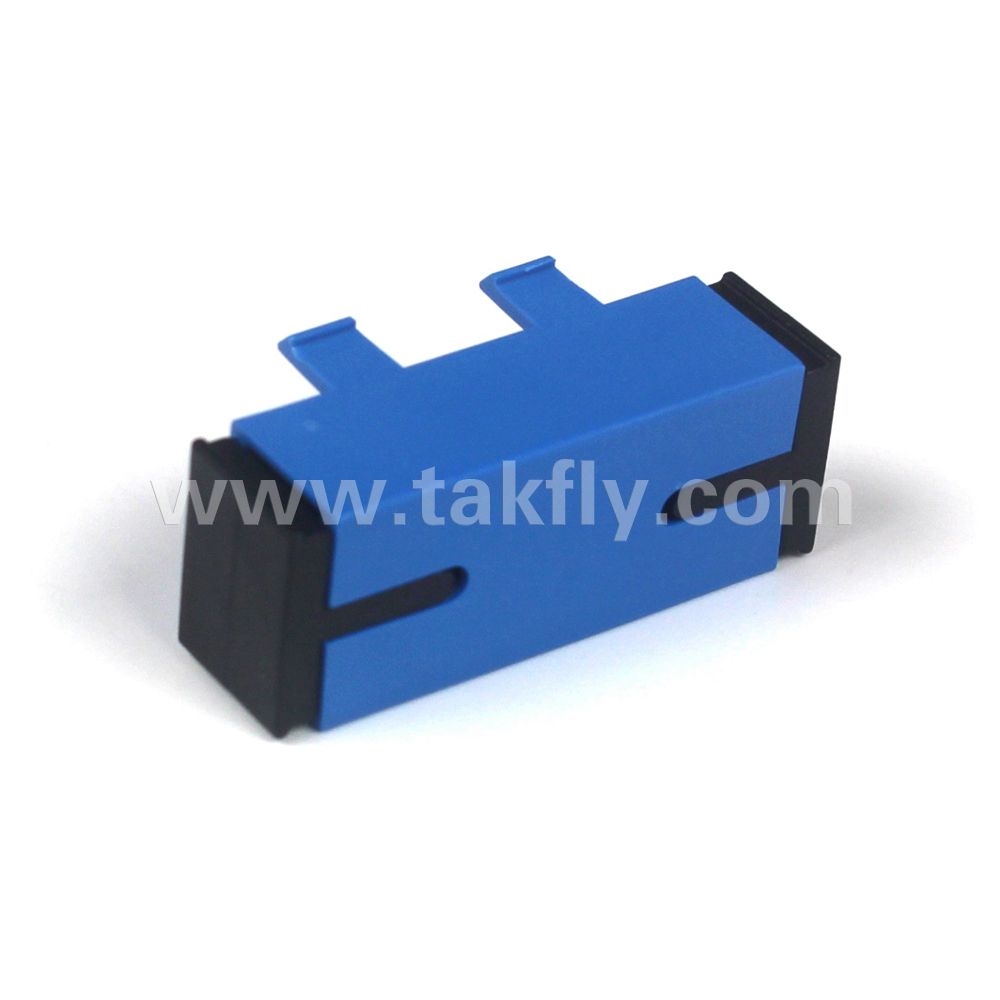

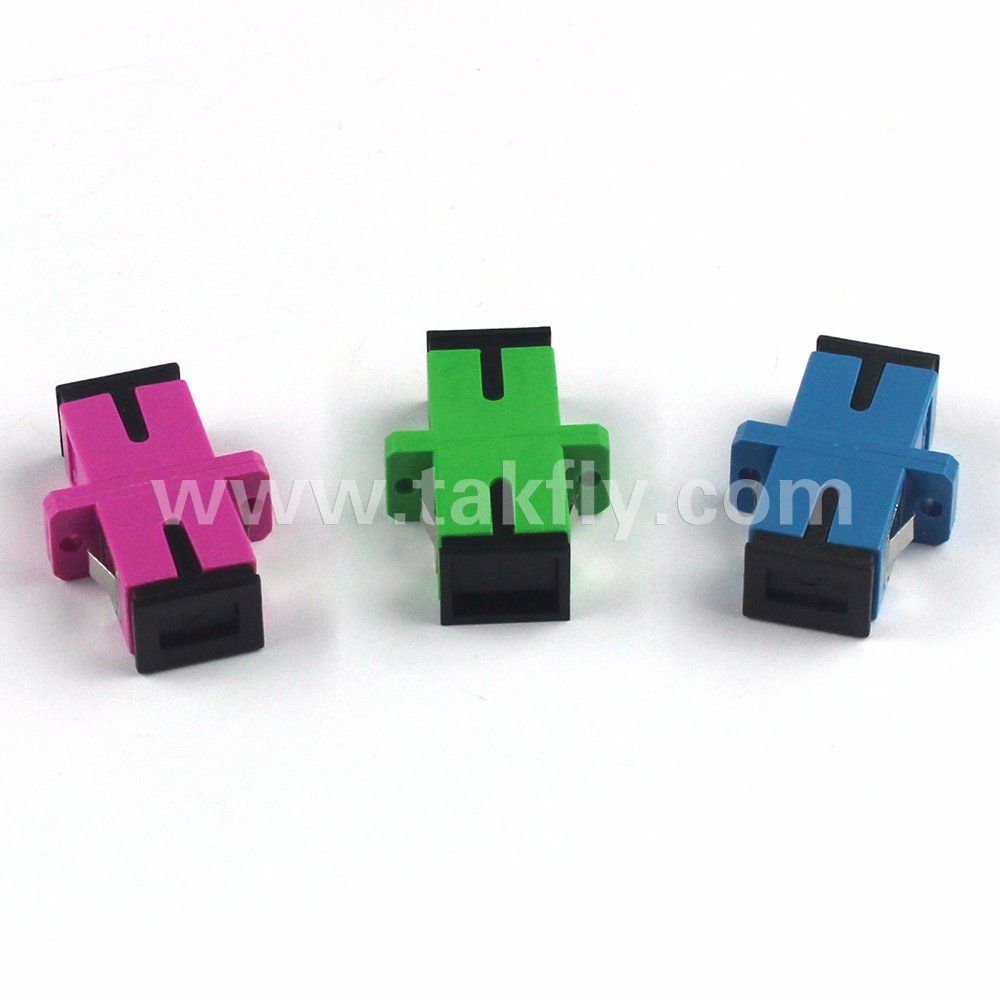

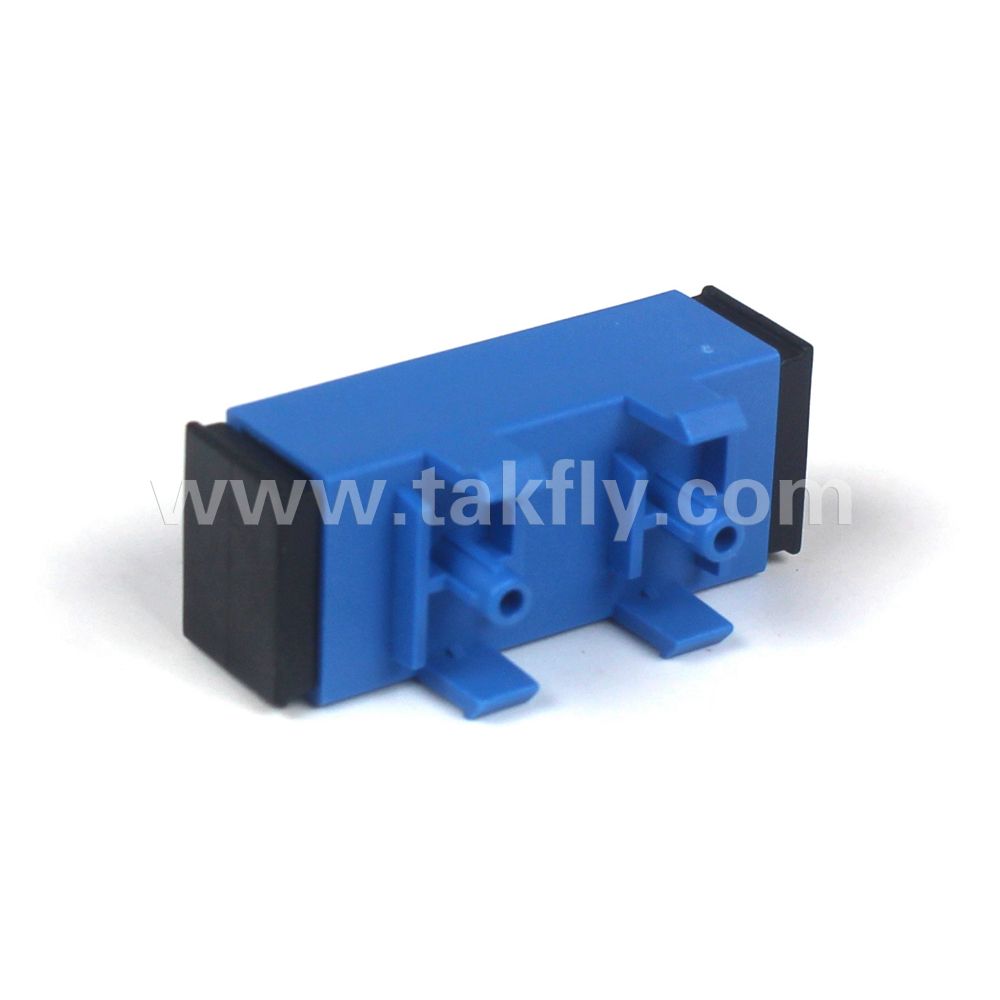

SC UPC PC fiber optic adapter for OnuSC UPC Fiber optic adapters is also called mating sleeves, which are used to connect optical connectors of same type, such as FC, SC and ST. Optical adapters are widely uses in light distribution frame(ODF), the optical fiber communications equipment, the measuring appliance and so on.

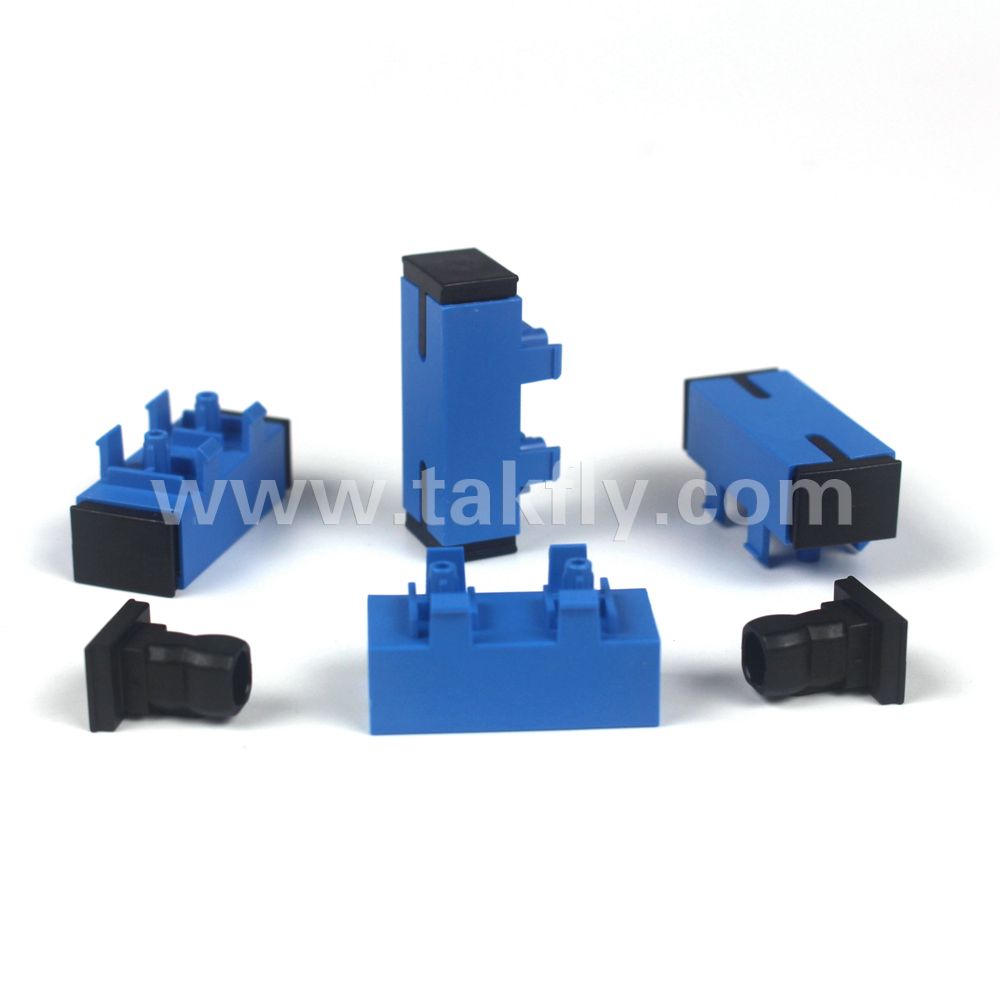

The optical adapter connects fiber transmission by its placket tube. We offer various shapes of high-performance adapters to ensure maximum connectivity between the fiber jumper. In order to fix a variety of board level, our company designed various sophisticated fixed flange.

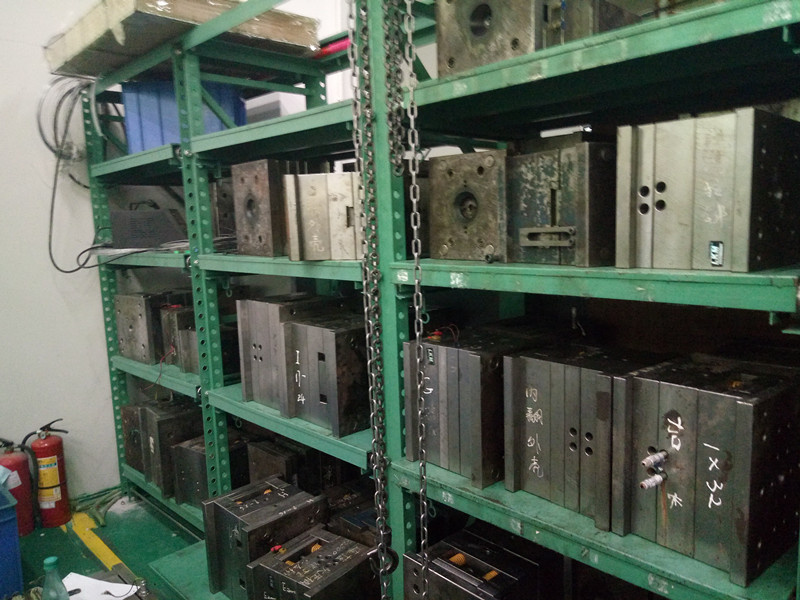

Factory viewTakfly Communications Co.,Ltd is the high-tech manufacturering enterprise,which is established in 2000,and specialized in optical fiber transmission equipments,security surveilance monitoring equipment combined with researching developing,production,sales and services.Takfly mainly produce digital video transceiver,audio transceiver,internet transceiver,alarm transceiver,ethernet optical media converter,10M media converter,100M media converteres,1000M media converters,10/100M media converter,10/100/1000M media converter,business class of media converter,industrial telecom media converters and some other surveillance data communication products.Which are widely apply to metropolitan network access network,fiber to home network,electric power,education,army,safety city and some other important system
Takfly Strictly follow the ISO9001 quality management system,adopt advanced production technology,equipped with high standard,product passed CE,FCC,3C's certification,obtain the telecommunication equipment access network certification by national information industry.And qualified with inspection report from the ministry of public securityand police electronic quality testing.OEM or customized is available.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world.To be the super leaderof the optical communications scopes in China is the goal of Takfly.In the next five years.Takfly will keep the strategic pattern of development-"Based in south of China,penetrate into whole country,extend over the world".

Features:- Single mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Available without flanges or with flange for duplex, saving panel space
- SC2 8Port high density for patch panel mount applications
- Meet JIS5974 and bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Application:- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH


SpecProduct | SC Adapter |
Mode | S.M(Zroz) | M.M(P.B) |
Insertion Loss | ≤0.2dB | ≤0.3dB |
Return Loss | ≥45dB | -- |
Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB |
Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Return Loss Variability<5dB |
Operating Temperature | -40ºC~+85ºC |
Storage Temperature | -40ºC~+85ºC |
About payment & delivery
About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available
Would you like some sc upc fiber optic adapter for sample,please leave me an inquiry or contact me directly.
