Sc Upc Sc APC Sm Fiber Optic Splice on Connector Soc for FTTH Drop Cable
| Price: |
US $ 0.2-1.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
P/N: FLK-SOC-SA01 |
| Features: |
Low Insertion Loss,High Return Loss |
| Insertion Loss: |
More Than or Equal to 55dB |
| Insert-Pull Test: |
1000times Less Than or Equal to 0.20dB |
| Operating Temperature: |
-40 -+75c |
| Suitable Fiber: |
PC (9/125) |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
Product Description

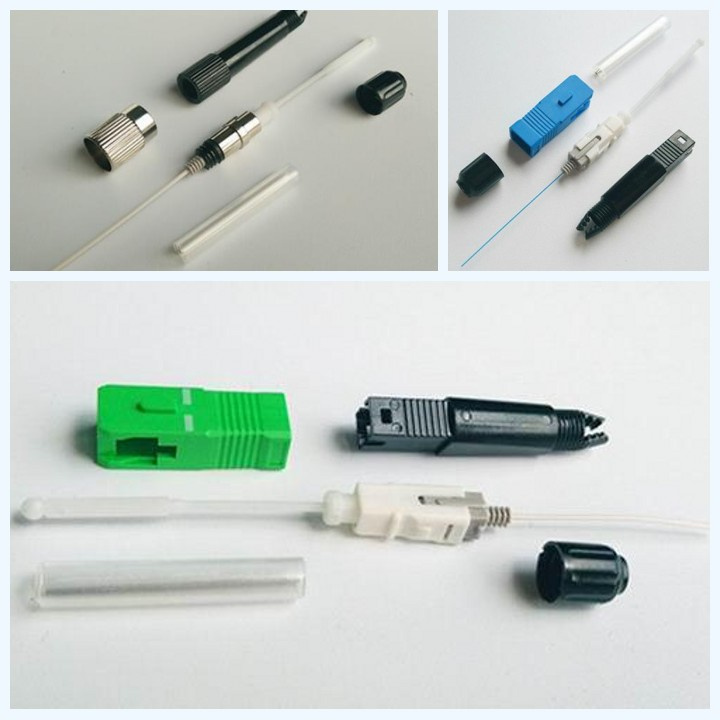

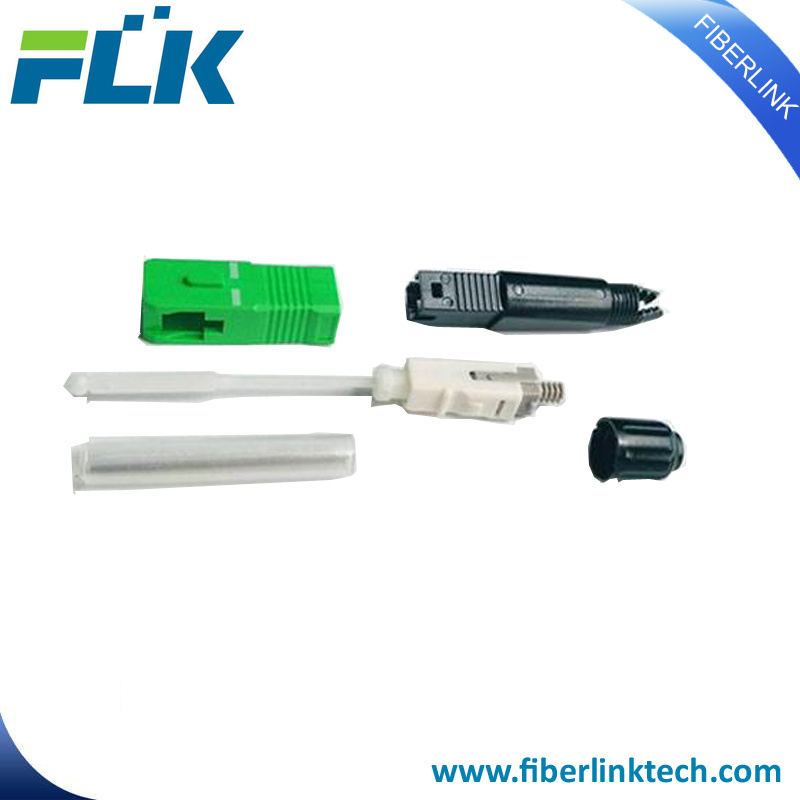

SC UPC SC APC SM Fiber Optic Splice On Connector SOC for FTTH drop cable
Fusion splice-on connector (SOC) is optical fiber type quick connector, which used for splicing point inside the connector end, equivalently eliminate the pigtails when splicing. The advantage is no need additional protection after splice, such as splice tray, splice closure, distribution box. In contract to the design of mechanical splice connector, it save V-groove mechanical connector maintenance and operation cost and durable, which overturns the concept that high cost of splice machine and do not apply to FTTH construction.
Features
Field-termination connector with no epoxy or polishing required No matching gel enables low reflection and high reliability
Splicing point is inside of the connector. No additional splicing work required Easily assembled with one-touch, push-pull system
Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc
The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken
The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability SM compliance to GR-326-CORE
MM compliance to TIA/EIA568C.3
Applications
CATV & FTTH
Optical Distribution Frame
Optical Network Equipment
Central office connector replacement | Specifications | | |
| | | |
| Item | Fusion Splice-on Connector | |
| Cable | 250um, 900um, 2.0mm, 3.0mm fiber cable or 3.1*2.0mm drop cable | |
| Fiber type | Single mode, G652D, G657.A2 | |
| Tight buffer diameter | 250um | |
| Ferrule Type | All Zirconica Pre-Polished Ferrules | |
| Insertion loss | ≤0.3dB (Typical) | |
| Return loss | UPC ≥50dB, APC≥60dB | |
| Bare fiber solid tightness | 250g | |
| Working temperature | -40ºC-+80ºC | |
| Tensile strength | 60N(5kgs for 2mins) | |
| Comply with Standard | TELCORDIA GR-326-CORE & TELCORDIA GR-1081-CORE | |
Related products
Our fiber patch cord production line:

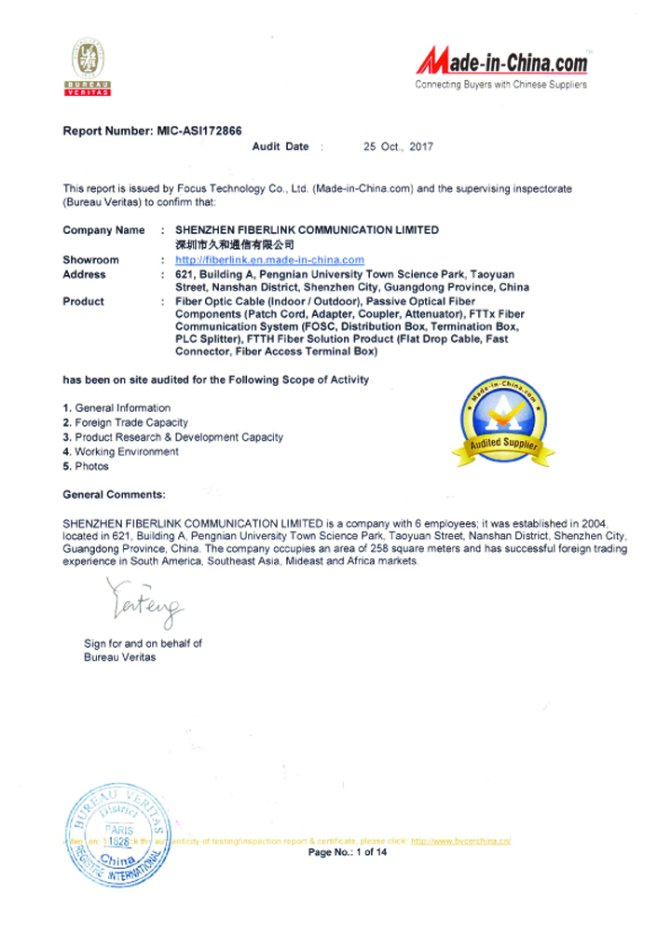

Certifications
