| Prod Model: |
SC Fast Connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keyword: |
Sc/Upc Fast Connector |
| Connecter Type: |
Sc |
| Cable Type: |
0.9mm,2.0mm,3.0mm |
| Insertion Loss: |
Less Than 0.5dB |
| Return Loss: |
More Than 55dB |
| Warranty Time: |
18 Months |
| Place Of Origin: |
Shenzhen,China(Mainland) |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description
Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap. Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical connector maintenance and can improve the span life of welding point of connector and reduce maintenance cost.
Takfly's Splicer-On Connector allows quick, easy, reliable and customizable permanent field terminations without getting short, excess slack, and logistic delays of pre-terminated cables. It is also ideal for central office, fiber hub/pedestal, and data center applications offering prompt extensions, changes, repairs, and restoration for minimal downtime. It adjusts the length of fibers in the field, and does not require to organize the fibers. It provides high quality of stable connectivity.

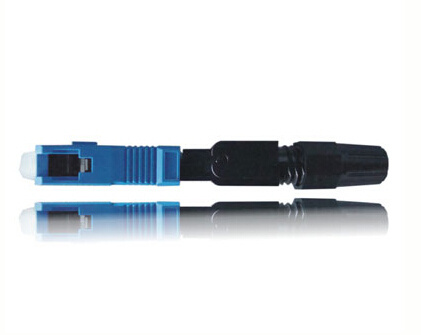

SC/UPC Single-mode Fusion Splice Fiber optical Fast/Quick Connector
Features
Field-termination connector with no epoxy or polishing requiredNo matching gel enables low reflection and high reliabilitySplicing point is inside of the connector. No additional splicing work requiredEasily assembled with one-touch, push-pull systemUsed for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etcThe fusion splice position can be protected by the heat shrinkable tube inside, not easy broken100% qualified, prolong use life, reduce the Maintenance costThe operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability
SC/UPC Single-mode Fusion Splice Fiber optical Fast/Quick Connector
Applications
Fiber optic equipmentFiber optic communication systemFTTH optic fiber terminal connectionOptical access networkFiber optic data transmissionCATVCentral office connector replacementData center installation
SC/UPC Single-mode Fusion Splice Fiber optical Fast/Quick Connector
Specification:
| Item | Parameter |
| Insertion Loss | ≤0.5dB |
| Return Loss | ≥55dB(UPC) |
| Repeatability | ≤0.1dB |
| Interchangeability | ≤0.2dB |
| Tensile Strength | ≥34.3N(≥3.5kgf) for 0.9mm Fiber
≥60N(6.1Kgf) for 2.0, 3.0mm |
| Operating Temperature | -40°C~+85°C |
If you have any question or want to know more, Welcome to contact us !
