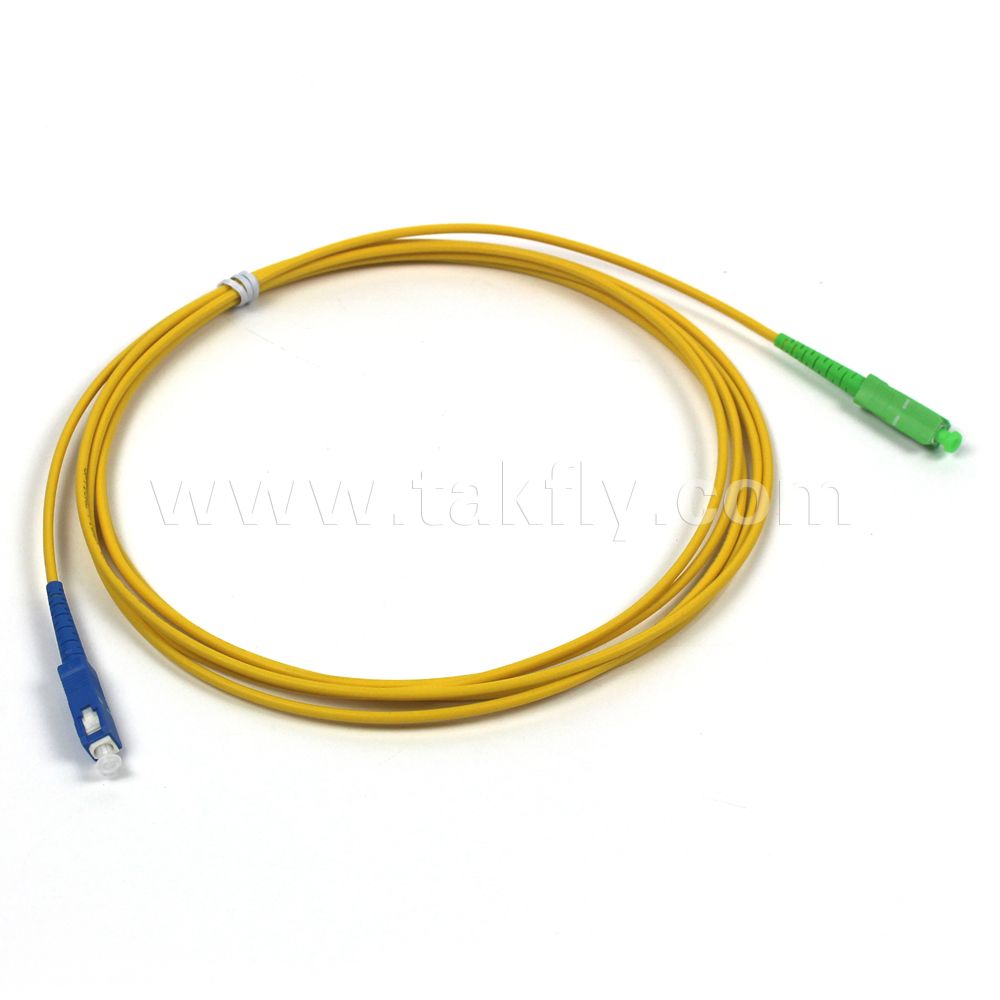

Sc/Upc to Sc/APC Single Mode Fiber Optic Patch Cord

Name: Sc/Upc to Sc/APC Single Mode Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 797054595
Availability: InStock
Rating: 4.5 (94 reviews)

Price:	US $ 0.75/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Sc Single Mode Fiber Patch Cord
Connector Type Avalible:	Sc, FC, St, LC. MPO, E2000 and So on.
Polish:	PC, Upc, APC
Warranty:	5 Years
Color:	Customized
Delivery Time:	3-5 Days
Insertion Loss:	Less Than 1 dB
Return Loss:	More Than 55dB
Sample:	Available
Fiber Connector Type:	Sc/St/FC/LC
Fiber Diameter:	0.9/2.0/3.0mm
Application:	Communication
Connection Structure:	SC
Certification:	CE
Type:	Single Mode Fiber Optic Patch Cord
Sheath Material:	PVC or LSZH

Product Description

SC Single Mode Fiber Patch Cord

Features:

1.Type SC Fiber Optic Patchcord and Pigtail
2. Single mode and Multimode PC or 8 degree APC 9 degree APC
3. Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 Core
4. Custom order length
5. Cable color green, yellow, orange or Customized Designs
6. Cable PVC, Hytrel, LSZH,OFNP, OFNR
7. All parts compliant with ROHS
8. IEC standard compatible
9. GR-326-CORE Compliant

Application:

1.Telecommunication
2. CATV
3. LAN & WAN
4. Network
5. Broadband
6. FTTH

Parameter:

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.15dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40ºC~+75ºC
Storage Temperature		-40ºC~+75ºC

Order Information:

CODE	CONNECTOR	CABLE SIZE	FIBER TYPE	CABLE TYPE	FIGURE
H02	1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex	1. 0.9 2. 2.0 3. 3.0	1.9/125 2.OM3 3.50/125 4.62.5/125	1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH	1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black
