SC9/10 Series Dry-type Distribution Transformer

Name: SC9/10 Series Dry-type Distribution Transformer
Brand: all-electronics-online.com
SKU: 618818652
Availability: InStock
Rating: 4.7 (127 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC9 SC10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	11kv
Rated Capacity:	30kv---25000kVA
Connection Method:	Dyn11 or Yyn0
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Brand:	Powlik

Product Description

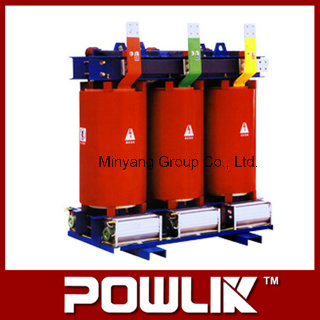

SC9/10 Series Dry-type Distribution Transformer

According to the market demand for low-loss energy-saving 10KV three-phase Resin Dry-Type Transformer, our company independently developed 10KV, 30 ~ 25000kVA.
In order to improve the reliability of products, the existing mature technology is adopted in the design, the core material adopts 30Q110 high-quality cold-rolled silicon steel sheet, 45 degree oblique three joint structure, core pillar adopts binding band, iron yoke is a through pulling plate structure, in order to reduce the loss.
The core coated with F rust-proof resin paint and the imported SIGNODE - special binding belt in order to enhance the core strength, lower the noise, clamps is made of steel. High voltage winding is segmented layered structure, composed of double glass fiber-covered wire winded, inner surface using glass fiber grid cloth as the framework, and the vacuum pressure of resin casting condition, the impact of voltage winding can bear 75KV. 35KV power frequency withstands voltage, partial discharge in 5PC. Low voltage winding for foil type structure, composed of copper foil winding, vacuum casting, the winding has good short circuit characteristics and overload capacity. High and low pressure both using class F insulation material.

Rated Capacity (KVA)	Voltage Group(KV)			Connection Method	Dissipation(KW)		No-load Current (%)	Impedance Voltage (%)	Insulating Level	Weight(KG)
Rated Capacity (KVA)	High-voltage	Tapping range of HV	Low-voltage	Connection Method	No-load	Load(145C)	No-load Current (%)	Impedance Voltage (%)	Insulating Level	Weight(KG)
100	6 6.3 6.6 10 10.5 11	±5% or ±2*2.5%	0.4	Dyn11 or Yyn0	0.4	1.88	2.4	4.0	H/H	520
125					0.48	2.13	2.0			650
160					0.56	2.55	1.8			740
200					0.62	3.10	1.8			850
250					0.72	3.60	1.8			1005
315					0.88	4.60	1.8			1270
400					0.97	5.40	1.8			1465
500					1.16	6.60	1.8			1730
630					1.35	7.90	1.6	6.0		1840
800					1.52	9.50	1.6			2170
1000					1.76	11.40	1.3			2390
1250					2.08	12.50	1.3			2990
1600					2.44	13.90	1.3			3830
2000					3.32	17.50	1.2			4380
2500					4	20.30	1.2			4930

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
