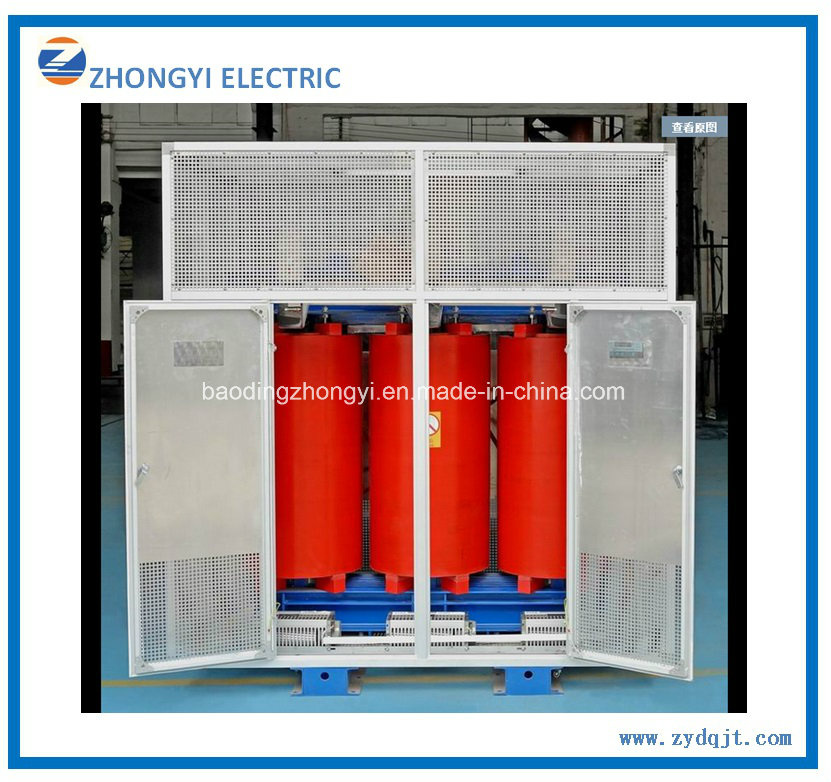

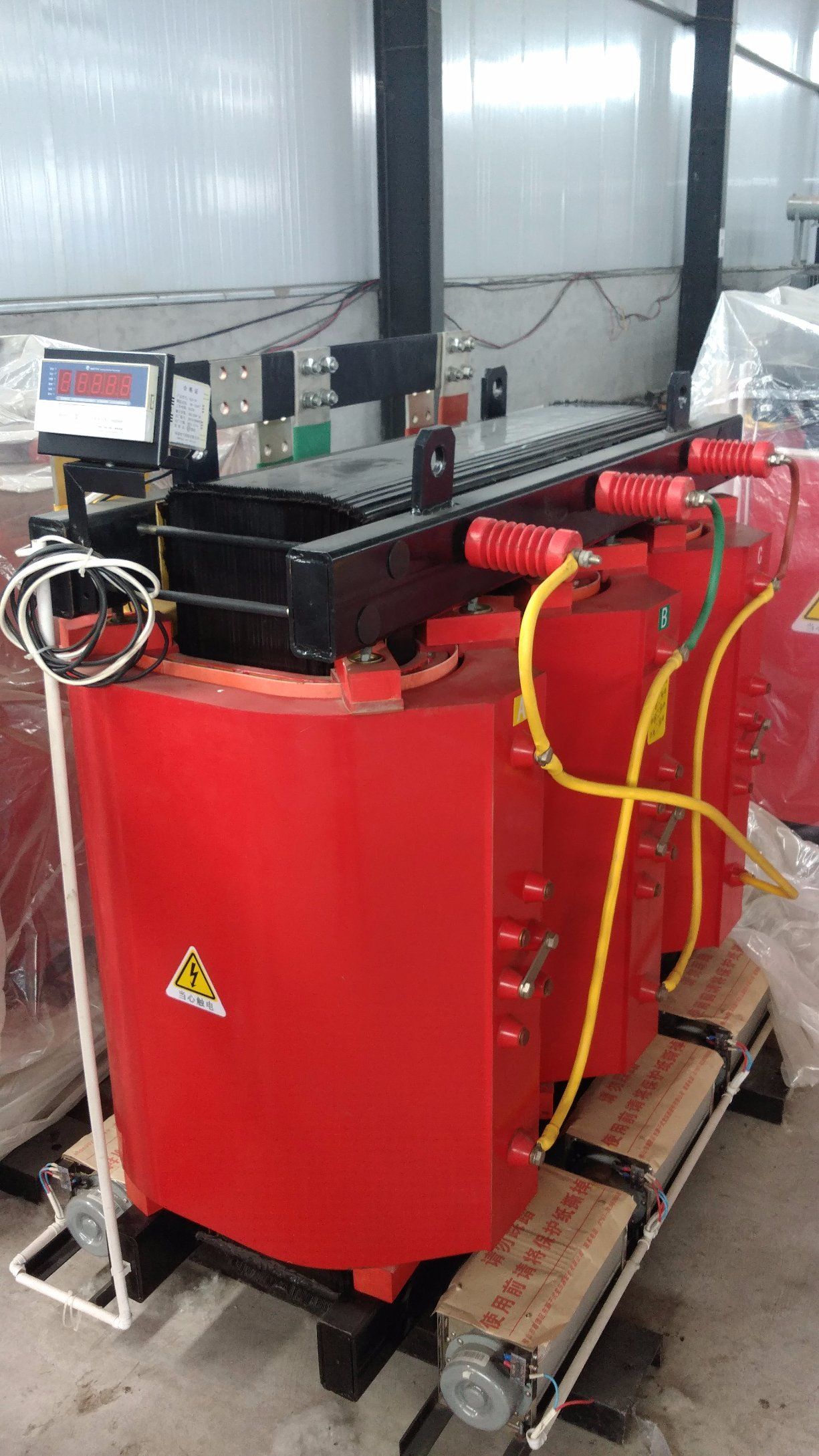

Scb 10 315kVA 10kv Resin-Insulated Dry Type Power Transformer
| Price: |
US $ 8000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SC(B)10 |
| Rated Capacity: |
30kVA-2500kVA |
| Frequency: |
50Hz or 60 Hz |
| High Voltage: |
10kv |
| Low Voltage: |
0.4kv |
| Load Loss: |
3470W |
| Noload Loss: |
880W |
| Winding Material: |
Copper/Alumnium Winding |
| Iron Core: |
New Grain Oriented Silicon Steel Shee |
| Vector Group: |
Dyn11 or Yyn0 or Others |
| Coil Number: |
Autotransformer |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description
Product Description
Low losses, low noise level, maintenance free, easy installation and obvious low operation cost.Features
1. Safe,hardly inflammable and no pollution for environment protection.
|
2. Germany HTT technology in Power Transformer manufacturing.
|
3. Low losses, low noise level, maintenance free, easy installation and obvious low operation cost.
|
4. Better dissipation of heat, the transformer can operate up to 150% of its rated load under air-forced cooling condition.
|
5. Highly moisture-proof ability.
|
6. Temperature protection and surveillance system is avaliable to assure safe and reliable service of Power Transformer.
|
Packing & Delivery
Packaging Details:
1. Conventional packaging
a. Wooden box
b. Iron shelf
2. Special packaging: According to customer's requirement

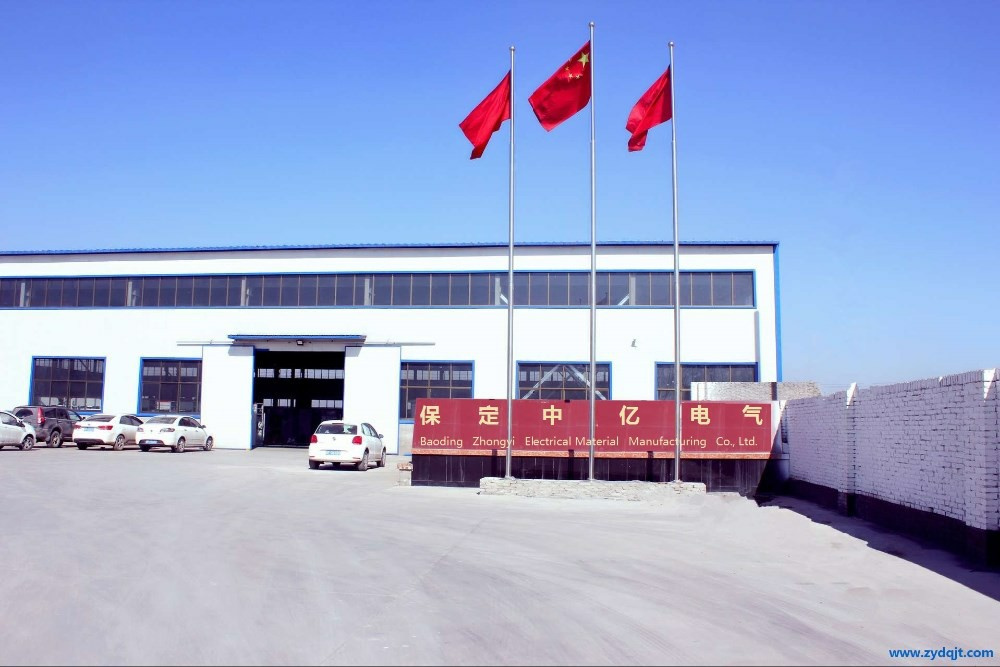

Our company
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards. |
certifications
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
