Scb11 Series 10kv Grade Epoxy Dry-Type Transformers
| Price: |
US $ 1500-100000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SCB11 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Powertech |
Product Description

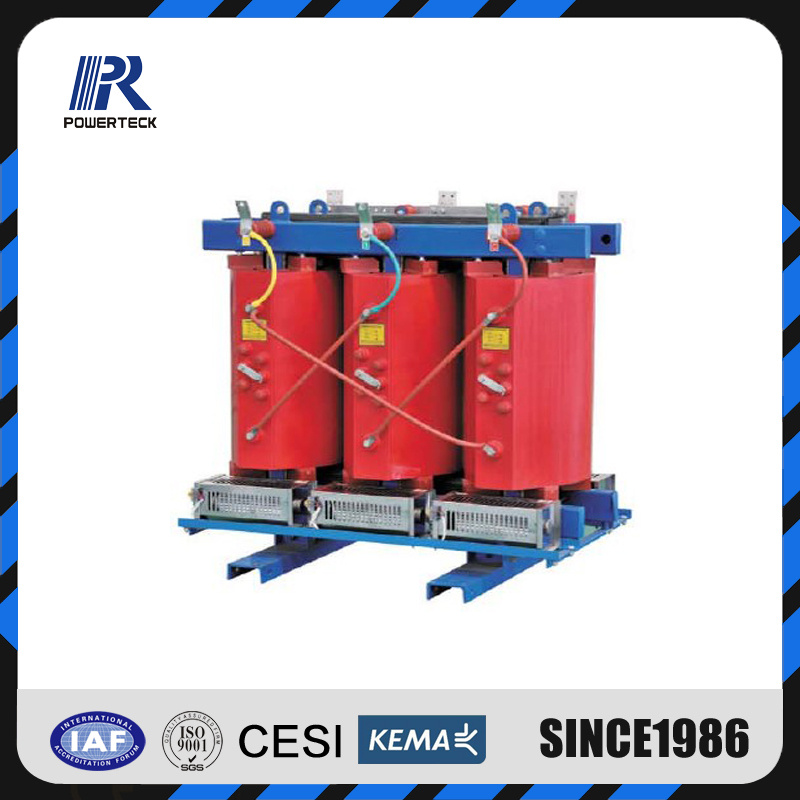

SCB11 series 10KV grade epoxy dry-type transformers
Features
With the advanced technology brought in from overseas, we developed SC10, SCB10 series padding thin-insulation dry-type distributing transformer whose winding is sealed up with epoxy, therefore theresin insulating dry-type transformer is flame-retardant, explosion-proof, free from maintenance and pollution, and it is compacted and can go deep into load center. Besides with scientific and reasonable design and coating craftwork, it has advantages of low partial discharge capacity. low noise, good heat dispersion and it can run over a long time with 140% rated load in the circumstance of cold wind. It applies intelligent thermal controller and has the functions that it will alarm when is fault or the temperature is exceeded and switch off as well as the function of "black box". It can be monitored and controlled by connecting it to the computer through its Rs485 serial interface.
Therefore, it is widely used in the places such as hotel, restaurant, airport, power plant, hospital, skyscraper, shopping center, and residential areas and other adverse environments like subways, smelt and power plant, ship, offshore drilling platform,etc.
Iron core
1.The iron core is made of high-quality cold silicon steel, with the structure of 45 degree miter joints, the core column is banded up by insulated tape. Core surface sealed with insulated resin is moisture-proof and anti-rust. 2.In addition, we developed multi-step core stacking technology. The core is automatically stacked by cutting line, which effectively reduce the load loss, current loss and the noise.
High-voltage winding
High-voltage winding applies vacuum pouring of padding epoxy resin which, at high level, reduces partialdischarge capacity and elevates the electric strength of coil.the inside and outside of the winding is build up with glass fiber mesh strengthens the mechanical robustness and improves the resistance of short-circuits and ensure the coils will never crack.
low-voltage winding
Low -voltage winding applies the structure that winded by copper foil which solves the problem that axle would point to the helix angle when winds and make the ampere-turn of winding distribute evenly. Meanwhile, the coil applies axial fan which improves the cooling. Between the layers of winding.
It applies DMD epoxy resin preliminary dip cloth and makes it capability cured.
Production technology
The coil can be wound on the high-accuracy winding machine, the low-winding is made by cooper foil, to cast grass fiber around the external and internal of the windings, there designed to be armed by air passage for transformer of large capacity. Afterward, in vacuum dry it. The whole casting and solidifying process completely according to the craft request. The precise process ensure free bubble and free hole of winding. Make the transformer running at the best result.
Temperature control system and air cooling system
It applies crosscurrent top-blow cooling fan which has characteristics of low noise, high wind pressure and good looking, etc. the fan improves the overload capability of the transformer. The intelligent thermal controller improves the reliability of the operation of the transformer.
Transformer protection shell
The shell makes further protection for the transformer. For users option, the grade of protection has IP20,IP23,etc. And the material has sort of cold-rilled steel plates and stainless steel plates, etc. The low-voltage outgoing line can adopt the method of standard busbar outgoing line. Outgoing on the transverse side and upper part as well as the very method that designed by the users.
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE POWERTECH:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
