| Prod Model: |
SCB8 |
| Quality Assurance: |
Two Years |
| Magnetic Tripping Characteristics: |
1A-125A |
| Breaking Current: |
6ka-10ka |
| Rated Voltage Ue: |
230/400V 1p, 400V 2p,3p,4p |
| Rated Frequency: |
50Hz/60Hz |
| Pollution Degree: |
IP22 |
| Typ E: |
Scb8-125 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
TUV, SAA,IEC |
| Poles Number: |
1p,2p,3p,4p |
Product Description

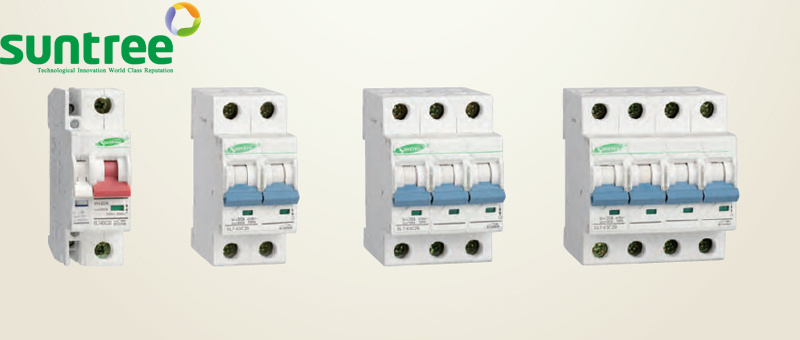

SCB8Series Mini Circuit breaker with 1P, 2P, 3P, 4P 1A to 125A has passed CE, RoHS
Mini circuit breaker is applicable to electric circuits with rated voltage 230V/400V AC, Frequency 50/60Hz and rated current up to 125AMP. The product provides protection against overload and short circuit to electric circuits and equipments in household and commercial installation. MCB is also used as Non-frequent changeover of electric circuits.
Function of Mini circuit breaker:
VisiSafe: For safe operation and maintenance work on circuits.
Class-2 insulation: Continuous safety for operators and unqualified personnel.
VisiTrip: Detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time.
Add-on fully immune earth leakage protection devices: Better continuity of service.
| Type | SCB8-125 |
| Nominal current | 1 to 125 A |
| Breaking capacity | 6kA,10kA |
| tripping curves | B, C, D |
| Compliance with standards | GB14048.2 IEC60947-2 |
| Operating voltage | up to 400 V AC |
| Strip times | 20000 |
| shelf life | 2 years |
FAQ:
Q: What's your warranty ?
A: Two years
Q: How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies.
Have cooperation with LS, EKF the world-class companies.
Our company over 500 employees, products pass
CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare,
then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=500pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by made-in-china,
or send us by email, we will reply within 24hrs.
Thank you & Now pls send your inquiry ! ^!^
Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.
We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
