School Bus Fleet Management GPS Tracker Vt1000

School Bus Fleet Management GPS Tracker Vt1000
Price: US $ 62-70/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: VT1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Is Customized: Yes
Free Tracking Software: Yes
Fuel Sensor: Yes
Two Way Talking: Yes
Temperature Sensor: Yes
Ota: Yes
RFID Driver Identification (RFID Alarm): Yes
RS232: Yes
Size (mm): 130*80*28
Input Voltage (V DC): 9 ~ 36

Product Description

School Bus Fleet Management GPS Tracker Vt1000




- OVERVIEW:

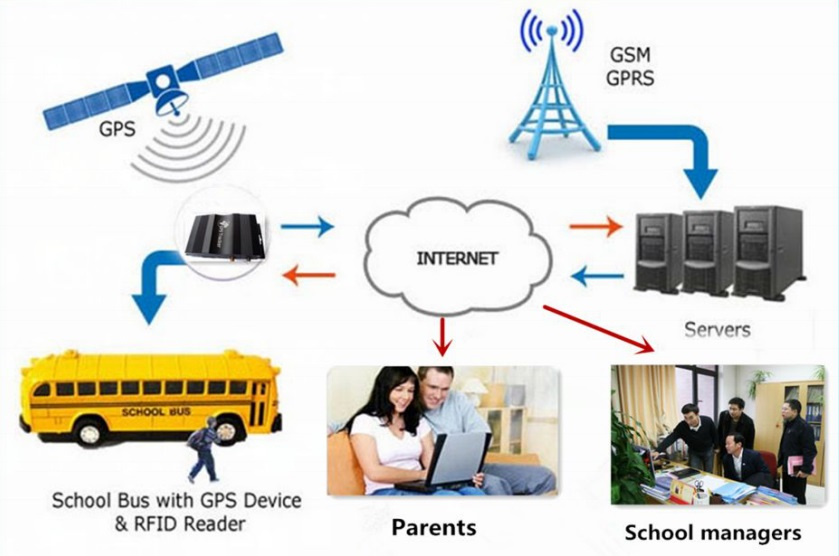

The SBMS system is used to monitor the student's regularity in school bus. It will help the parents to
monitor their children through GPS and SMS function from home.



- WORKING FUNCTIONALITY:
1. When the bus is coming near the student's home it will sends a SMS to the parents such as, "School Bus at Kottivakkam".
2. Once the student enters the bus and he/she swipes their card it will send the SMS to the parent such as, "Your child has entered the bus".
3. After the bus reaches the school, the student swipes his/her card and it will send a SMS to the parent such as, "Your child has reached successfully".
4. After finishing school, the student swipes his/her card while entering the school bus it will send a SMS to the parent such as, "Your child has entered the bus".
5. When the bus is coming near the student's home it will sends a SMS to the parents such as, "School Bus at Thiruvanmaiyur".
6. If the bus stands idle for a long time then a SMS will be sent to alert the parents.



- ADVANTAGES:
1. Parents will be assured that their children reach school and home safely.
2. It will be helpful to the parents by knowing the time when to get ready to pick and drop their kids.
3. It reduces the tension for the parents by knowing the exact location of where the bus is being located.
4. The parent can monitor their children sitting at home.





- Product overview

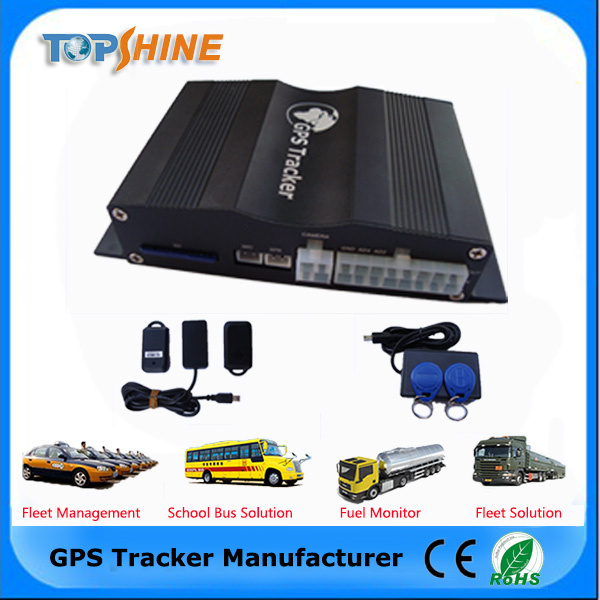

VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location &driving information log on picture). Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification.


- Applications
* Vehicle Real Time Tracking
* Car security/Anti-Hijack
* Fleet Management




- Functions & Features
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Get position location via call/SMS
* Engine on/off detection
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Door open/close status detecting/ control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system




- Alert & Optional Functions
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Harsh braking and harsh acceleration alert
* Suddenly acceleration/brake alert
* Accident Alarm (optional)
* Two way communication (Listen & Speak, need speaker support) (optional)
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* Support max 64G SD card store (optional)
* Photo with location & driving information log function (need camera support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions
(movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor
manage (optional)




- Specifications
ItemsSpecifications
Dimension110*80*30mm
Weight180g
Input voltageDC 9V~36V/1.5A
Back-up Battery950mAh/3.7V
Power Consumption65mA standby current
Operating Temperature-20°C~75°C
Humidity5%~95%
Work Time43 hours in power-saving mode and 10 hours in normal mode
LED2 LED lights to show GPS, GSM status
Button1 SOS and 1 power on/off
MicrophoneDefault
Memory4M Byte
SensorMotion sensor
GSM FrequencyGSM 850/900/1800/1900MHz
GPS ChipLatest GPS SIRF-Star III Chipset
GPS Sensitivity-159dB
Positioning Accuracy10meters, 2D RMS

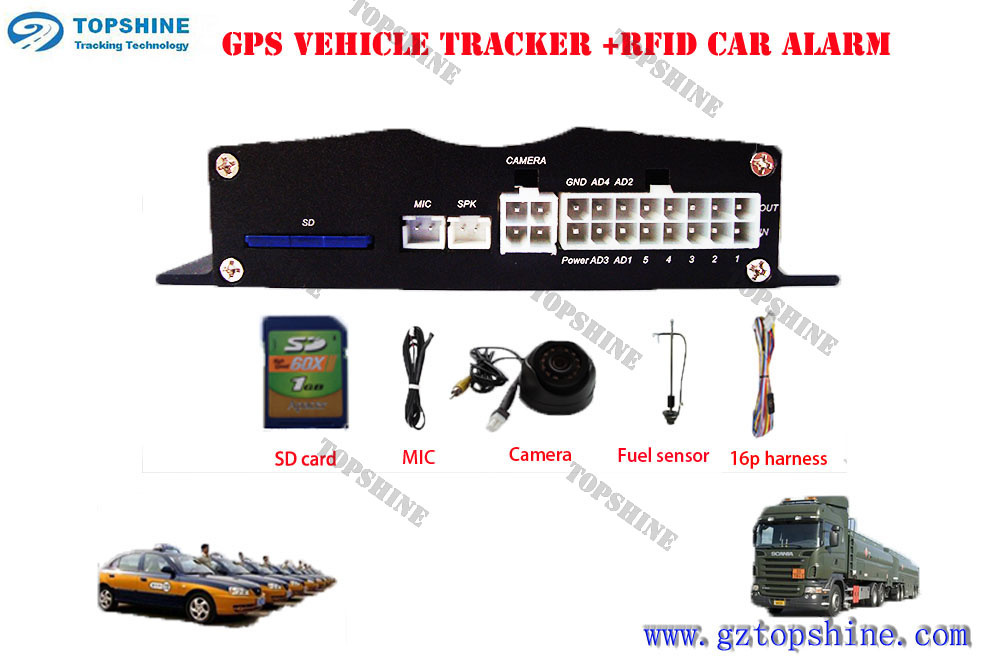

I/O5 Input         5 Output       1 Camera Port      4 Analog Input   1 RS232 Port         1 MIC& SpeakerPort

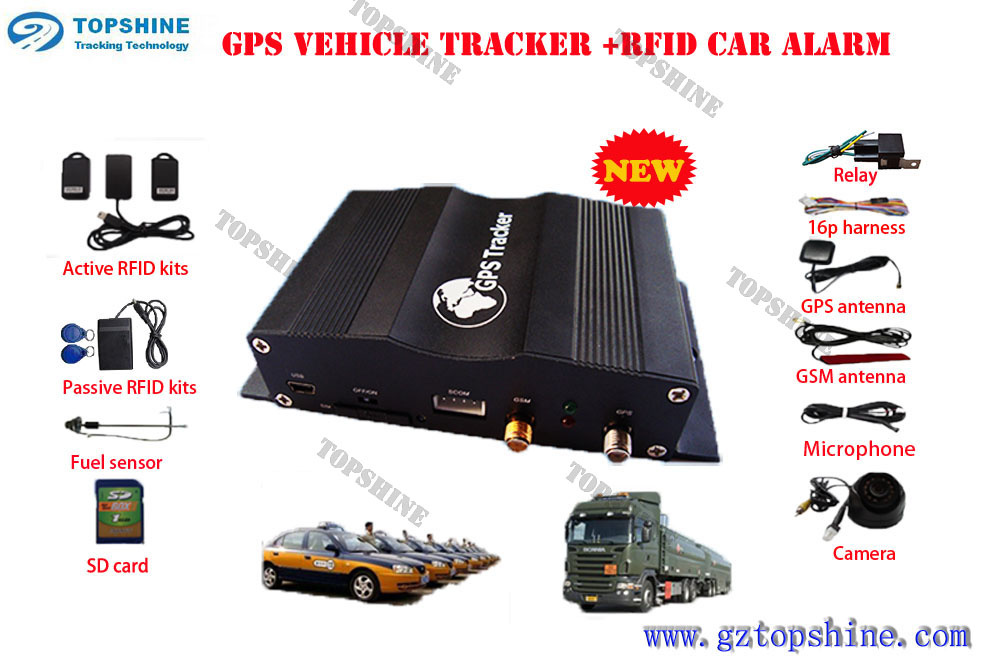

- Standard Accessories
 Main unit                     1pc  GSM antenna                    1pc
 SOS button                 1pc   GPS antenna                     1pc
 Relay(12V/24V)         1pc     Microphone                        1pc
 Wiring                         1pc


- Optional Accessories
 Fuel level sensor Temperature sensor
 Active RFID reader Active RFID Tag
 Passive RFID reader Passive RFID Tag
 Crash sensor  OBDII
 Camera  Speaker
 SD card

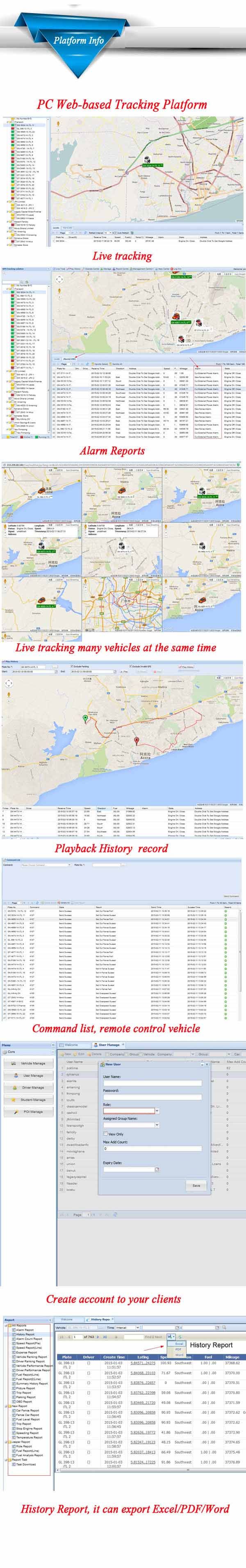

- Topshine GPRS01 web based tracking platform


Tracking platform site: www.track-car.com
Username: test1
Password: 123


Advanced function of GPRS01 tracking platform:

* API

* More stable & easy expansion

* Flexible configuration menus and assign power for certain user

* Icon can show 8 direction

Events reminder ( maintainance alert, expired alert, odometer alert etc )

* Cell phones scan the QR code to download APP

* Directly manage Nevigate, Live Track and take photos

* Show GEO-fence and POI in the main track

* Flashing icon to show alarm status

Provide customer demand for customization
