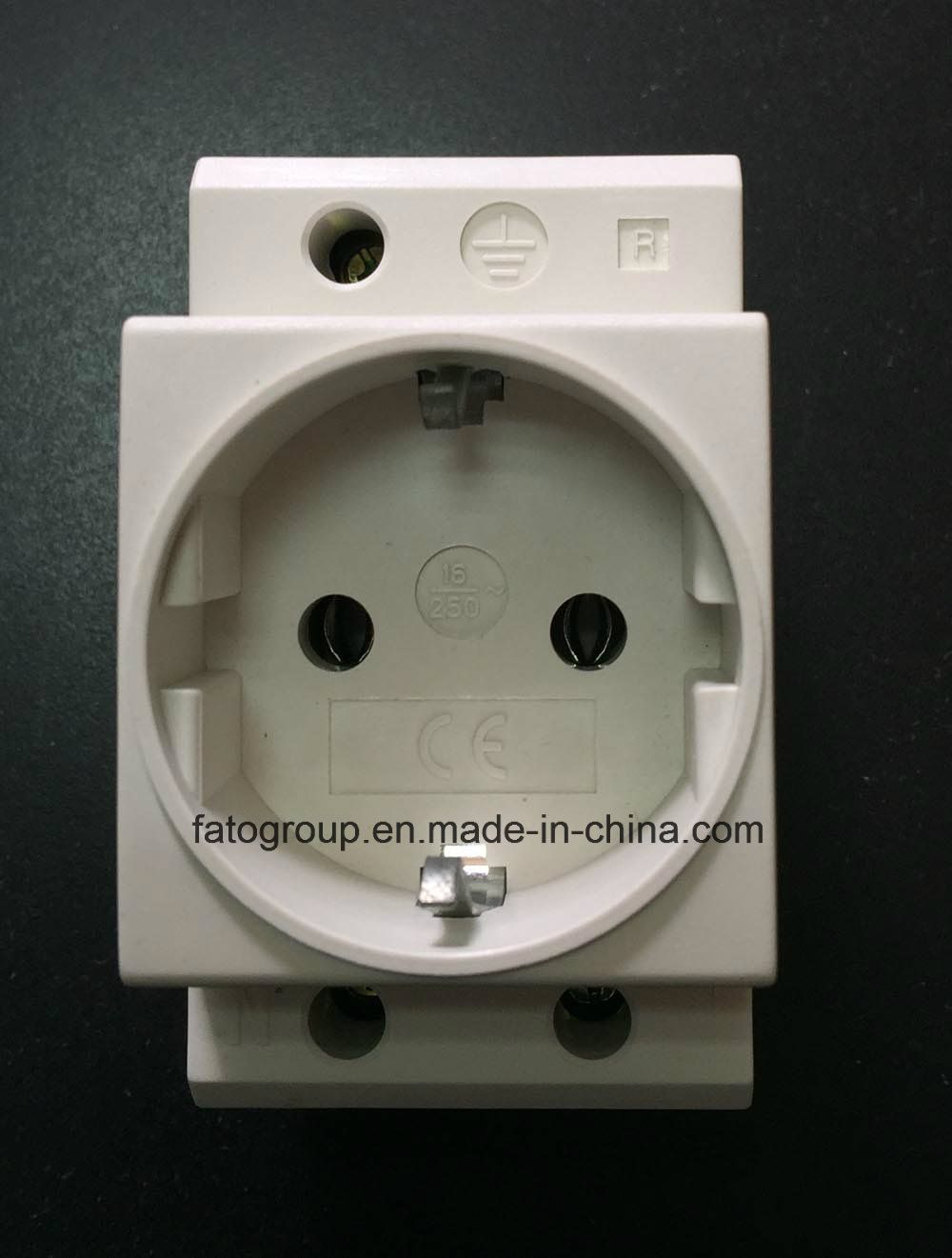

Schuko Socket

Schuko Socket
Price: Negotiable/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: 16A/250V
Grounding: Standard Grounding
Type: Without Switch
Application: Commercial
IP Rating: IP20
Color: White
Certification: CE
Customized: Customized
Condition: Used

Product Description

Specification:

Schuko Din socket can be used together with our other modular products for connection of
mobile devices, tools or electric and electronic non-modular equipments directly inside
civil and industrial switchboards.

Technical Data:

 Schuko type: 16A
 Connection capacity:≤6mm²
 Rated frequency: 50/60Hz
 Electrical endurance: 5000 times
 Rated insulation voltage Ui: 500V
 Rated impulse withstand voltage Uimp: 5000V
 Dielectric test voltage at ind. Freq. for 1 min.: 2.8kV
 Ambient temperature: -5°C  to +40°C
 Mounting category: II, III
 Pollution degree: 2
 Protection class: IP20
 Standard mounting: 35mm DIN rail
