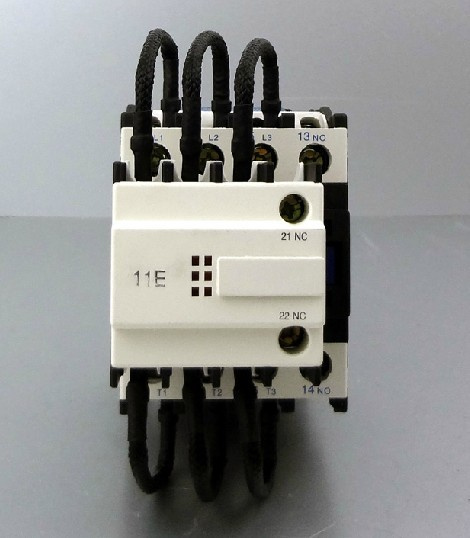

Scj19 Series Changeover Capactor Type Magnetic Contactor

Name: Scj19 Series Changeover Capactor Type Magnetic Contactor
Brand: all-electronics-online.com
SKU: 824504815
Availability: InStock
Rating: 4.9 (35 reviews)

Price:	US $ 7.82/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCJ19

Product Description

Product Description of ypes of ac magnetic contactor

SCJ19   series changeover capacitor types of ac magnetic contactor for reactive power compensation

General
SCJ19C series AC Contactor is suitable for using in the circuits the rated voltage up to 380V /440V AC 50Hz or 60Hz.CJ19C  is used
to combine with  low voltage  reactive power compensators and or cut off  low voltage shunt capacitor. CJ19C series AC Contactor
has  restraining  device  to  effectively  decrease  impact  caused  by  inrush  transient current when switch on or over voltage
when switch off.

Type designation

Note:
A.Acquiesce in 3 pairs of N/O main auxiliary contacts and 3 pairs of N/O precharge
auxiliary contacts
B.CJX2 with F4's derivate code;
C.CJX2 with F4 and electromagnet's derivate code

Specifications 1:

Item	Type	SCJ19C-25	SCJ19C-32	SCJ19C-43	SCJ19C-63
Controllable capacitor capacity (kvar)	230V	6	9	10	15
	400V	12	18	20	30
Rated insulation voltage (V)		500
Rated operation voltage (V)		380 ,440
Conventional thermal current (A)		25	32	43	63
AC-6b rated working current (A)		17	23	29	43
Restrained surge capacity/ Capacitor rated current		20Ie
Controlled power voltage (V)		48, 110, 127, 220, 380,440
Conventional thermal current of auxiliary contacts (A)		6			10
Operating frequency (cycles/h)		120
Electrical life(×100000 time)		1
Mechanical life(×100000 time)		10

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
