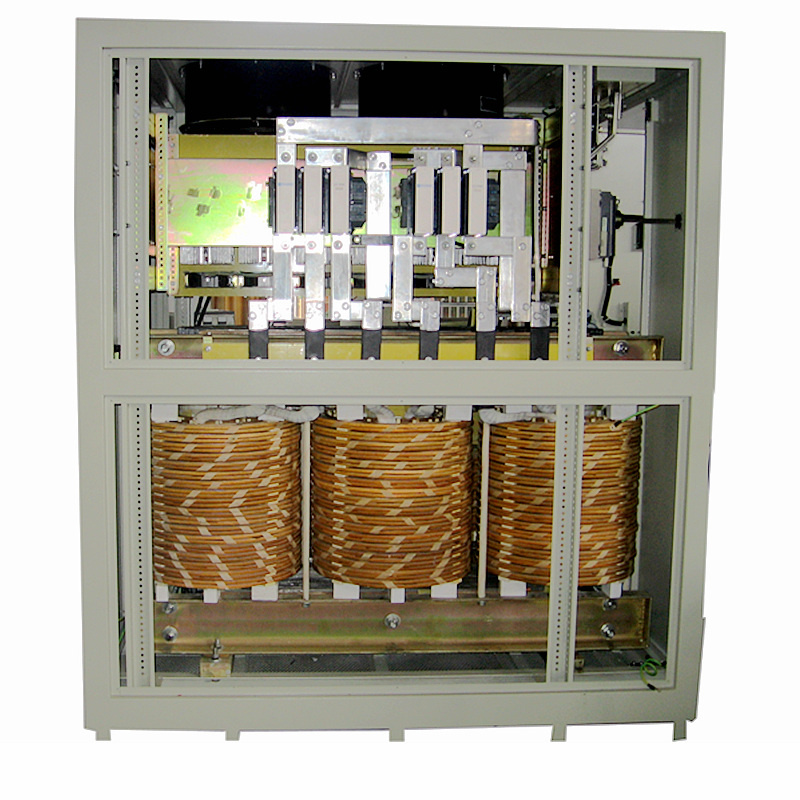

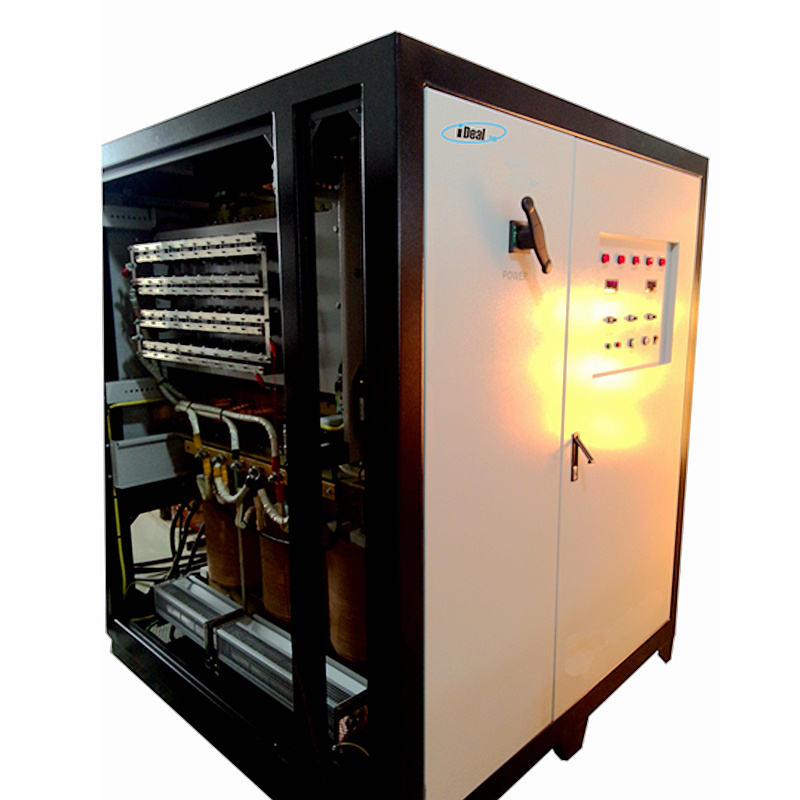

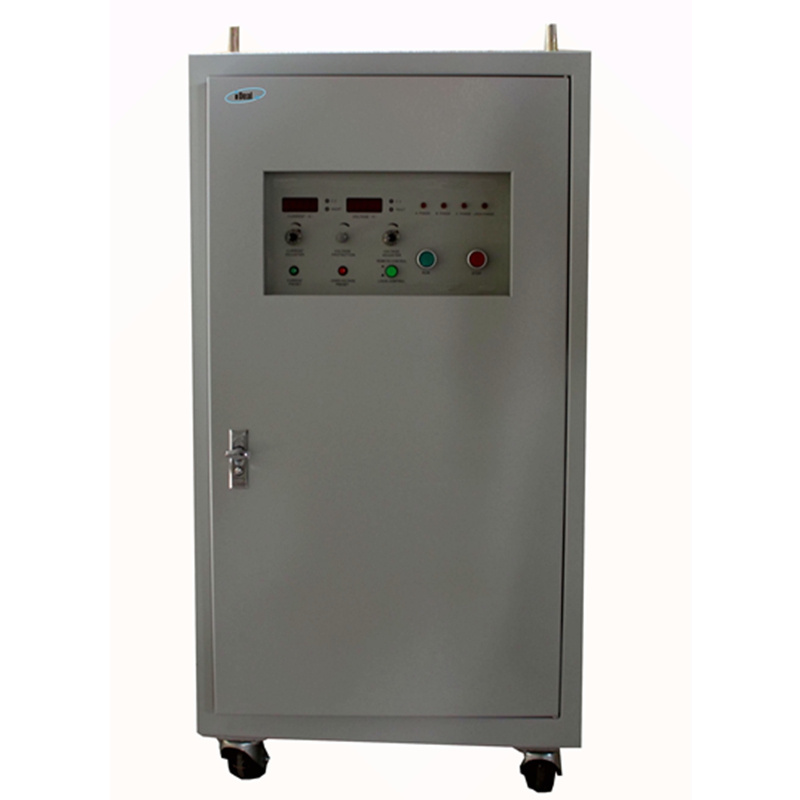

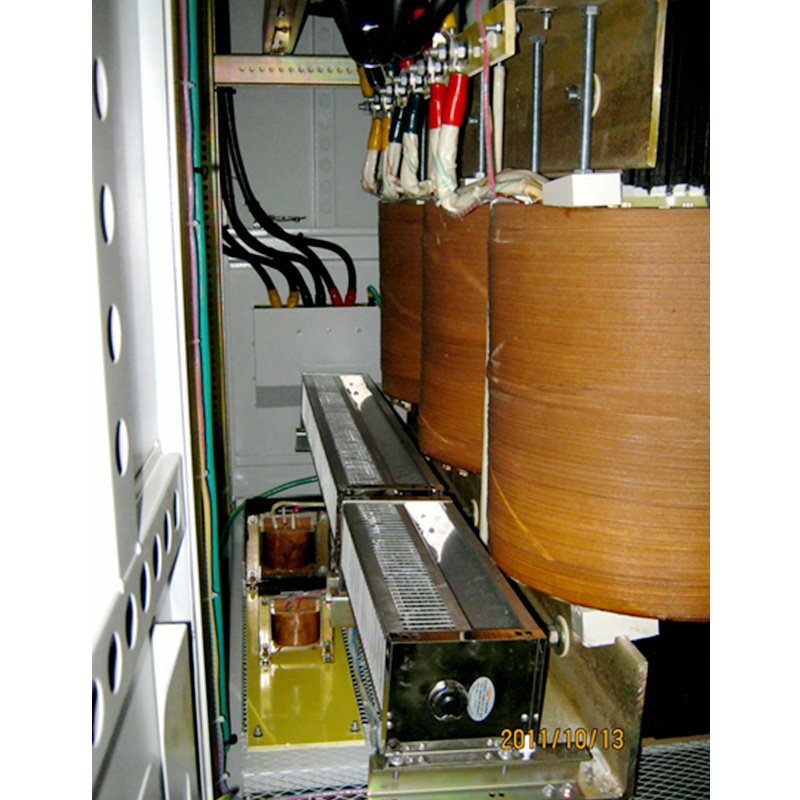

SCR Series SCR DC Power Supply
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SRP |
| Markets: |
North America,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
0~800V (Max.) |
| Output Current: |
0~20000A (Max.) |
| Circuit Mode: |
AC/DC Power Frequency Transformation |
| Working Mode: |
Constant Voltage / Constant Current |
| Output Setting: |
10-Turn Potentiometer |
| Output Display: |
LED or LCD |
| Protection: |
Ov, Oc, Oh, Lack Phase |
| Remote Control: |
0~10V / 4~20mA Analog Signal Control |
| Cooling Method: |
Forced-Air Cooling |
| Application: |
Water Treatment, Heating |
| Current Type: |
DC |
| Phase: |
Three Phase |
| Frequency: |
Industrial Frequency |
| Usage: |
Electrochemistry, Charging, Electroplating |
| Brand: |
Idealtek |
Product Description
SCR Series SCR Controlled DC Power Supply
| Electrical Characteristics |
| 1. Input,Output | Input: Three-phase380Vac±10% 50Hz/60Hz±10%
Output: DC C.C. and/or C.V.
Max output: as requirements |
| 2. Accuracy (C.V.) | Line regulation: ≤0.1% Of the rated value (output voltage change ratio under input ±10% change)
Stability: during 8 hrs≤0.3% of the rated value (output voltage change ratio due to 8 hours continuously working)
Temp. coeff.offset: ≤0.04% of the rated value/ºC(output voltage change ratio due to environment temperature changes)
Load regulation(load 0~100%): ≤1% of the rated value (output voltage change ratio due to output current change from 0 to rated value) |
| 3. Accuracy (C.C.) | Line regulation(361-418V): ≤0.1% Of the rated value (output current change ratio under input ±10% change)
Stability: during 8 hrs≤0.3% of the rated value(output current change ratio due to 8 hours continuously working)
Temp. coeff.offset: ≤0.04% of the rated value/ºC(output current change ratio due to environment temperature changes)
Load regulation(load 0~100%): ≤1% of the rated value (output current change ratio due to output voltage change from 0 to rated value) |
| 4. Ripple + Noise (r.m.s) | C.V: ≤1% of the rated value+10mV (Rated output power) |
| 5. Ripple +Noise (p-p) | C.V: ≤5% of the rated value+10mV (Rated output power) |
| 5. Programming output voltage | Adjustable (0~rated value) or CV |
| 6. Programming output current | Adjustable (0~rated value) or CC |
| 7. Adjusting mode | 10-turn Potentiometer
Key button (optional) |
| 9. Protections function | Output auto-protection and alarm when over voltage / over current / lack phase / over temp. |
| 10. Short protection | Withstand transient short-circuit. |
| 11. Working mode | Withstand long-term continual working at full load |
| 12. Read output | Digital LED
LCD (optional) |
| 13. Display precision | Depends on output specification |
| 14. Display accuracy | ≤±1%±1digit (range:5%~50% of the rated value)
≤±0.5%±1digit (range:50%~100% of the rated value) |
| 15. Load characteristic | On demand |
| 16. Operating condition | Location: indoor use only.
Temperature:-20°C ~ +40°C
Humidity:≤80% |
| 17. Spare parts | Company standard (fuse, main board, operation CD and other wearing parts) |
Input Voltage: Power source voltage can be changed to others on request.
Custom-made specifications are on request.Products Gallery
StoragePay attention to the following points during temporary & long-term storage.
1. Store the power supply in our packing box
2. Long-term storage would lead to electrolytic capacitor degradation, it should be powered up yearly, at least 5 hours power-on time, input voltage should be increased to rated value by voltage regulator. Warranty1. The warranty period of this product is 12 months, free repair within warranty period except for man‐made damages or irresistible forces.
The following cases during under warranty are not included in free-warranty scope:
(1). Incorrect operation & maintenance of the power source that cause fault.
(2). Natural loss of consumable material (shell, connector etc.)
(3). Manual damage caused by modification or dismantle
(4). Damage caused by external equipments or third-party product or plug-in units.
(5). Force majeure factors, such as fire, flood or input grid abnormal.
(6). Unilateral amendment or modification on our LOGO or part number.
(7). Fault caused by abnormal usage of power source.
(8). Other non-product quality causes
2. Reasonable maintenance & repair costs should be charged after warranty period.
Yangzhou IdealTek Electronics Co., Ltd. is located in Yangzhou city, one of the well-known power supply manufacturing center, we have two manufacturing bases and one sales office in China, based on our solid design ability, powerful technology-team and years' experience in power supply filed, we are able to provide professional, reliable and diversified power solution, and also, perfect domestic production chains contributes to reasonable price and faster delivery.
IdealTek is specialized in manufacturing linear DC power supply, switching mode DC power supply, programmable DC power supply, high voltage DC power supply, AC power supply and inversion power supply etc. Also with our strong design ability, we could provide customization power supply solution in a short time.
Our power supplies are widely used for motor test, surface treatment, waste water treatment, magnet tube vacuum sputtering, capacitor burn-in test, low-middle voltage/high voltage components test and other fields need DC or AC output.
Now our power supplies are used by many overseas customers in Singapore, USA, Brazil, Sri Lanka and Columbia etc. And recognized by customers for its good performance and reliability.
Our slogan - "Use Ideal Technology, Provide Ideal Products & Service, Be Ideal Provider"
If you are interested in us, please feel free to contact us.
