| Prod Model: |

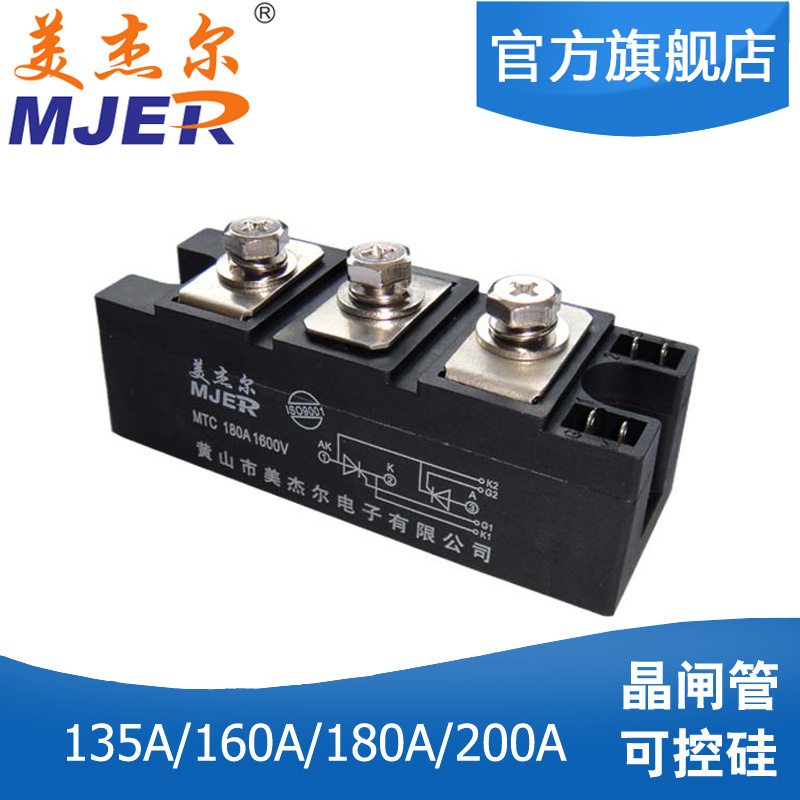

MTC180A1600V Pressed |
| Life: |
Over 1 Year |
| Certificates: |
Ce, ISO9001:2008 |
| Payment: |
T/T, L/C, Paypal |
| Lead Time: |
15days |
| MOQ: |
5PCS |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Compound Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
Standard |
| Application: |
Motor Control, Lighting Control |
| Model: |
Mtc |
| Brand: |
Mjer |
Product Description
Product Description
Power Module Common Thyristor Module MTC
MTC MTK MTA MTX MT
MTC25A MTC55A MTC70A MTC90A MTC110A
MTC130A MTC160A MTC200A MTC250A MTC300A
MTC400A MTC500A MTC600A MTC800A MTC1000A
Typical Applications
AC & DC motor control
Various rectifying power supply
Industrial heating control
Dimming
Contactless switch
Motor soft start
Static reactive compensation
Welder
Frequency converter
UPS power supply
Battery charge and discharge
Features
Electrically-isolated chip and baseboard AC
2500V
Sealing package according to international
Standard
Full crimping structure, sensitive to
Temperature and power cycle duty
Modules under 350A with compulsive
Wind-cooling. Modules under 400A either
With wind-cooling or water-cooling
Convenient installation, use and maintenance
Compact and lightweight
Welding technique under the protection of
Vacuum and hydrogen gas
Specifications
VDSM/VRSM=VDRM/VRRM+200V
Unless specified otherwise IGT,
VGT, IH, VTM, VTM, Viso are measured
Values at 25º C. Other parameters
In the form are measured values at
Tjm. I2t=I2
TSMtW/2; TW
| Type | IT(AV) | VDRM VRRM | dV/dt | di/dt | IDRM IRRM | IGT | VGT | IH | VTM/ITM | Tjm | Viso | Outline |
| | | | | | | | | 25 | | | | |
| | A | V | V/μ s | A/μ s | mA | mA | V | mA | V/A | | V(AC) | |
| MTC25A | | 25 | 400~2600 | 800 | 50 | 8 | | 100 | 2.5 | | 100 | 1.5/80 |
| MTC55A | 55 | 400~2600 | 800 | 50 | 8 | 100 | 2.5 | 100 | 1.5/80 | 125 | 2500 | 101F |
| MTC70A | 70 | 400~2600 | 800 | 50 | 10 | 100 | 2.5 | 100 | 1.9/170 | 125 | 2500 | 101F |
| MTC90A | 90 | 400~2600 | 800 | 100 | 15 | 100 | 2.5 | 100 | 1.9/270 | 125 | 2500 | 201F |
| MTC110A | 110 | 400~2600 | 800 | 100 | 20 | 100 | 2.5 | 100 | 1.9/330 | 125 | 2500 | 201F |
| MTC130A | 130 | 400~2600 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.9/410 | 125 | 2500 | 201F |
| MTC160A | 160 | 400~2600 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.9/480 | 125 | 2500 | 301F |
| MTC200A | 200 | 400~2600 | 800 | 100 | 30 | 180 | 2.5 | 100 | 1.9/600 | 125 | 2500 | 301F |
| MTC250A | 250 | 400~2600 | 800 | 100 | 30 | 180 | 2.5 | 100 | 1.9/750 | 125 | 2500 | 401F |
| MTC300A | 300 | 400~2600 | 800 | 100 | 40 | 180 | 2.5 | 100 | 1.9/900 | 125 | 2500 | 401F |
| MTC400A | 400 | 400~2600 | 800 | 100 | 40 | 200 | 3.0 | 100 | 1.9/1050 | 125 | 2500 | 401F |
| MTC500A | 500 | 400~2600 | 800 | 100 | 40 | 200 | 3.0 | 100 | 1.9/1500 | 125 | 2500 | 501F |
| MTC800A | 800 | 400~2600 | 800 | 100 | 40 | 200 | 3.0 | 100 | 1.9/2400 | 125 | 2500 | 501F |
| MTC1000A | 1000
| 400~2600 | 800 | 100 | 40 | 200 | 3.0 | 100 | 1.9/3000 | 125 | 2500 | 701F |
