| Prod Model: |
UYP/MYP-0.38/0.66 |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Brand: |
Jiapu |
Product Description
Application

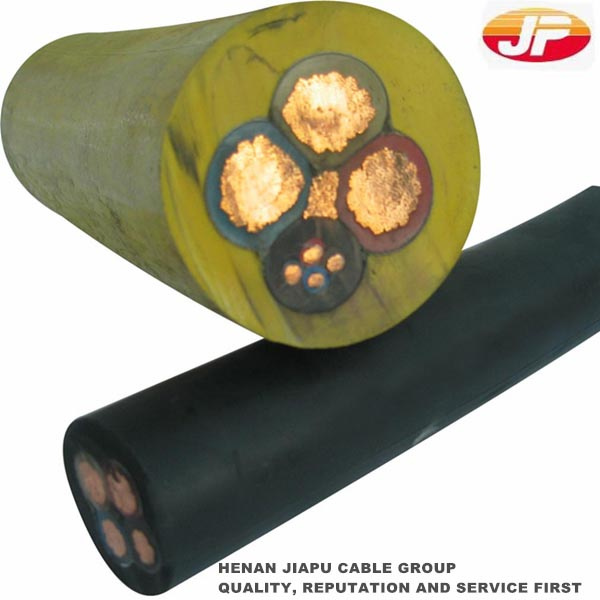

The rubber sheathed flexible cables are mostly used as power cable for equipment in industry work such as boilers, heating plates, hand lamps, transportable motor etc. They can be installed at medium mechanical stress in dry, damp and wet areas as well as in open air and in agriculture plants. These cables are also suitable for fixed installation on plaster, in temporary buildings and residential barracks. They are suitable for direct laying on components and mechanical parts of machines like lifts and cranes.
The cables are able to be used in case of protected and fixed installation in tubes or in equipment as well as rotor connecting cable of motors with a working voltage up to and including AC 1000V or DC 750V against ground.
They are designed to provide high flexibility and have the capacity to withstand weather, oils, mechanical and thermal stresses. The cable is resistant to ozone and weather effects.
Standard
IEC 60245-4: 2004
(60245 IEC 57 YZW, 60245 IEC 66 YCW)
Cable Structure
Conductor:
Electrolytic copper, tinned, Class 5 according to IEC 60228
Insulation:
EPR (Ethylene Propylene Rubber) compound
Sheath:
Heavy duty rubber compound
Technical Data
Voltage Rating:
H05RN-F: AC 300/500V H07RN-F: AC 450/750V
Temperature Rating:
Conductor operating max temperature +90° C
Cable operating environment temperature from -40° C to +90° C
Short circuit conductor max temperature +250° C for 5s
Test Voltage:
AC 50Hz 2500V/5min No breakdown
Min. Bending Radius:
Up to 25mm² : 6× Overall diameter
Above 25mm² : 8× Overall diameter
Core Identification:
2 cores
Blue, Brown
(VDE 0293)
3 cores (+ earth 3G)
Blue, Brown, Black
Blue, Brown (+ Green/Yellow)
4 cores (+ earth 4G)
Blue, Brown, Black, Black
Blue, Brown, Black (+ Green/Yellow)
5 cores (+ earth 5G)
Blue, Brown, Black, Brown, Black
Blue, Brown, Black, Black (+ Green/Yellow)
6 cores and more
Black core, white numbering (+ Green/Yellow)
Sheath Color:
Black
Cable Marking:
RUBBER CABLE H05RN-F (H07RN-F) **mm² 300/500V (450/750V) SHSU
