Screw Barrier Terminal Block with UL CE RoHS

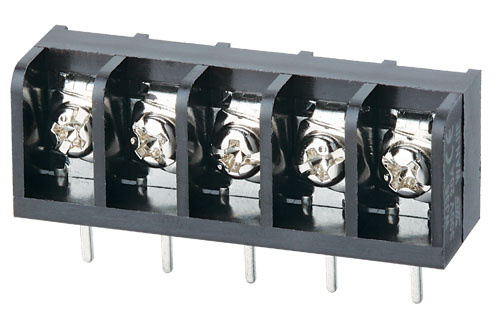

Name: Screw Barrier Terminal Block with UL CE RoHS
Brand: all-electronics-online.com
SKU: 754543655
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	US $ 0.0285/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ36A-8.25mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	8.25mm
Environmental Protection:	Resistance to Environmental
Shape:	Rectangle
Application:	PCB
Contact Termination Form:	Screws Fixed
Connection Mode:	In-Line Connector
Brand:	Wanjie

Product Description

We have passedthe ISO9001:2008 quality management system, the products have been approved by VDE, SGS, CE, CB, CQC, andC US.
An excellent management team,Fast delivery time,High quality.

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminalblocks, including screw, screwless, pluggable, feed through, barrier, din railterminal blocks, electronic housing, and solderless breadboard.

Product Description
Barrier Terminal Block
Pitch: 8.25mm
Housing: PA66, UL94V-0
Screws: M3 Steel Ni plated
Terminal: Brass Sn plated

Barrier Terminal Block
Material
Screws: M3 steel Ni plated
Pin header: Brass Sn plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 300V
Rated current: 20A
Temp. Range: -40º C~+105º C
Insulation resistance: 500MΩ ¸ /DC500V
Withstanding voltage: AC2000V/1Min
Wire range: 22-12AWG 4.0mm²
Max. Torque Value: 0.5Nm (4.43lb. In)

Barrier terminal blocks,connecting easily ,provide the size from 0.05 mm² to 6.0 mm².Available with different pitches from 6.35mm to 14.0mm.with cover and without cover.The product is designed in accordance with IEC 60998,UL 1059,CSA C22.2 NO.158 Standards.

Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
