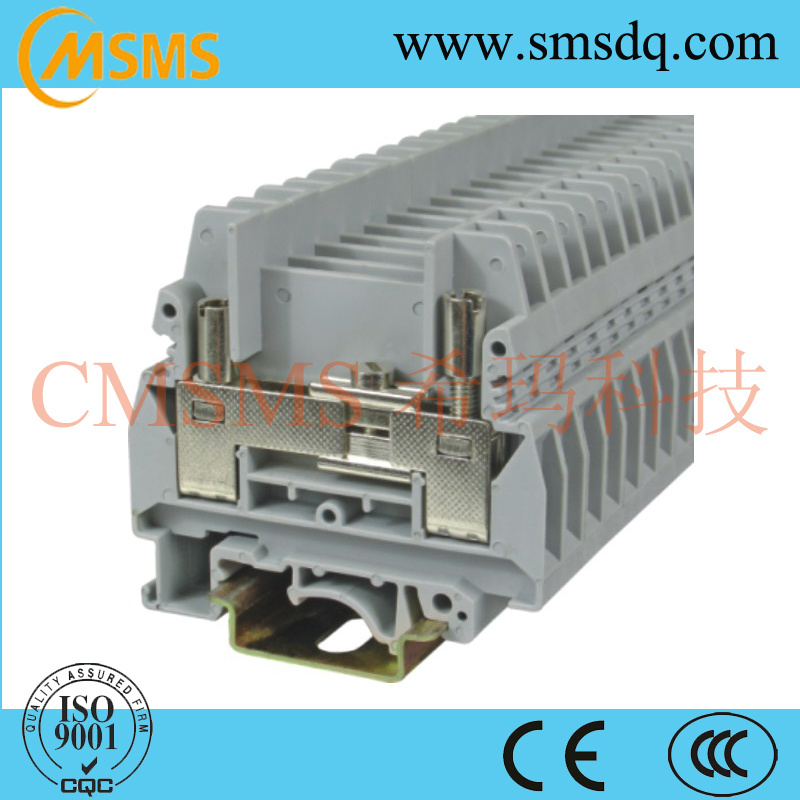

Screw Connection -Test Terminal Block (SKJ-2.5S/SKJ-6S)

Name: Screw Connection -Test Terminal Block (SKJ-2.5S/SKJ-6S)
Brand: all-electronics-online.com
SKU: 663246735
Availability: InStock
Rating: 4.9 (52 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SKJ Series test type terminal block
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Protection
Type:	Distribution Metering Box

Product Description

Test terminal blocks are applied in measurement and control equipments to realize all connections of secondary circuits in current transformer. The sliding plate with captive slide nut is provided between the two connection screws, high short current withstand, its advantages: Save space, few accessories needed, easily installed, switching circuit is clearly legible.

ITEM NO.	SKJ-2.5S	SKJ-6S
Oder No.	01071	01018
Dimension
Width x Thickness x Height(mm)	61.5/8.2/57.7	72.8/8.2/51
Screw (mm)	M4	M4
Torque (Nm)	1.5-1.8	1.5-1.8
Stripping Length (mm)	13	13
Rated data
Voltage Rating (V)	660	660
Current Rating (A)	57	57
Wire section (mm² )	6	6
Wire Range
Rigid wire range (mm² )	0.5-10	0.5-10
Flexible wire range (mm² )	0.5-6	0.5-6

Zhejiang SMS Technology Co., Ltd is a professional manufacturer of solar mounting system, Electric connection & relative products. Our main products are Terminal block, Piercing connector, Connection box, DIN rail, Fan and Ventilate filter, etc. For passed ISO9000 many years, we always concentrate to manufactures of Electric connection and relative products, energetically explore potential markets worldwide. Mostly of our products are approved by CE, RoHS, CCC, UL, etc...And enter to international markets.

At the beginning we enter the electric connection industry, we keep our eye on produce High quality products and offer More competitive products to our customers.

We adopt advanced technologies and high quality material to offer more than 20 series products in electric distribution system, power control system and cable connection, etc...Including SKJ series terminal block, ST1 series spring connector, Insulation piercing connector, DIN rail, Fan & ventilate filter, electric metering box, multipurpose terminal block and relative accessories & tools.

Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

Zhejiang SMS technology Co., Ltd. Established more than 40 agents and service parters all round China and keep expanding international market. We accept OEM/ODM order from oversea customers. We believe our products and believe customers will chosen our products as their best choice in electric connection field.
