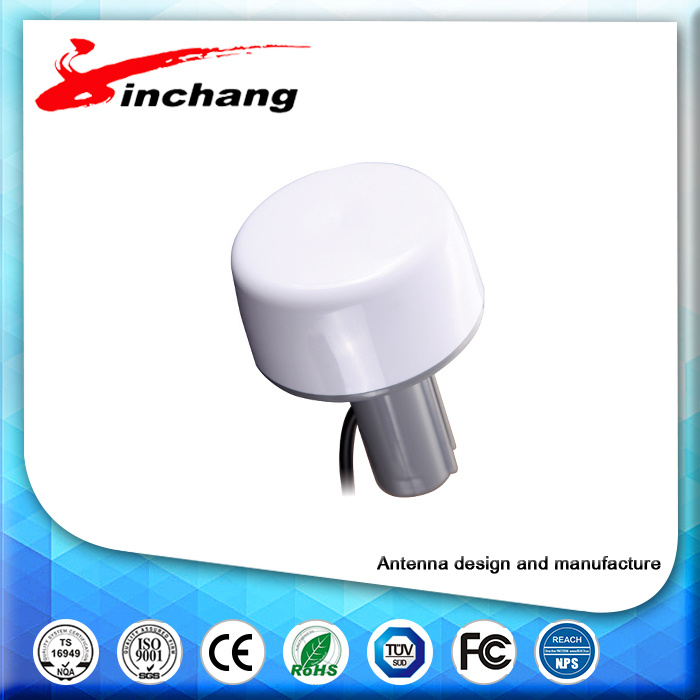

Screw Mount GSM/GPRS/3G Antenna

Name: Screw Mount GSM/GPRS/3G Antenna
Brand: all-electronics-online.com
SKU: 817646765
Availability: InStock
Rating: 4.7 (117 reviews)

Price:	US $ 6/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCG005
Size:	D46X15mm
DC Voltage:	2.2-5V or Others
Usage:	Car Antenna
Operating Wavelength:	Microwave
Directionality:	Directional Antenna
VSWR:	1.5
Material:	ABS

Product Description

Item		Specifications
GSM Antenna	Frequency Range	824~960MHz/1710~2170MHz
	V.S.W.R	<2.5
	Polarization	Linear
	Gain	2dBi
	Impendance	50Ω
Mechanical	Cable	RG58 or others
	Connector	N/SMA/MCX/FAKRA or others
	Radome Material	ABS
	Mounting Method	Screw
Environmental	Operating Temperature	-40ºC~+85ºC
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

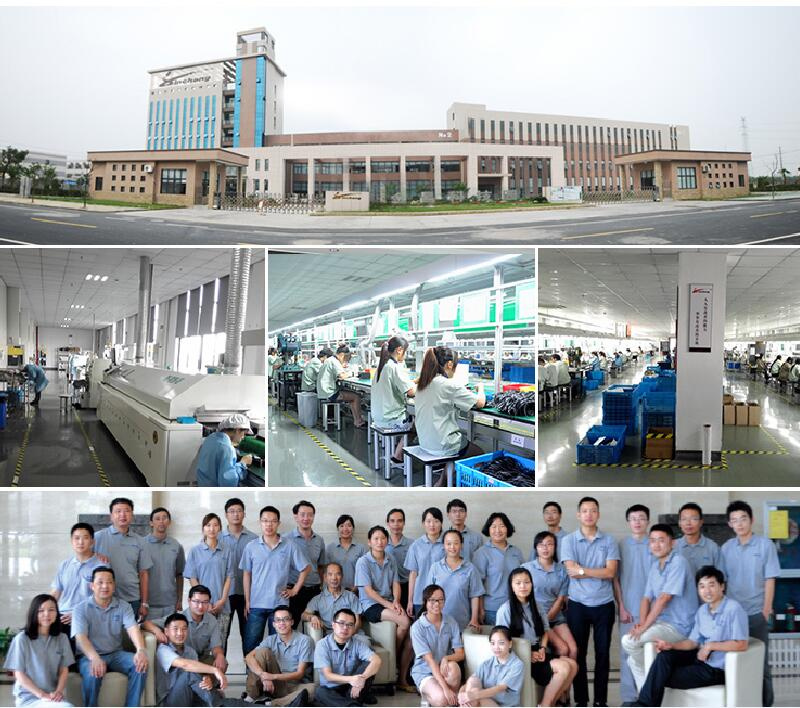

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
