Screw Mounting Temperature Capture with Nickel Platting Brass House

Name: Screw Mounting Temperature Capture with Nickel Platting Brass House
Brand: all-electronics-online.com
SKU: 733475712
Availability: InStock
Rating: 4.7 (39 reviews)

Price:	US $ 0.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MFP
Installation Type:	Clip Pipe

Product Description

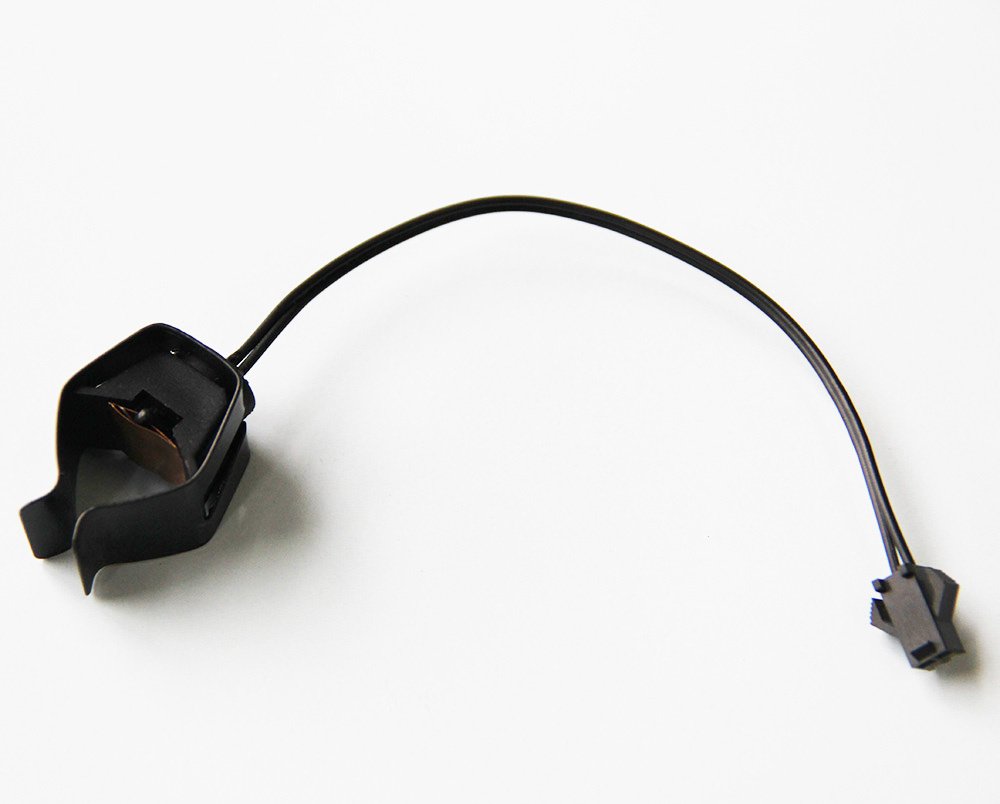

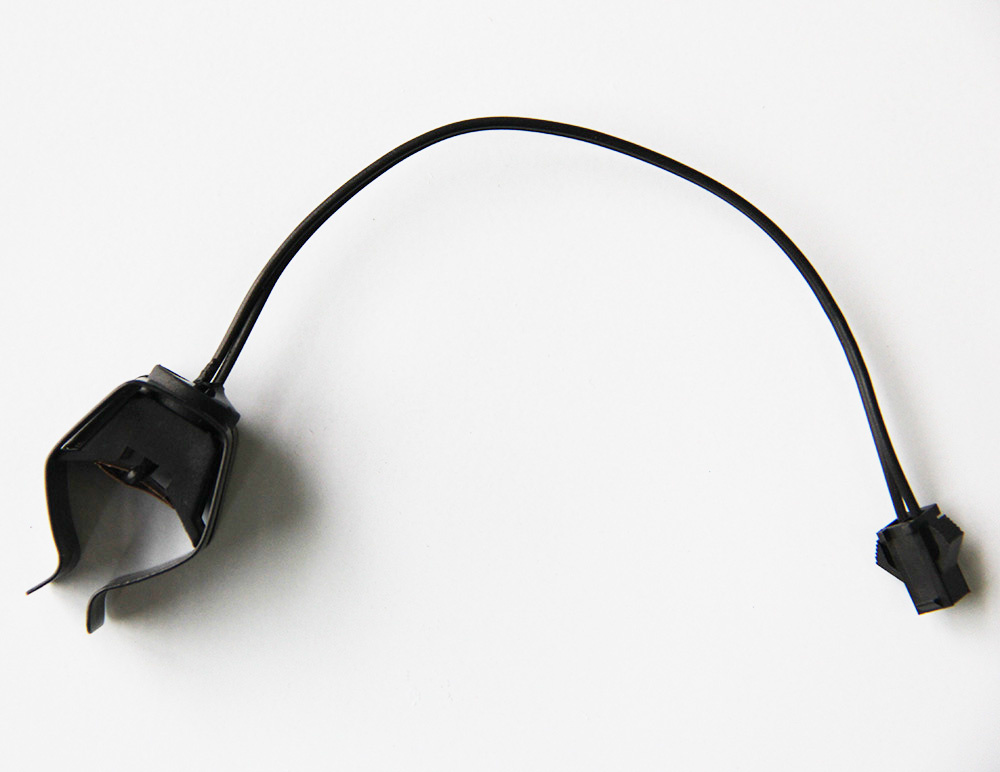

MFP-7 series temperature sensor using the NTC or RTD as temperature sensing element according to the different temperature environment or application. The clip type makes mounting on pipe easy and fixing . Size available for pipe diameter from 7mm, 14mm, 18mm till 21mm .

Technical Data:

Item	Temperature
Sensing Element	NTC Thermistor various R and B value on request
Temperature range	-30°C to +150°C
Response time	Water (0.4m/s) T0.63 ≤ 30s
Dissipation Factor	≥ 2.5mW/°C
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Dielectric Strength	1500VAC
Insulation Resistance	≥100MΩ 500VDC

Other options:

1.Standard value: R25ºC: 10K B25/85ºC: 3435, different NTC R-T curve available
2.Different wire size and color available.
3.Different size SUS clip type,diameter available for sensor mounting .
4.Different type of connector is available.

Typical Applications:
Gas boiler
Water heater
Floor heating and Cogeneration systems

Features:
Moisture-proof
Fast response
Small time constant
