| Prod Model: |
S2800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Control Type: |
Vector Control |
| Certification: |
Ce ISO |
| Output Voltage: |
220V; 380V;660V |
| IP Rate: |
IP20 |
| Multi-Speed Function: |
8 Speeds |
| Output Current: |
5.4-290A |
| Pid Control: |
Built-in |
| Overload Capacity: |
150% Rated Current in 60s; 180% Rated Current in 1 |
| Jog Key Function: |
Jog Key Function |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Output Type: |
1/3 Phase |
| Brand: |
Machtric |

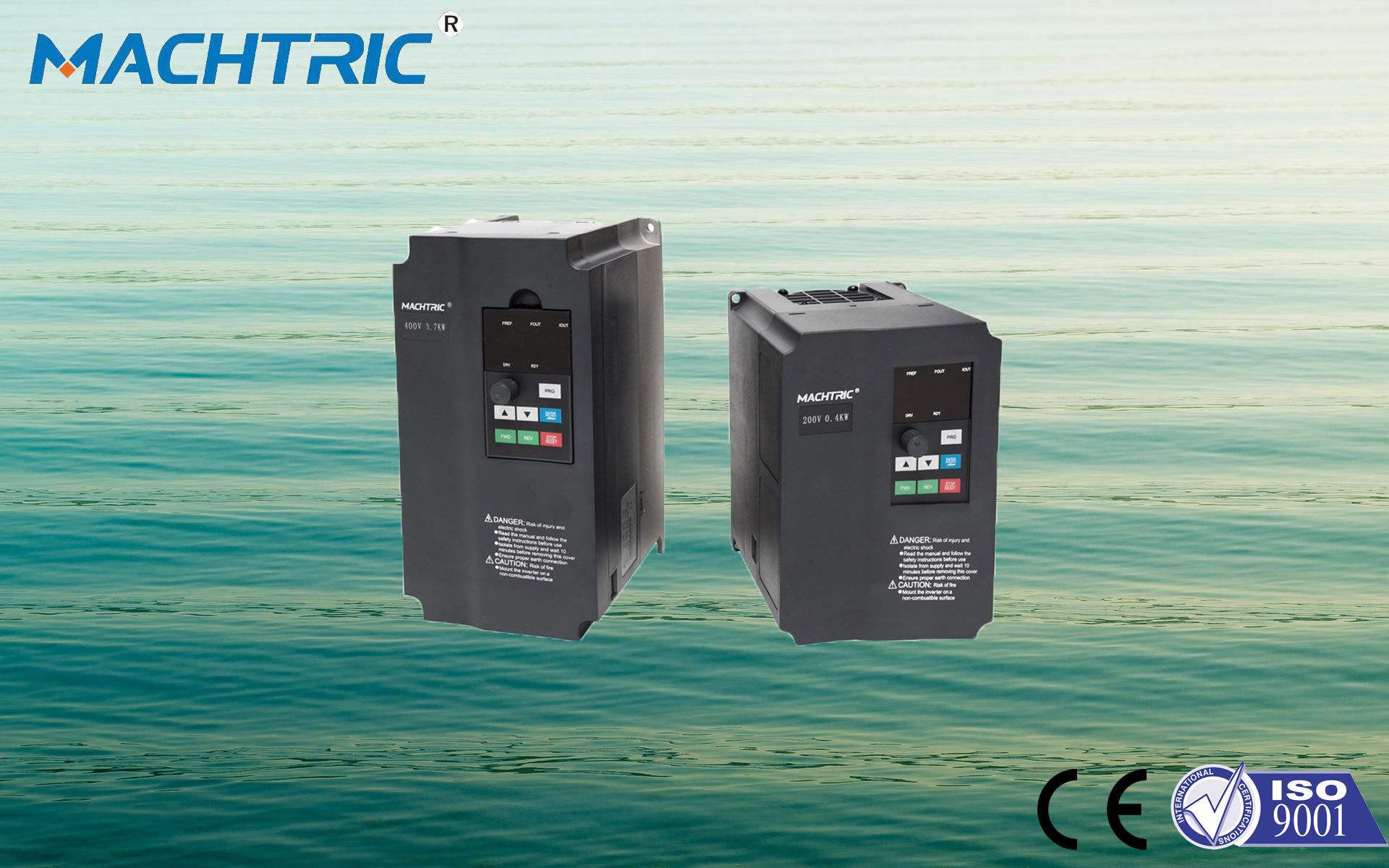

Product Description
S2800e
Output Power 0.75kw-1000kw
Input Voltage: 380V
Output Voltage: 380V
Type AC-DC-AC
Output Frequency 0.01-600.0Hz
Product specification:
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Voltage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Techinc | Control Mode | Sensor less Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector sensor less control |
| Adjustment Ratio | 1:100 with vector sensor less control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector sensor less control |
| Carrier Frequency | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |
Specification:
Model NO. | Rated output power(KW) |
Rated inout current(A) |
Rated output current(A) |
Motor power (KW) |
|---|
| 1PH/3PH AC 220V -15%~15% |
| S2800-2T0.4GE | 0.4 | 5.4 | 2.3 | 0.4 |
| S2800-2T0.75GE | 0.75 | 8.2 | 4.5 | 0.75 |
| S2800-2T1.5GE | 1.5 | 14.2 | 7 | 1.5 |
| S2800-2T2.2GE | 2.2 | 23 | 10 | 2.2 |
| S2800-2T3.7GE | 3.7 | 35 | 16 | 3.7 |
| 3PH AC 380V ±15% |
| S2800-4T0.4GE | 0.4/0.75 | 3.4/3.8 | 1.2/2.5 | 0.4/0.75 |
| S2800-4T0.75GE | 0.75/1.5 | 3.8/5.0 | 2.5/3.7 | 0.75/1.5 |
| S2800-4T1.5GE | 1.5/2.2 | 5.0/5.8 | 3.7/5.0 | 1.5/2.2 |
| S2800-4T2.2GE | 2.2/3.7 | 5.8/10.0 | 5.0/9.0 | 2.2/3.7 |
| S2800-4T3.7GE | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| S2800-4T5.5GE | 5.5/7.5 | 15.0/20.0 | 13.0/17.0 | 5.5/7.5 |
| S2800-4T7.5GE | 7.5/11 | 20.0/26.0 | 13.0/17.0 | 7.5/11 |
| S2800-4T11GE | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
| S2800-4T15GE | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
| S2800-4T18.5GE | 18.5/22 | 38.0/46.0 | 37.0/45.0 | 18.5/22 |
| S2800-4T22GE | 22/30 | 46.0/62.0 | 45.0/60.0 | 22/30 |
| S2800-4T30GE | 30/37 | 62.0/76.0 | 60.0/75.0 | 30/37 |
| S2800-4T37GE | 37/45 | 76.0/90.0 | 75.0/90.0 | 37/45 |
| S2800-4T45GE | 45/55 | 90.0/105.0 | 90.0/110.0 | 45/55 |
| S2800-4T55GE | 55 | 105 | 110 | 55 |
| S2800-4T75GE | 75/90 | 140.0/160.0 | 150.0/176.0 | 75/90 |
| S2800-4T90GE | 90/110 | 160.0/210.0 | 176.0/210.0 | 90/110 |
| S2800-4T110GE | 110/132 | 210.0/240.0 | 210.0/253.0 | 110/132 |
| S2800-4T132GE | 132/160 | 240.0/290.0 | 253.0/300.0 | 132/160 |
| S2800-4T160GE | 160/185 | 290.0/330.0 | 300.0/340.0 | 160/185 |
| S2800-4T185GE | 185/200 | 330.0/370.0 | 340.0/380.0 | 185/200 |
| S2800-4T200GE | 200/220 | 370.0/410.0 | 380.0/420.0 | 200/220 |
| S2800-4T220GE | 220/250 | 410.0/460.0 | 420.0/470.0 | 220/250 |
| S2800-4T250GE | 250/280 | 460.0/500.0 | 470.0/520.0 | 250/280 |
| S2800-4T280GE | 280/315 | 500.0/580.0 | 520.0/600.0 | 280/315 |
| S2800-4T315GE | 315/350 | 580.0/620.0 | 600.0/640.0 | 315/350 |
| S2800-4T350GE | 350/400 | 620.0/670.0 | 640.0/690.0 | 350/400 |
| S2800-4T400GE | 400/450 | 670.0/790.0 | 690.0/790.0 | 400/450 |
| S2800-4T450GE | 450/500 | 790.0/835.0 | 790.0/860.0 | 450/500 |
| S2800-4T500GE | 500/560 | 835.0/920.0 | 860.0/950.0 | 500/560 |
| S2800-4T560GE | 560/630 | 920.0/1050.0 | 950.0/1100.0 | 560/630 |
| S2800-4T630GE | 630/710 | 1050.0/1126.0 | 1100.0/1280.0 | 630/710 |
| S2800-4T710GE | 710/800 | 1126.0/1460.0 | 1280.0/1380.0 | 710/800 |
| S2800-4T800GE | 800/900 | 1460.0/1640.0 | 1380.0/1640.0 | 800/900 |
| S2800-4T900GE | 900/1000 | 1640.0/1800.0 | 1640.0/1720.0 | 900/1000 |
| S2800-4T1000GE | 1000 | 1800 | 1720 | 1000 |
FAQ
1.what's the payment term?
We accept T/T, L/C, D/P, WEST UNION, and CASH
2. What's the delivery time?
Usually it will take about two - three weeks for production .It depends on your quantity .
3. What is the standard of package?
Export standard package or special package according to customer requirement
.
4. What kind of product quality your factory offer?
We offer most competitive prices with best quality
5. Do you accept OEM business?
We accept OEM with your authorizations.
6. Which market do you already sell?
We already ship to Europ, Middle East, South America, Asia, Afria etc.
