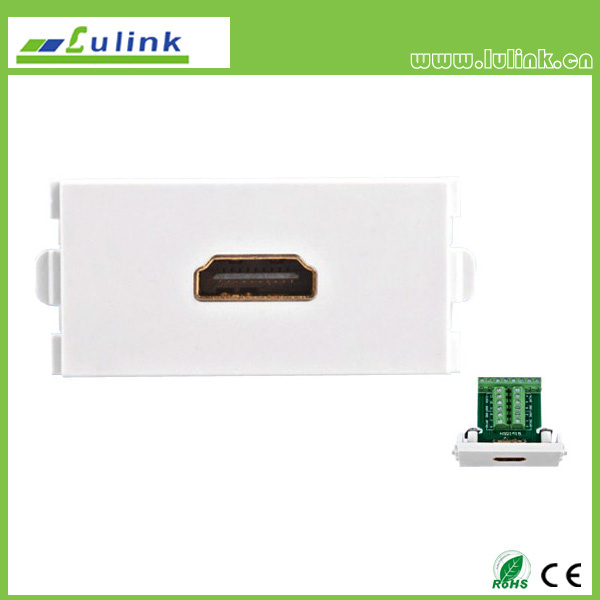

Screw Type HDMI Wall Plate

Screw Type HDMI Wall Plate
Price: US $ 1.12-1.3/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: LKPF015
Size: 48*24mm
Adapter: Female to Female
Fasten: 120 Size or 86 Size Faceplate
Port: Single Port
Material: ABS
Certification: ISO: 9001
Color: White
Customized: Customized
Condition: New

Product Description

Name:  HDMI Module (Wiring terminal)
Size: 48*24mm
Model: LKPF015
Product features Specifications:
· Support to one set of HDMI signal transmission

Product Instructions:
Using cable: HDMI engineering cable
Wiring method:
There are 4 rows of thicker wire inside HDMI cable,
Each row with 2 cable and 1 copper wire.
4 Rows connect to DATA0,DATA1, DATA2 and Clock,
2 cables connect to + and -(Cable color must be same with the other side)
Copper Wire connect to GND.
The other cables connect to 13,14,15,16,17,18,19(Make sure correspond with the other side )
The outside shield wire connect to SGND ;

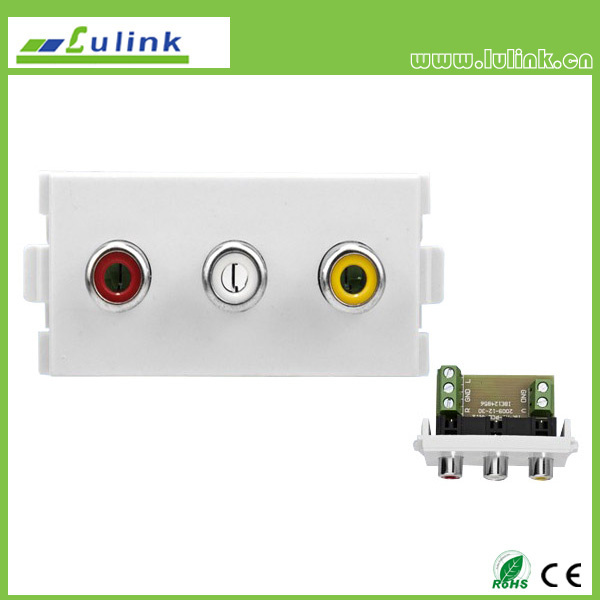

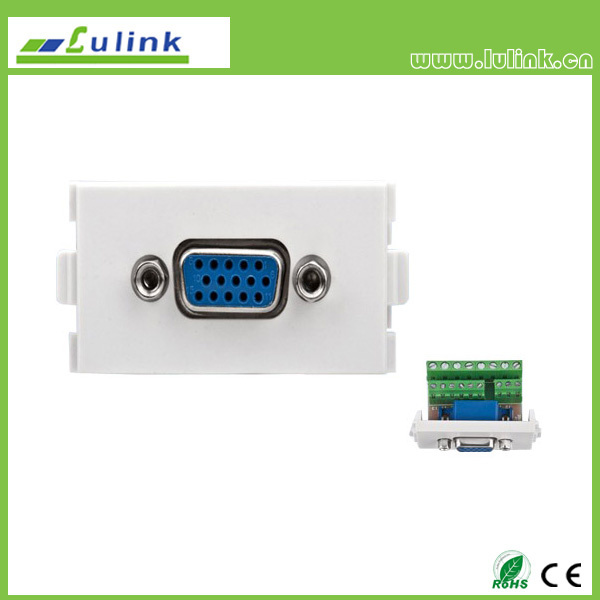

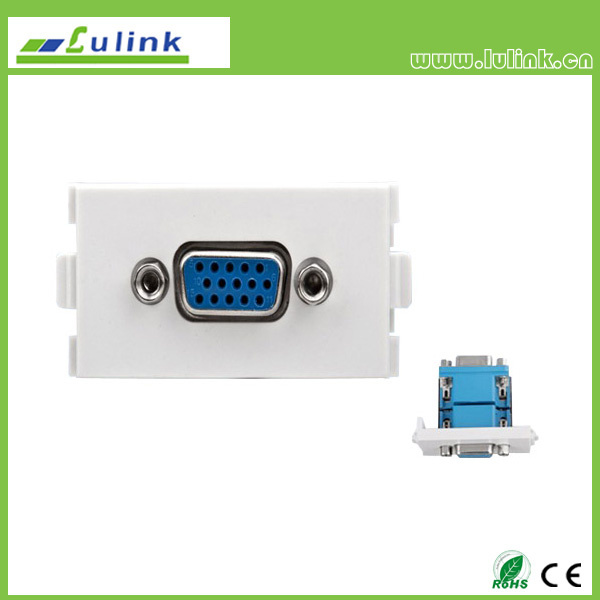

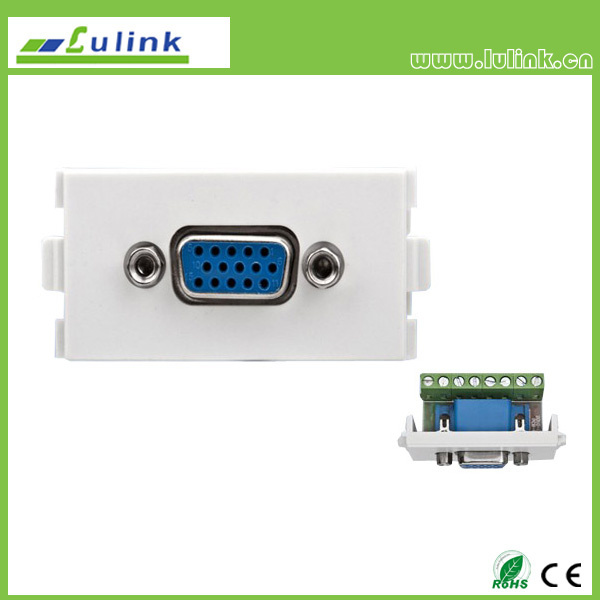

Other modules for option:
