| Prod Model: |
KF2EDGKDM-7.5/7.62 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environmental Protection: |
General |
| Shape: |
Rectangle |
| Application: |
Battery |
| Connection Mode: |
Push-Pull Connection |
| Contact Termination Form: |
Spring |
Product Description

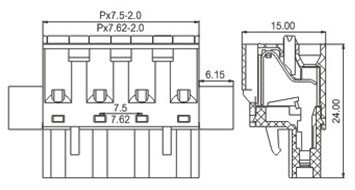

1.Product specificationsKF2EDGKDM-7.5/7.62
Rated voltage: 300V
Rated current: 10A
Wire range: 28-12AWG
Withstanding voltage:AC2500V/1min
Pitch: 7.5/7.62mm
Poles: 2P to 24P
Materials:
Contact:Ni-plated phosphor bronze
Wire cage:stainless steel
Housing: PA66.UL 94V-0
Maximum soldering: 250°C for 5 seconds
Temperature range: -40 to 105°C
2.How to orderA. Part number + Poles + Color + Screw type + Quality type + Quantity , + other requirements
B. Sample order acceptable
C. Product test and custom design acceptable.
3.PaymentA. T/T, L/C, Western Union, Paypal, Escrow
B. EXW, FOB, CFR, CIF, DDU, FCA
C. ≤USD10,000 , 100% deposit ; ≥USD10,000 , 30-50% deposit
4.PackingA. Plastic bag + box + carton, desiccant acceptable
B. Special package requirements acceptable
5.ShippingA. DHL, TNT, UPS, Fedex, EMS, ARAMEX, SF, other service acceptable
B. Small order delivered within one week, bulk order within one month
6.CertificateISO 9001, ISO14001, CE, ROHS
7.About usCixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.
Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly. Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc. to maintain and enhance the workmanship of precise injection, punching, die casting, and cutting. Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.
We owned professional laboratory acknowledged by VDE, UL. Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE,TUV,ROHS,CQC,CB,UL and VDE. We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.
The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things. Self-discipline and social commitment would embrace everything.
|
Electrical |
|
|
|
|
|
|
|
Wire Range |
|
28-12AWG |
|
Rated Current |
|
10A |
|
Rated Voltage |
|
300V |
|
With Standing Voltage |
|
AC2500V/1min |
|
Mechanical |
|
|
|
|
|
|
|
Temperature Range |
|
-40°C ~+105°C |
|
Max Soldering |
|
+250°Cfor 5 sec. |
|
Strip Length |
|
10mm |
|
Material |
|
|
|
|
|
|
|
Housing |
|
PA66.UL94V-0 |
|
Contact |
|
Ni-Plated Phosphor bronze |
|
Clips |
|
Stainless Steel |
|
Demension |
|
|
|
|
|
|
|
Poles |
|
2P-24P |
|
Pitch |
|
7.5/7.62mm |
Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.
Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly.Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc.To maintain and enhance the workmanship of precise injection, punching, die casting, and cutting.Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.
We owned professional laboratory acknowledged by VDE, UL.Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE, TUV, RoHS, CQC, CB, UL and VDE.We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.
The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things.Self-discipline and social commitment would embrace everything.
