Sctk752b Split Core Current Transformer
| Price: |
US $ 4.5-10.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SCTK752B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Approval: |
UL |
| Accuracy: |
0.1 |
| Export Market: |
Global |
| Quality: |
AAA |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Three |
Product Description
Description for SCTK 752b
Product introduction
STCK752B series retro-fit (split - core) current transformer has been specially designed to facilitate theri installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal presision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
Features
The structure of the self-locking, safe,easy to install, protable
Wide inner window, allowing clamping of big cables or bus-bar
Wide range of sizea to accommodate all the existing installations
Applications
Current measurement, monitoring and protection for electrical wiring and equipment. Current and power measurement for electric motore, lighting, air compressor, heating and ventilation system, air-condition equipment and automation-control system. Current, power and energy monitoring device. Relay protection device.

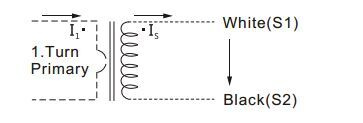

Circuit connection diagram
Technique Index | Electrical Parameter | Mechanical Parameter |
| Frequency | 50-2.5KHz | Case | PC / UL94-V0 |
| Rated Input | 5A-6000A | Bobbin | PC |
| Measuring range | 10%In-130%In | Core | Silicon |
| Rated Output | 0.333V(AC)or 0-5A | Internal structure | Epoxy |
| Ratio | ≤±0.1% | Construction | Tie |
| Phase angle | ≤±5min | Operating Temp | -25ºC - +75ºC |
| Dielectric strength | 5.0KV/1mA/1min | Operating Humidity | ≤85% |
| Insulation Resistance | DC500V/100MΩ/min | Output Connection | Terminal or UL 18AWG Wire 1.5m |
Type Selecion
Mfg
P/N | Rated Input
(A) | Output
(mA/V) |

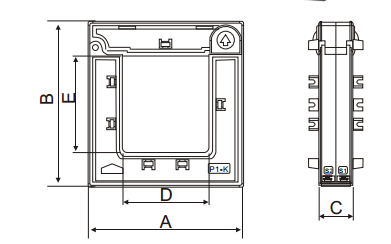

Accuracy | Dimension (mm) |
| A | B | C | D | E |
| SCTK752B-0203 | 5-400A | 0-200mA
1A/5A
0.333V
| 0.1
0.2
0.5
1.0 | 94.0 | 104.0 | 40.0 | 25.5 | 33.0 |
| SCTK752B-0508 | 5-1000A | 114.0 | 144.0 | 32.0 | 50.0 | 80.0 |
| SCTK752B-0809 | 5-1600A | 144.0 | 154.0 | 32.0 | 80.0 | 90.0 |
| SCTK752B-0812 | 5-2000A | 154.0 | 184.0 | 32.0 | 80.0 | 120.0 |
| SCTK752B-0816 | 5-5000A | 160.0 | 240.0 | 45.0 | 80.0 | 160.0 |
| SCTK752B-1015 | 5-5000A | 185.0 | 235.0 | 45.0 | 105.0 | 155.0 |
| SCTK752B-1318 | 5-6000A | 210.0 | 260.0 | 45.0 | 130.0 | 180.0 |
