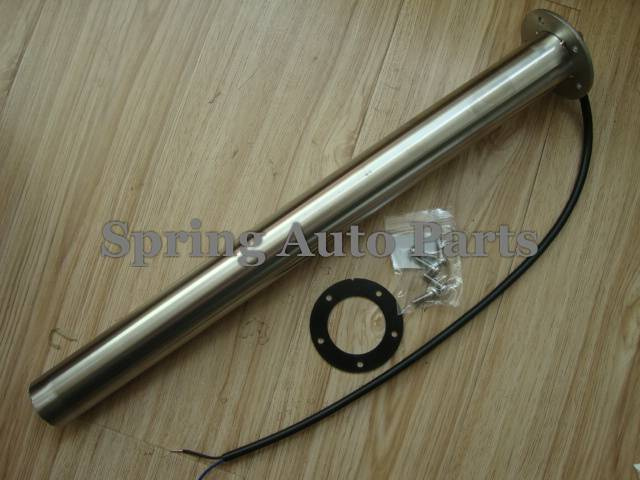

SD Series Fuel and Water Level Sensor Anti-Vibration

Name: SD Series Fuel and Water Level Sensor Anti-Vibration
Brand: all-electronics-online.com
SKU: 780003125
Availability: InStock
Rating: 4.8 (119 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation:	SAE Standard 5 Holes
Output Signal:	0-190ohm 240-33ohm 0-5V 4-20mA
Resolution:	4.5mm-21 mm
Available Length:	150-1500mm
Warranty Period:	One Year

Product Description

fuel level sensor

Materials:
The main body is made of SUS316 or SUS304 stainless steel, with the addition of damping cover for steadying the output signal.
Length range:
150-1500 mm; It can be customized as per tank size. Please choose our SD80 series if the required length is more than 1200mm.
Assembly:
SAE standard 5 holes
Accessories:
5 pieces of M5 screws
2 mm thick NBR gasket or recommended 2 mm thick FPM gasket if be used in gas tank.
Protection rank: IP67
Applying the principle of magnetic field to control the reed on-off switch, featuring long using life, anti-vibration, anti-explosion, etc.
Rated Power: 125mW
Rated Current for alarm switch: 500mA
Wire: PVC material (PA corrugated pipe cover is optional)
Connector: Brand Delphi, Tyco or others is available according to customer's requirement.
Output signal: Resistance control signal, 0-190Ω, 240-33Ω, or customized as required; You can also choose current control signal, 0-20mA, 4-20mA or Voltage control signal, 0.5-4.5VDC, 0-5VDC
Precision range: 10-40mm
Operating temperature:
-40°c -+85°c

When ordering, please specify:

SD	Length	Output Signal	Assembly Way	Gasket	Alarm	Alarm Location	Length of Wire(lc)
Standard		0-190Ω	SAE standard five hole	NBR	NO		460mm
		240-33Ω					280mm
Customized				NBR	YES
				FPM	NO

Connector is not included for the standard items. Please refer to the appendix specification table for option.
