SD-Zw8002 Intelligent Digital Humidity and Temperature Controller
| Price: |
US $ 60.92/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SD-ZW8002 |
| Temperature Control Range: |
-20-80degrees Celsius |
| Working Power: |
AC220V+/-15% |
| Installing Size: |
91X45mm |
| Humidity Control Range: |
10-99%Rh |
Product Description
Factory direct supply, all goods can be customized,
OEM/ODM is available.
Overview
The temp and humidity adopt the micro processing, sensor technology, computer etc high and new technology. Using imported high precious temp and humidity sensor, measure the environment, high light intensity LED displays, according to the various state to control multiply, the instrument used for temp and humidity monitor and control. It is compliant to terminal box, high and low switch cabinet, transformer, box type substation, circuit breaker etc equipment's damp proof, low temp, high temp on line monitor and heat automatically and get rid of dampness. Low temperature heat automatically and high temperature exclude wind automatically.
Technical Parameter
1)Display range:
temp: -20ºC - 80ºC precision:± 1ºC
humidity: 10 - 99%RH precision:±2%RH
2) Setting range:
temp:-20ºC- 80ºC adjust up or down each time1ºC
humidity:10 - 99%RH adjust up or down each time 1%RH
3) The heater start conditions:
temp display value ≤ heater start lower limit or humidity display value≥ too damp the upper limit
4) The heater quit conditions:
temp display value ≥ heater start upper limit and humidity display value≤ too damp the upper limit
5) Factory setting:
upper limit start of heating 15ºC
lower limit start of heating 5 ºC
too damp upper limit 95%RH
too damp lower limit 85%RH
6) The heater exclude power output:
220VAC not greater than 5A
7) Alarm output: contact output
8) Work electricity power:220VAC ± 10%
9) Voltage loop power≤2W 10VA
10) Climate parameter:
normal work temp -20ºC - 45ºC
the limit work temp-30ºC - 75ºC
store and transport temp-25ºC - 75ºC Main function and characteristic of the system
- Measure function: temp measure the measuring scope -20ºC to +80ºC, humidity measure the measuring range 20%RH to 99%RH. Temp resolution ratio is 1ºC. Humidity is 1%RH.
- Parameter and data display function: displaying adopt two row high light intensity digital tubes, the customer can read clearing. The upper four bits high brightness red LED, mainly used to display temp data and set paramete
- Heat and get rid of frost function: heat and defrost system software decides heat and defrost. Can choose aluminum alloy heater or other type.
- Disconnection alarm function: When the heater is disconnected or lose efficacy, the system software decides automatically and the alarm signal output, as a passive node.
- Signal indication function: heater indicate, when the system is heating up the panel heat pilot lamp lights; exclude wind indicate, when the system is cooling up and excludes wind the wind lamp lights; alarm indicate, when the heater is disconnected or lose efficacy, panel alarm LED lights.
- Sensor characteristic: Imported high performance, corrosion resistance, humidity sensor with high reliability, high sensitivity, temperature IC sensor, wide range, good linearity.
- The customer can freely set the upper and lower limit of the temp and humidity, convenient for different users and different occasions.
- After set up the parameter value, the parameter will store the data automatically and will not lose when the electricity is off.
Instructions1.Connect the temp and humidity sensor as sensor connection specification indicating, make sure output load and the work power line is right. Connect the power line to 220VAC electrical source.
2.When the electricity is on, after self-test the upper row of the digital tube of the temp and humidity displays current temp, the lower row displays relative humidity.

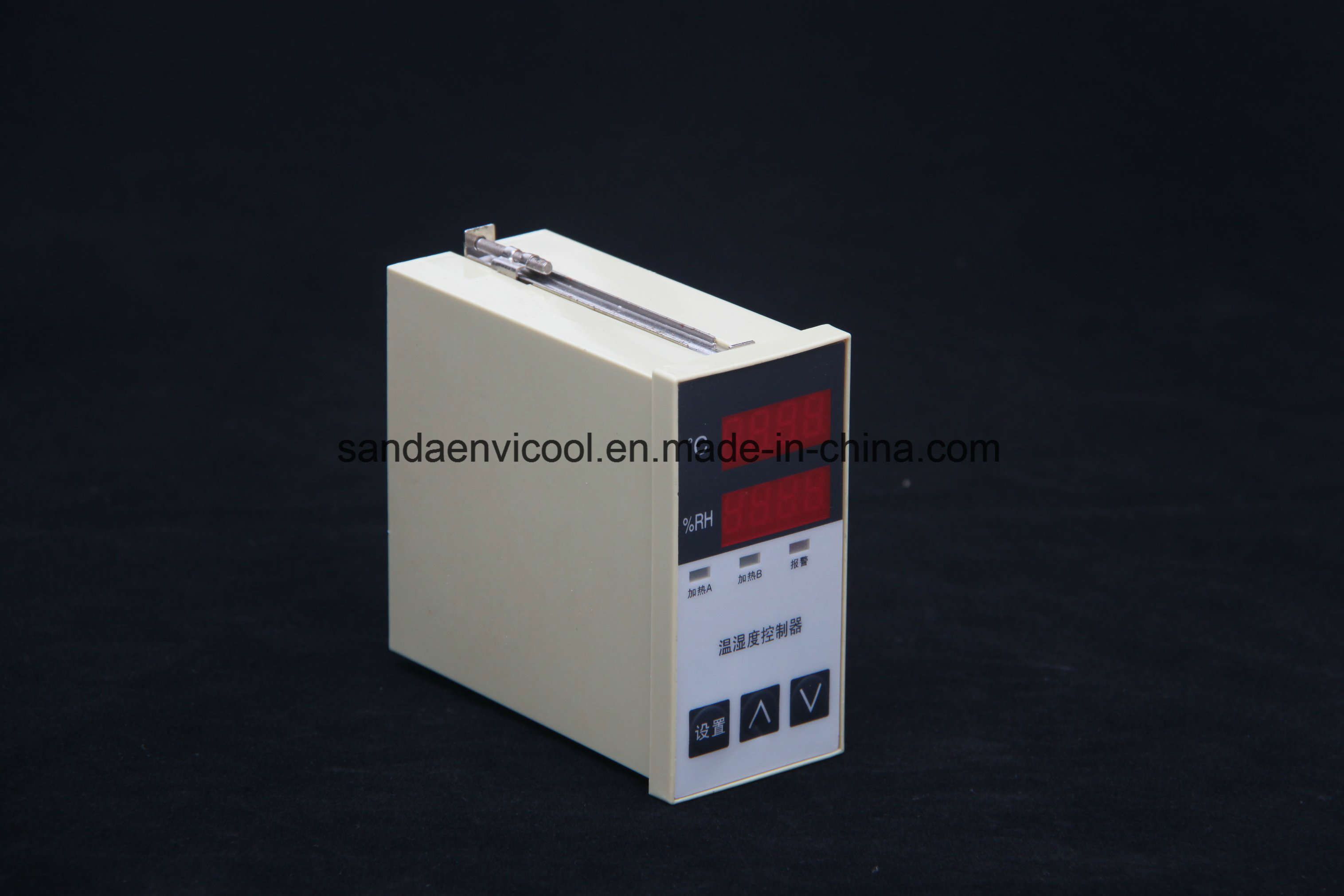

3.Alarm the heating output. the value and fixed value so as to control the output loadsTemperature and humidity controller display
