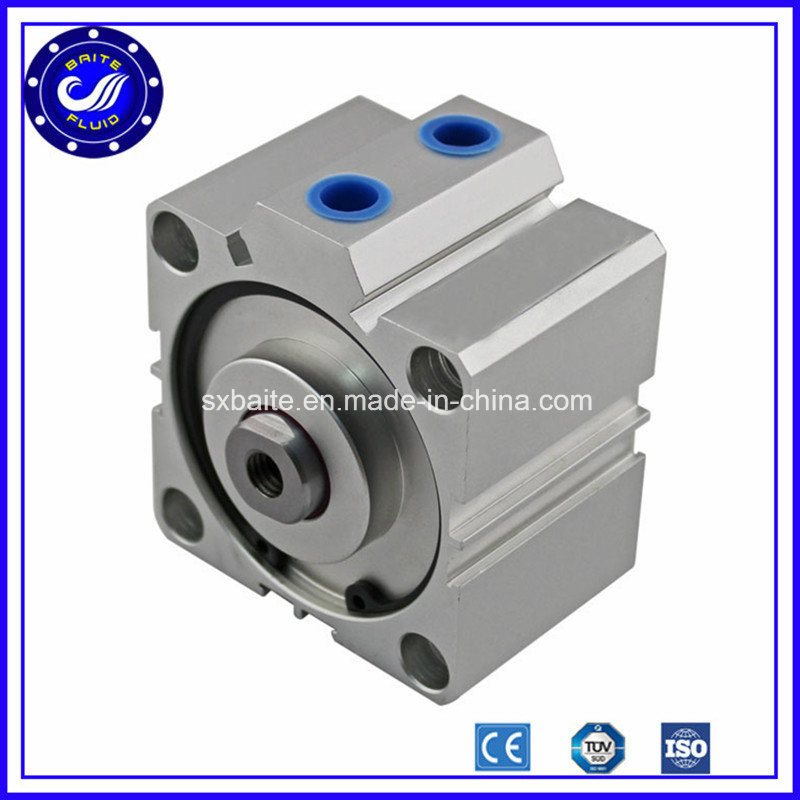

Sda Standard Festo Compact Pneumatic Air Cylinder

Name: Sda Standard Festo Compact Pneumatic Air Cylinder
Brand: all-electronics-online.com
SKU: 725836412
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 1-9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	pneumatic air cylinder BTF-PC-017
Stroke:	5-3000 mm
Working Pressure:	0.5-10 Bar
Working Temperature:	-20deg--80deg
Model Type:	Compact Air Cylinder
Bore Diameter(mm):	32-40-50-63-80-100-125-160-200-250-320mm
Cylinder Action:	Single Acting or Double Acting
Operating Medium:	Filtered Compressed Air, with or Without Lubricati
Type Standard:	ISO15552,ISO6431,DIN
Name:	Festo Compact Pneumatic Air Cylinder
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Standard
Pressure Direction:	Double-acting Cylinder

Product Description

sda standard festo compact pneumatic air cylinder

Product Features
1,Manufactured by our enterprise;
2,Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable;
3,The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability;
4,The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation;
5,Compact structure can effectively save installation space;
6,There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch;
7,Mounting accessories with various specifications are optional.

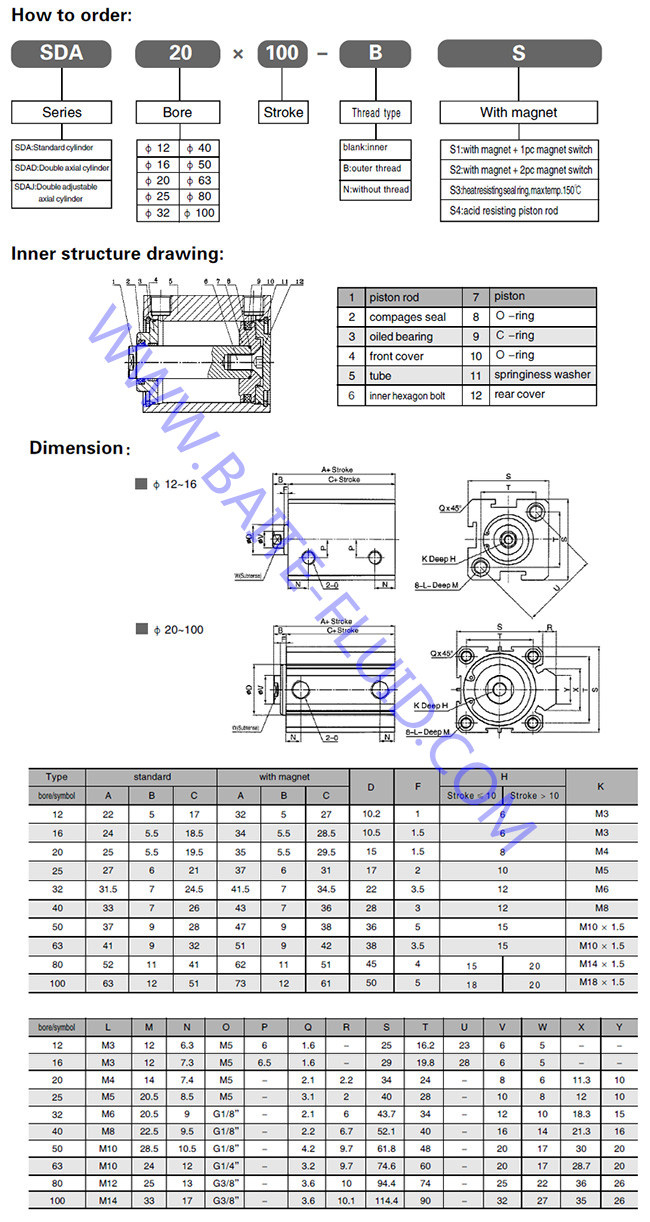

Product specifications

Bore Size(mm)	12	16	20	25	32	40	50	63	80	100
Acting Type	Double Acting Type
	Single Acting-Push Type Single Acting-Pull Type								-----
Fluid	Air(to be filtered by 40um filter element)
Operating Pressure	0.15-1.0Mpa(0.20-145Psi)
Proof Pressure	1.5Mpa(215Psi)
Speed Range (mm/s)	Double Acting Type:30-500 Single Acting Type:50-500
Cushion type	Bumper
Port Size	M5*0.8				1/8"		1/4"		3/8"

Product Description

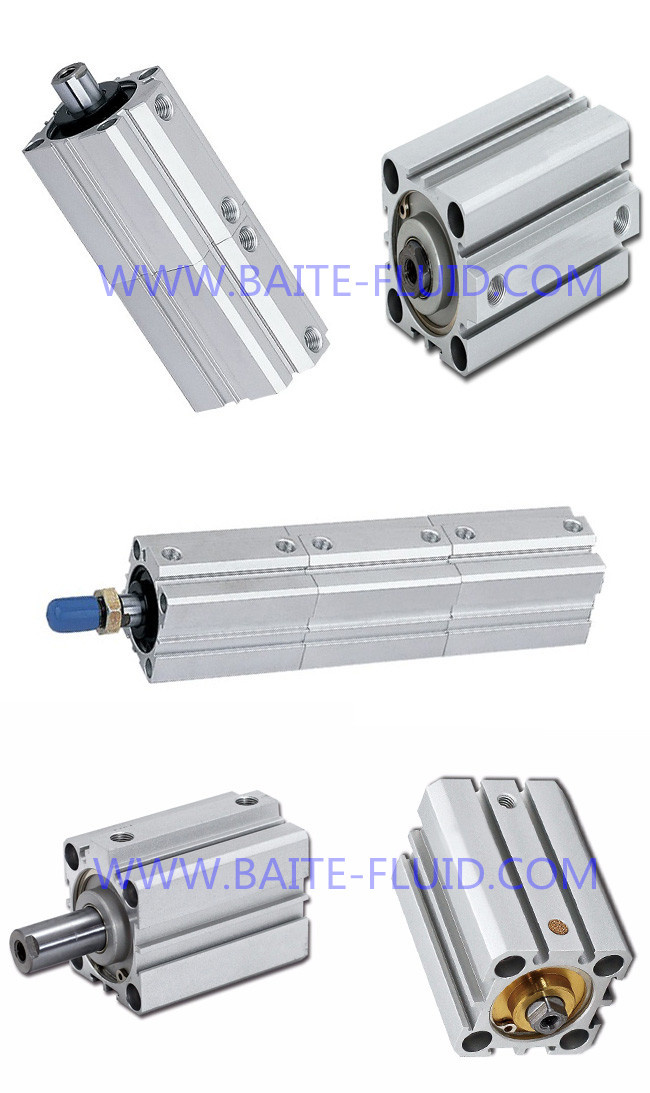

Product Show

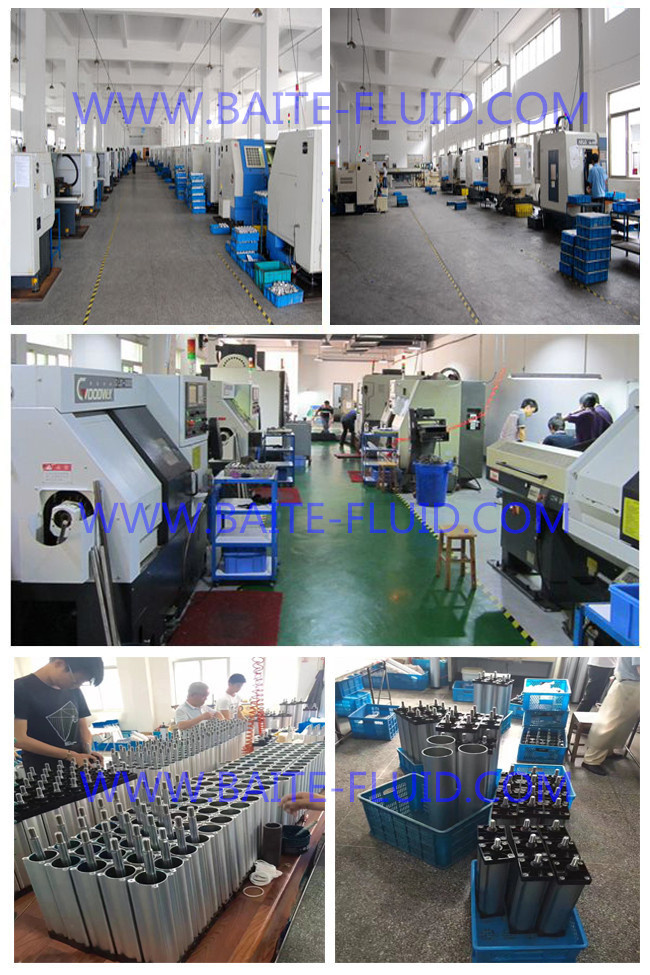

Production Workshop

Contact Us

All products can be customerized designed . We will supply professional service within 24 hours .Welcome to contact .

Shanxi Baite Fluid Machinery Co., Ltd ( Baite-Fluid, BTF ) is one of the professional domestic and foreign manufacturer and trader in forgings, pneumatic products and machined parts. Baite-Fluid is located in Shanxi Province, in north area of China and has been served over 10 years with rich resources of industrial raw material & power supply in a variety of industries. The company has always been to innovation management and technology, keeping the management, technical level and quality level with the world.

Our products are as below:

1. Standard Flanges.

2. Wind tubine tower connecting flange, wind power tower flanges.

3. Forged Steel Rings, seamless steel rolled rings.

4. Various of large forging parts, large size flange for GB, ANSI, DIN, JIS, EN1092-1 standard and OEM drawing accordingly.

4. Pneumatic cylinder, solenoid valve, manifold, FRL and other pneumatic tube and fittings.

5. Machinery parts.

6. Stamped parts.

7. Oil lubricator system.

They are widely used in power plants, petroleum, chemical industry, building materials, water treatment, urban construction and other industries. The products are well solid in domestic and foreign to get the praise from users.

Today our aim is to provide all of our customers with VALUE of the products instead of only low prices. Based on years of experience, fluent communication and professional quality control, we guarantee on time response, on time delivery and cost saving to meet customers' expectation. In a word, you can find one station service here for 24 hours.

Welcome to contact us right away for more information, our team will be always ready to prepare a quotation for your present or future projects.
