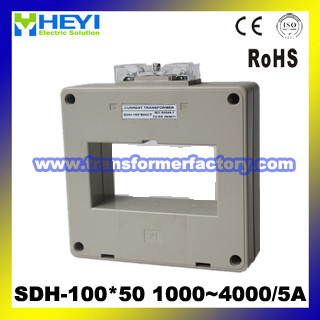

| Prod Model: |
SDH-100*50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Window Size: |
100*50mm |
| Color: |
White |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Specifications:
The transformer is used for measuring and monitoring voltage or current in the circuit.
1. High accuracy
2. Cast resin type
BH-0.66 / LMK1-0.66 Type Current Transformer.
The transformer is one of the important electrical appliances in electric system. It is similar to power transformer to transform voltage or current in the circuit. However, transforming voltage and current by power transformer mainly used to transfer the electric energy, while transforming votlage and current by transformer is to measuring and montoring votlage and current in the circuit.
Generally, the power transformer have large capacity as well as have large change difference of voltage or current, while transformer have smaller capacity as well as smaller change differenc of votlage and current.
In measuring circuit, the transformer that transform current and supply electricity for current meter and relay is called current transformer, the transformer that transform voltage and supply electricity for votlage meter and relay is called votlage transformer.
Model |
Rated Current(A)
Primary/Secondary |
Busbar Hole
Dimension |
Rated
Burden(VA) |
Accuracy
Class |
Rated
Voltage(V) |
Rated
Frequency
(Hz) |
SDH-40 |
100/5A~600/5A |
40*50mm |
1.5~5 |
0.5~1.0 |
720 |
50/60 |
SDH-60 |
300/5A~1000/5A |
60×50mm |
5~10 |
0.5~1.0 |
720 |
50/60 |
SDH-80 |
400/5~2000/5A |
80×50mm |
5~20 |
0.5~1.0 |
720 |
50/60 |
SDH-100 |
800/5A-4000/5A |
100×50mm |
10~30 |
0.5~1.0 |
720 |
50/60 |
SDH-120 |
1000/5-5000/5 |
120×50mm |
10~30 |
0.5~1.0 |
720 |
50/60 |
Type | Rated current | Rated power(VA) |
| Class0.5 | Class0.5s/0.2 | Class:0.2s |
| BH-100*50II | 1000/5 | 10 | 10 | 10 |
| BH-100*50II | 1200/5 | 15 | 15 | 15 |
| BH-100*50II | 1500/5 | 15 | 15 | 15 |
| BH-100*50II | 1600/5 | 15 | 20 | 20 |
| BH-100*50II | 2000/5 | 15 | 20 | 20 |
| BH-100*50II | 2500/5 | 15 | 20 | 20 |
| BH-100*50II | 3000/5 | 20 | 20 | 20 |
| BH-100*50II | 4000/5 | 20 | 20 | 20
|
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.
Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ?
Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yueqing city , zhejiang Province , P.R. China . It takes about 4 hours from SHANGHAI by train and 45 minute by air . It is very pleasure for clients to visit us.
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
