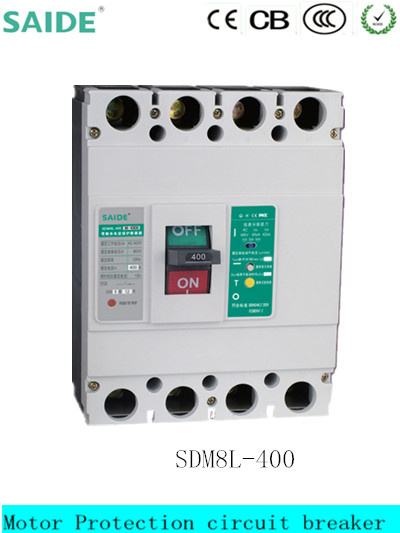

Sdm8l Moulded Case Circuit Breaker

Name: Sdm8l Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 818300295
Availability: InStock
Rating: 4.3 (62 reviews)

Price:	US $ 10-12/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SDM8L
Color:	White
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	3
Certification:	CCC
Structure:	RCCB
Type:	RCCB
Function:	Overload, Short-Circuit, Current Leakage

Product Description

Application
SDM8L series Residual Current Circuit Breaker mainly applies to distributing systems of 50/60Hz, 400/690V, 10~800A. It can effectively offer indirect contact protection for people as well as preventing fire hazard caused by damaged insulation equipments, it can also protect power systems against overload, short-circuit, etc.
Date

Model	Rated current In(A)	Phase	Rated working voltage Ue(V)	Rated insulation voltage Ui(V)	Rated frequency	Rated withstand voltage Uimp(kV)	Rated Ultimate short-circuit breaking capacity Icu (kA)	Rated working short -circuit breaking capacity Ics(kA)	Rated residual current (active) IΔn(mA)	Rated residual current (inactive) IΔn(mA)

SDM8L-100L	10,16,20,25,32,40,50,63,80,100	3,4	400	690	50	6	35	18	30/100/500	15/50/250
SDM8L-100M		2,3,4					50	25	100/300/500	50/100/250
SDM8L-225L	100,125,160,180,200,225	2,3,4					35	18	30/100/500/100/300/500	15/50/250/50/100/250
SDM8L-225M							50	35
SDM8L-400L	225,250,315,350,400	3,4					50	35
SDM8L-400M							65	42
SDM8L-630L	400,500,630	3,4					50	35	300/500/1000	150/250/500
SDM8L-630M							65	42
SDM8L-800L	630,700,800	3,4					50	35
SDM8-800M							75	37.5

Pictures

Our information

CHINA * SAIDE ELECTRIC CO.,LTD

Address : Qiligang industrial Zone ,Liushi,Yueqing ,Zhejiang,China

Tel:0086-577-62755267

Phone:18657700751

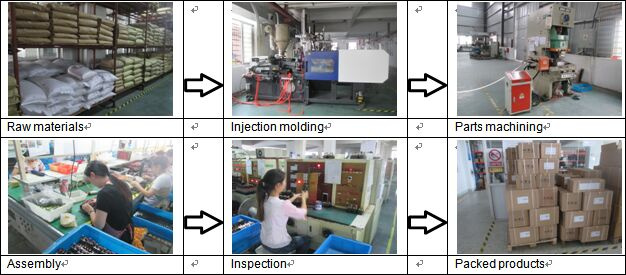

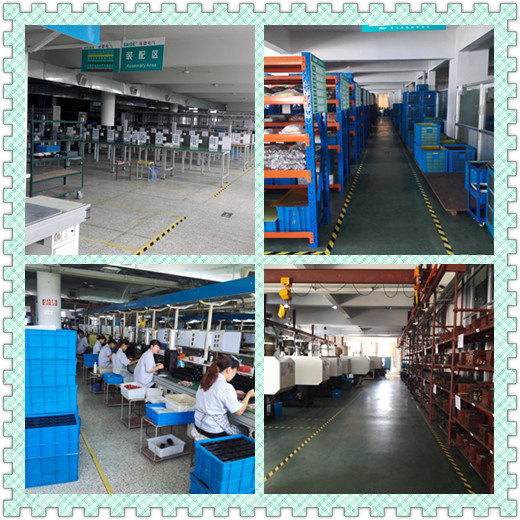

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
