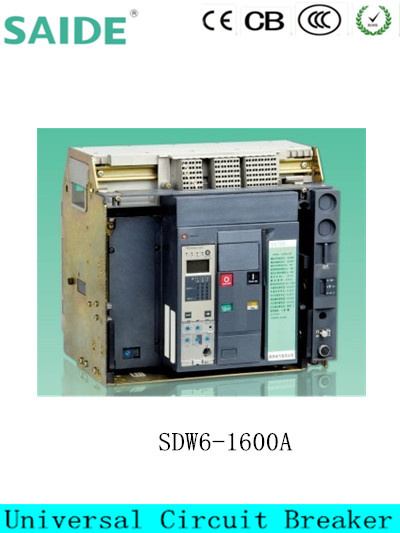

Sdw6-1000 Intelligent Universal Circuit Breaker

Name: Sdw6-1000 Intelligent Universal Circuit Breaker
Brand: all-electronics-online.com
SKU: 818394205
Availability: InStock
Rating: 4.3 (105 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SDW6
Color:	White
Functional:	Overload, Undervoltage, Short-Circuit
Structural Max Current:	3200AMP
Warranty Time:	2 Years
Service:	OEM&ODM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

1.Application
SDW6-1000 series universal circuit breaker(hereinafter referred to as breaker)is suitable
for the circuit of AC 50/60Hz with rated voltage 400Vand rated current up to 1000A.
It is mainly used to distribute electric energy and protect circuits and power-supply
equipment from overload, under-voltage, short-circuit and single-phase earthing. with
intelligentized and selective protection functions, the breaker can improve the reliability
of power supply, and avoid unnecessary power failure. The breaker is applicable for
power stations, factories, mines(for 690V) and modern high-buildings, especially for the
distribution system of intelligentized building. This breaker conforms to IEC60947-2 and
GB14048.2. The whole series have past CCC certification.
2.Technical date sheet

Model		SDW6-1000

Phase		3,4
Rated short -circuit breaking capacity		Icu=42kA Ics=Icw/1s=30kA

Rated current In (A)		200,400,630,800,1000
Rated voltage Ue(V)		400
Rated insulation voltage Ui(V)		690
N phase max continuous current In(A)		100%In
Breaking Time (ms)		23-33
Flashover distance (mm)		0
Operating lifespan	Electrical	1000
	Mechanic	9000
Installation type		Fixed type,Drawable type
connection type		Horizontal , Vertical
wiring type		Upper connection,Lower connection
weight		Fixed 3P/4P:22/26.5 Drawable 3P/4P:38/55

3.Categories of Intelligent Air Circuit Breaker(ACB)
1. Our air circuit breaker can be of two installation types: fixed type and draw-out type
2. Number of poles: 3 pole and 4 pole
3. Operation type: manual operation, auto operation
4. Trip types: Intelligent controller, under voltage instant ( or time delay type) trip and shunt trip

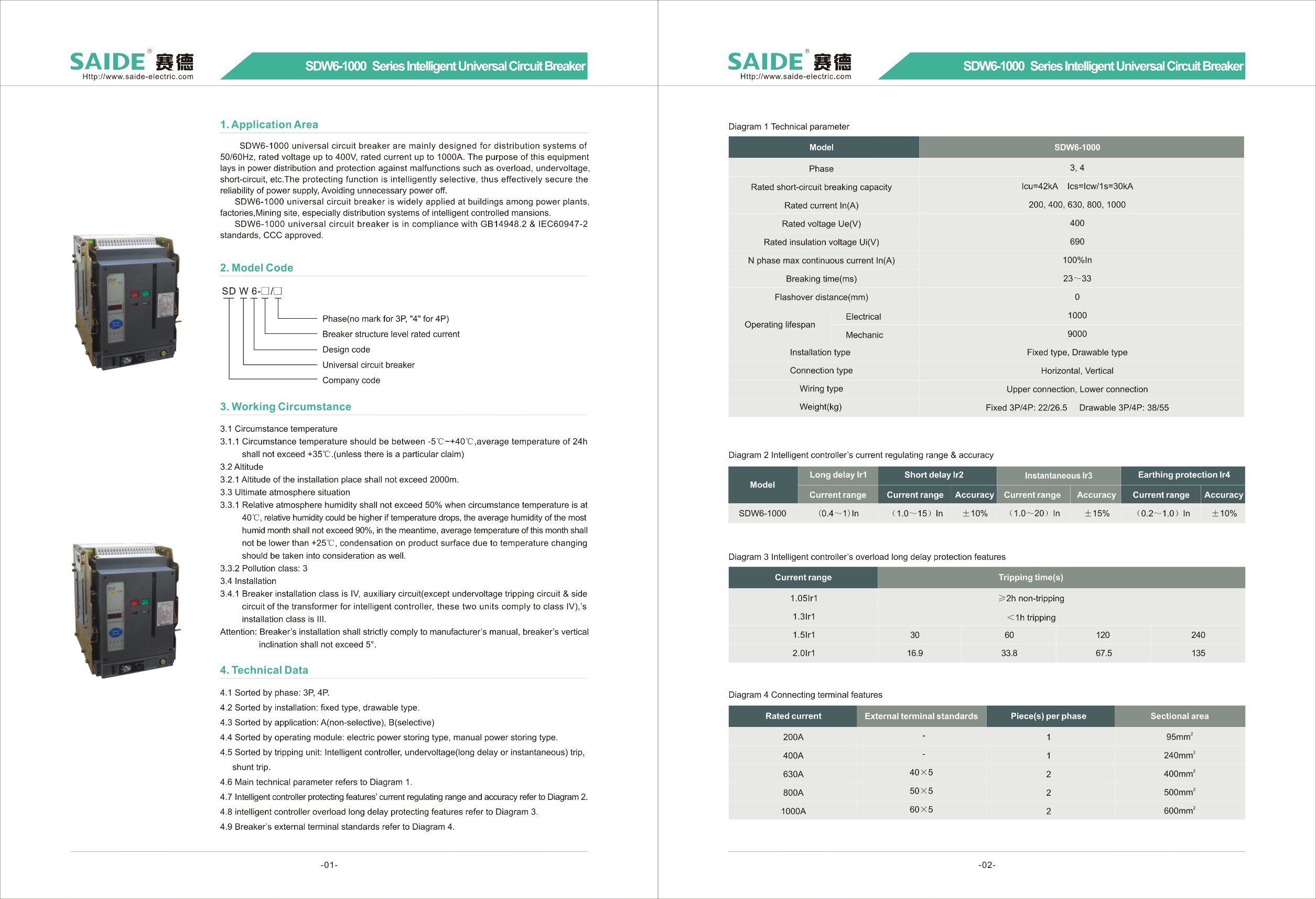

4.Catalog

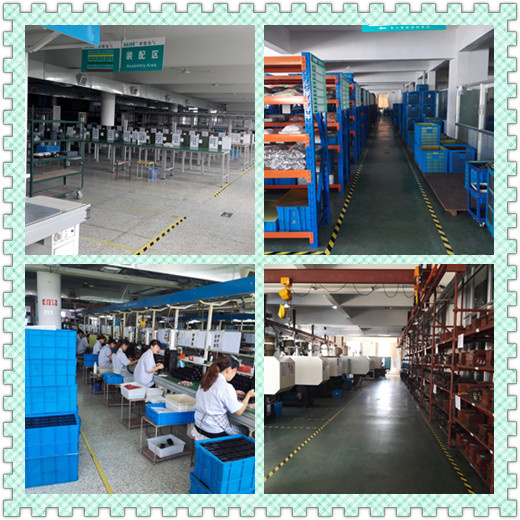

5.About our factory

CHINA * SAIDE ELECTRIC CO.,LTD

Address : Qiligang industrial Zone ,Liushi,Yueqing ,Zhejiang,China

Tel:0086-577-62755267

Phone:18657700751

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
