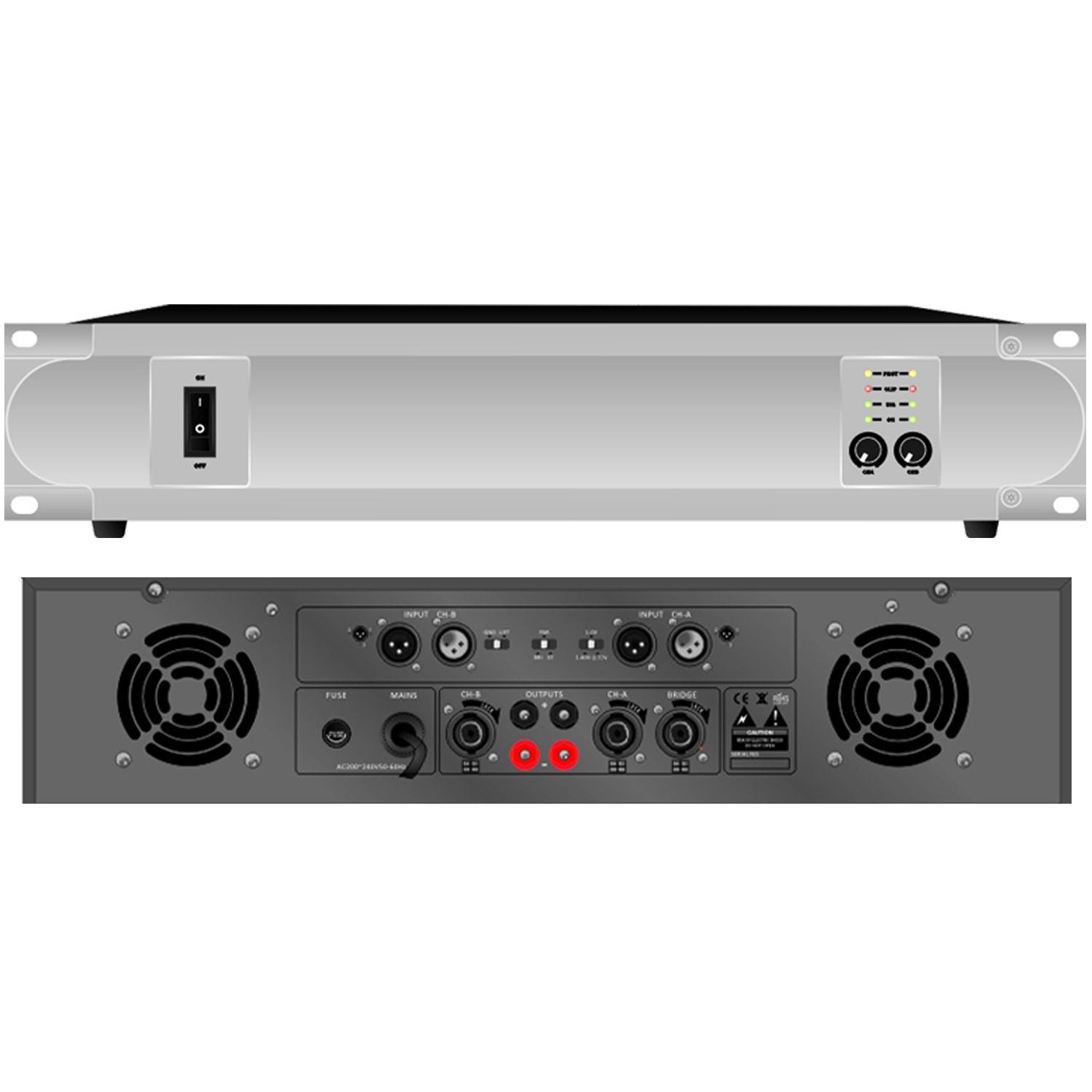

Se-2300 Series Public Address Professional Power Amplifier
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SE-2300,SE-2400,SE-2500,SE-2600,SE-2800,SE-21000 |
| Type: |
Professional Amplifier |
| Usage: |
Public Address System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Professional Power Amplifier |
| Output Number: |
1 |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
Mono |
Product Description
Why choose Pusheng audio?
1. Quality is our culture.
2. With us your money in safe, your business in safe.
3. Providing with exceptional service, saving your time and money.
4. One of market leader for audio business since 2004.
5. Direct factory provides you factory price, no middle man.Professional Power Amplifier SE-2300 SE-2400 SE-2500 SE-2600 SE-2800 SE-21000 SE-21500| FEATURES: |
Big power margin, the special design of the large radiator and ball-free fan of the excellent cooling system to ensure the stability of the amplifier and excellent performance.
A separate power supply for each channel solves the problem of poor resolution.
The use of high-speed MOSFET voltage switching technology to solve the problem of easy signal distortion.
The output transistor is mounted directly on the heat sink without the use of an insulating material, greatly increasing the heat transfer efficiency, increasing transistor lifetime and damping factor.
Soft-start, surge protection design, improve the protection of product operation, automatic pressure limit function to protect the speaker will not be damaged in the case of overload.
Overload, overheating, DC output and short circuit protection.
Stereo, bridge and parallel operation and 0.775V / 1.0V / 1.44V input sensitivity selection. |
| TECHNICAL PARAMETERS: |
| Model: | SE-2300 | SE-2400 | SE-2500 | SE-2600 | SE-280 | SE-21000 | SE-21500 |
| Output power @ Stereo 8Ω: | 2×300W | 2×400W | 2×500W | 2×600W | 2×800W | 2×1000W | 2×1500W |
| Output power @ Stereo 4Ω: | 2×500W | 2×650W | 2×800W | 2×980W | 2×1280W | 2×1680W | 2×2400W |
| Output Power @ Bridge 8Ω: | 920W | 1200W | 1500W | 1850W | 2400W | 2800W | 4500W |
| Output Power @ Bridge 4Ω: | 1200W | 1600W | 2000W | 2400W | 3200W | 3600W | 6000W |
| Frequency response: | 20Hz~20KHz±0.35dB |
| THD: | 0.05% |
| Inter modulation distortion: | 0.05% |
| S/N rated: | >101dB |
| Input common rejection ratio: | >76dB |
| Channel separation: | >76dB |
| Damping coefficient: | >200 |
| Amplifier circuit: | dual power supply, AB class |
| Input:Impedance: | 20KΩ balanced input |
| Conversion rate: | 40V/us |
| Input:Sensitivity: | +2.1dBu(1.0Vrms) |
| Maximum input level: | +22.0dBu(10.0Vrms) |
| Dynamic pressure limit: | automatic intelligence |
| Protection circuit: | soft start, input surge limit, output short circuit, DC, overload protection, main fuse protection, switch mute protection, RF interference protection |
| Cooling: | 3 DC variable speed fan, the air flow direction from front to back |
| Panel instructions: | power, clip, pressure limit, signal |
| Rear Panel Connector: | Input:Female 3-pin XLR×2; Output:Male 3-pin XLR×2, 4-hole SPEAKON connector×2, 2 group Special red-black terminal |
| Power consumption: | 520W | 630W | 750W | 960W | 1200W | 1600W | 2500W |
| Voltage: | AC 110V-240V50/60Hz(can be set by the manufacturer) |
| Size(W × H × D): | 484×90×400mm |
| Weight: | 23.5Kg | 25.3Kg | 26.5Kg | 28Kg | 30.4Kg | 35.4Kg | 38Kg |
Syeeke amplifier will provide you:
1.Fantastic nice sound quality
2.Workable price
3.3 years warranty
Syeeke amplifier provide following protection:
1. Soft start protection
2. Short circuit protection
3. DC protection
4. Limiting protection
5. Overheat protection
6. Input overload protection
7. Output overload protection
8. Output fading production

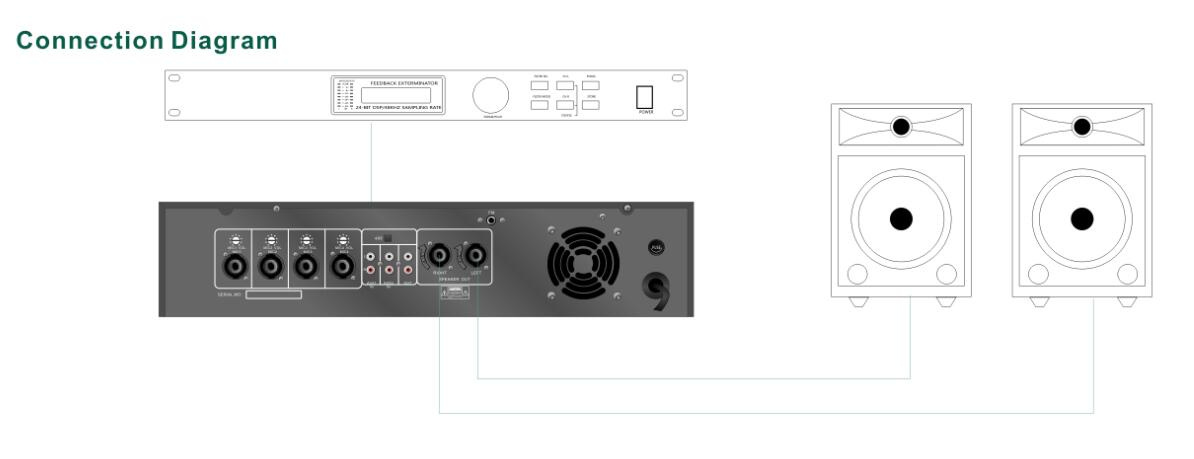

Connection Diagram:
Package
1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.
More details please visit our website:
www.syeeke.com
NOTICE:
Pusheng Audio will display speakers and amplifiers at Guangzhou Prolight&Sound Exhibition
Date: 10-13rd May, 2018.
Address: Area A, China Import & Export Fair Complex,Guangzhou
Booth No.:
Foshan Nanhai Pusheng Audio Equipment Factory is the leading IP public address system, Class-D Amplifier, IP network audio system, IP speaker & IP amplifier and conference system manufacturer in Foshan China, we have one around 2, 500 SQ meters factory and more than 100 employees. Our factory is well quality-oriented ensure to make sure the best raw material and 6 steps of on site QC and QA strict quality control. The quality control system is strictly followed by ISO9001 and ISO14001.
We commit 3 years quality warranty to our customer. Most of products are compliant with CE, RoHS, CCC, CB, EN54-16, C-tick, FCC or UL, and EN54-24 fireproof certificate.
We response our customer inquiry within 4 hours and we design sound system for our customer within 24 hours and we solve quality compliant within 48 hours with spare parts of new replacement.
We working with more than 24 worldwide distributors, we support original high qualified products, professional before sales and after sales service, we provide full range of company presentation, product technical documents and versatile system design templates to ensure end-customer easy understand the benefits our systems bring to them.
We customized different specification and different look amplifier and loudspeakers under customer brand name. We cherish the partnership by 100% respect customer brand name and intellectual property.
Our Motto: Surpass customer expectation is our mission.
Our Product Range:
1. Public address system, background music system, paging system & PA sound system.
2. Public address mixer amplifier, power amplifier and class-D amplifier.
3. Public address ceiling speaker, column speaker, horn speaker, wall mount speaker, fashion speaker, garden speaker, projection speaker
4. IP network audio system & IP PA system & IP public address system.
5. IP network intercom system.
6. Audio Conference system, wireless conference system, simultaneous interpretation system.
7. HD Video Conference System
8. PRO mixing console.
9. PRO amplifier, digital class-D stereo amplifier and digital class-D four channel amplifier
10. PRO loudspeaker
11. Microphone, wireless mic, wired tabletop mic, wired dynamic mic
12. Volume control
Our Slogan: Security for better life.
Our Goal: To be Digital Public Address System & Conference System Expert.
