Se 25mm IP65 Non-Screen Shield Oval Type Inductive Proximity Switch Sensor Dia 55 X 35

Name: Se 25mm IP65 Non-Screen Shield Oval Type Inductive Proximity Switch Sensor Dia 55 X 35
Brand: all-electronics-online.com
SKU: 840278445
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SE
Standard:	Standard
Certification:	CE
Type:	Proxmity Sensor
Principle:	Inductive
Wires:	3-Wires, 2-Wires, 4-Wires,
Application:	Other
Size:	Dia 55 X 35

Product Description

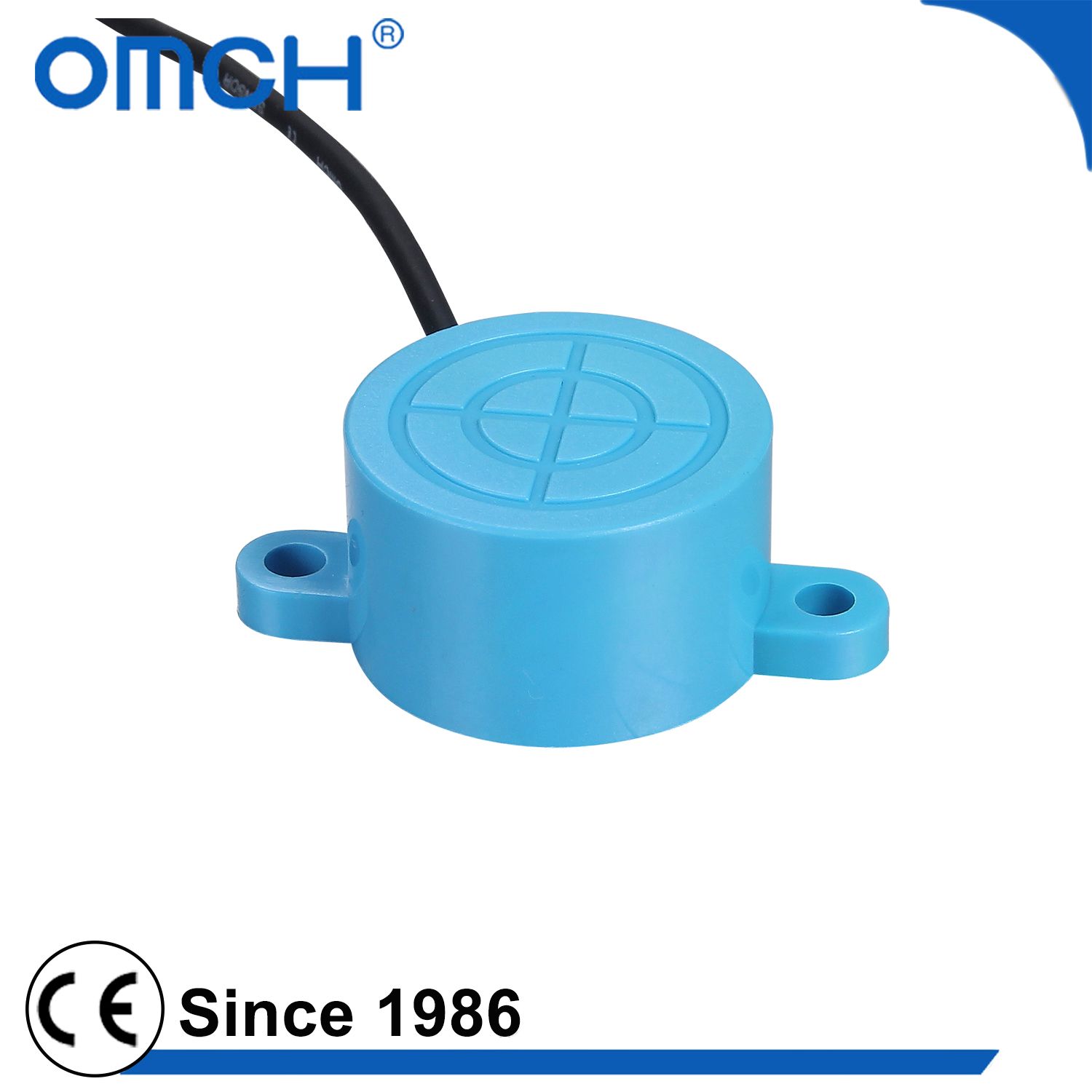

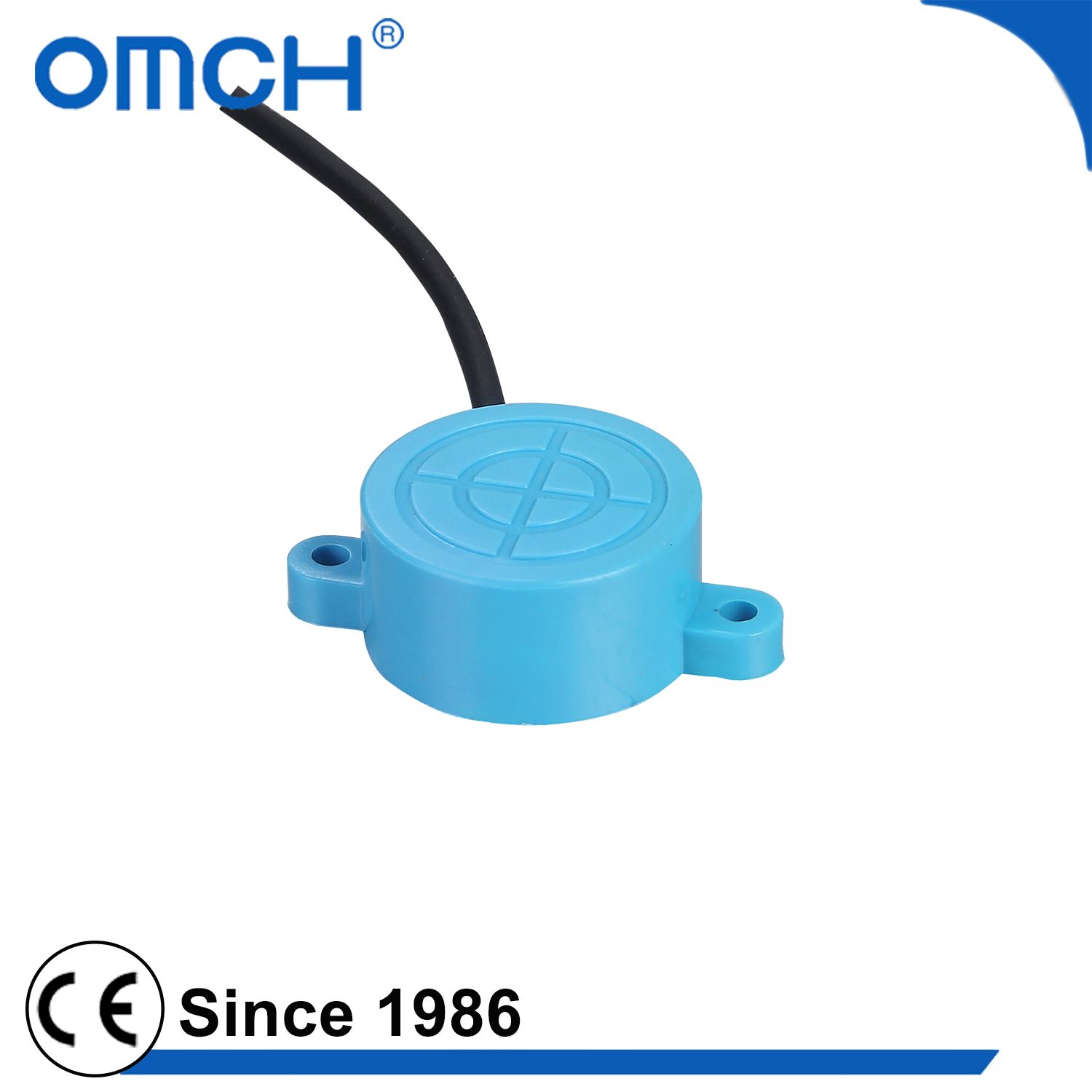

SE 25mm IP65 Non-screen Shield Oval Type Inductive Proximity Switch Sensor Dia 55 x 35

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

The latest high frequency, strong anti-interference proximity switch series
Power supply reversal connection protection;Short-circuit protection, can directly connect with PLC
Used in common places with medium environment resistance
Red LED indicates that it's available to derect the sensor operating state
IP65 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

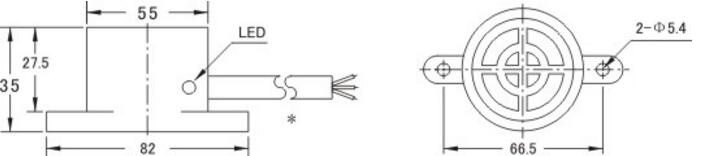

Dimension				Dia 55x35
Mounting way				Non-Screen shield type
T Y P E	DC type	N P N	NO	ASE-3025N1
			NC	ASE-3025N2
			NO+NC	ASE-3025N3
		P N P	NO	ASE-3025P1
			NC	ASE-3025P2
			NO+NC	ASE-3025P3
		Two wire	NO	ASE-3025D1
			NC	ASE-3025D2
	AC type	Two wire	NO	ASE-2025A1
			NC	ASE-2025A2
		Three wire	NO+NC
Detection distance				25 mm+/-10%
Set distance				0~22mm
Standard detection object				Iron75751
Response frequency				DC:1Khz AC:50Hz
Delay distance:				10% below of the detection distance
Detection object				Magnetic metal (the detection distance decreases when it is non-magnatic metal)
Supply voltage				DCtype:DC12-24V(6-36V)Impulse(p-p)10%below Actype:AC110-220V(36-250V)50/60Hz
Insulation resistance				50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage				AC1000V50/60Hz 1 min between charging and housing
Temperature influence				Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence				Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture				IP65 ICE specification
material				(Housing ABS), Detection surface:ABS)

EXHIBITION

M18x1

1. Q: What certifications do you get?

A: We have CE RoHS, etc.

2. Q: Do you provide guarantee for the goods?

A: Yes, and all goods are offered 1year quality guarantee.

3. Q: Are OEM&ODM available?

A: Yes, we accept OEM and ODM.

4. Q: How to pay?

A: T/T and west union are acceptable.

5. Q: What is the delivery time?

A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after the payment.

6. Q: What about the Package?

A: Standard export package (paper carton) for shipment, or package as you need.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
