Se-5880 Series IP Network PA Mixer Amplifier
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SE-5880, SE-5816, SE-5824, SE-5836 |
| Type: |
Professional Amplifier |
| Usage: |
IP Network PA System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Output Number: |
1 |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
Mono |
Product Description
Why choose Pusheng audio?
1. Quality is our culture.
2. With us your money in safe, your business in safe.
3. Providing with exceptional service, saving your time and money.
4. One of market leader for audio business since 2004.
5. Direct factory provides you factory price, no middle man.
SE-5880 SE-5816 SE-5824 SE-5836| FEATURES: |
Standard chassis design, 1.5U aluminum panel, user-friendly hand-pumping design, handsome and practical.
7-channel audio input, including 3 standard line signal, 4 standard mic signal.
1 audio input, can be connected to audio input of the next amplifier.
Two - band parametric equalizer to improve the sound quality, used to adjust the bass and treble and improve sound quality.
MIC1&3 with the highest priority, automatically mute when signal in.
Junction FET priority conversion, to ensure that no signal distortion in the process of mute.
Professional noise control output to ensure that the squelch of background music.
Output:70V,100V,4-16Ω.
Line safety protection, to ensure that output load working safely under short circuit, overload and other harsh environments.
Peak negative feedback protection. Its a severe test for terminal speakers and machine, when signal distortion, shock, or a serious line voltage overvoltage, peak negative feedback can effectively prevent distortion and overpressure of signal and line voltage in any load environment.
Integrated cross-tone compensation circuit, correct HF loss caused by transformer, so that spectrum curve straight, beautiful sound.
High frequency octave cut circuit to ensure safe operation of the boost system.The use of low-cut with sound compensation technology, can remove ultra-low frequency which is a hidden danger of the boost system, guarantee sound quality without losing.
Built-in network IP decoding module, support TCP / IP, UDP, IGMP (multicast) protocol, network transmission 16-bit stereo CD sound and music signals. |
| TECHNICAL PARAMETERS: |
| Model: | SE-5880 | SE-5816 | SE-5824 | SE-5836 |
| Rated power: | 80W | 160W | 240W | 360W |
| Output: | 70V,100V,4-16Ω |
| Network protocol: | TCP,UDP,ARP,ICMP,IGMP |
| Network chip rate: | 10/100Mbps |
| Audio coding: | MP2/MP3/PCM/ADPCM |
| Audio sampling, bit rate: | 8KHz~44.1KHz, 16bit, 8Kbps-320Kbps |
| Network sound delay: | broadcast delay ≤ 100ms |
| Input Sensitivity / Impedance: | MIC 1,2,3: 5mV / 600Ω, unbalanced TS terminal AUX1, 2,3: 350mV /10KΩ, unbalanced RCA |
| Output sensitivity / impedance: | 1000mV / 470Ω, unbalanced TS terminal |
| Overload source EMF: | MIC 1, 2, 3:> 12dB, unbalanced TRS AUX 1, 2,3:> 20dB, unbalanced RCA |
| Tone (Bass): | ±10dB at 100Hz |
| Tone (treble): | ±10dB at 10KHz |
| Frequency response: | 50-16KHz(+1dB,-3dB) |
| S/N rated: | MIC 1,2,3,4:66dB; AUX 1, 2.3:80dB |
| Distortion(THD): | 0.5%@1KHz, 1/3 rated output power |
| Mute function: | MIC 3 priority other channels |
| Channel crosstalk attenuation: | ≤50dB |
| Cooling: | forced air from the front to back, built-in fan starts when radiator temperature 45 degrees |
| Protection: | overheat, overload & short circuit |
| Power supply: | AC 220V / 50Hz |
| Power consumption: | 100W | 240W | 360W | 450W |
| Weight: | 6Kg | 8Kg | 12Kg | 14Kg |
| Dimension(W×H×D): | 484×66×360mm |
| Material: | white aluminum panel, SPCC cold-rolled plate chassis |

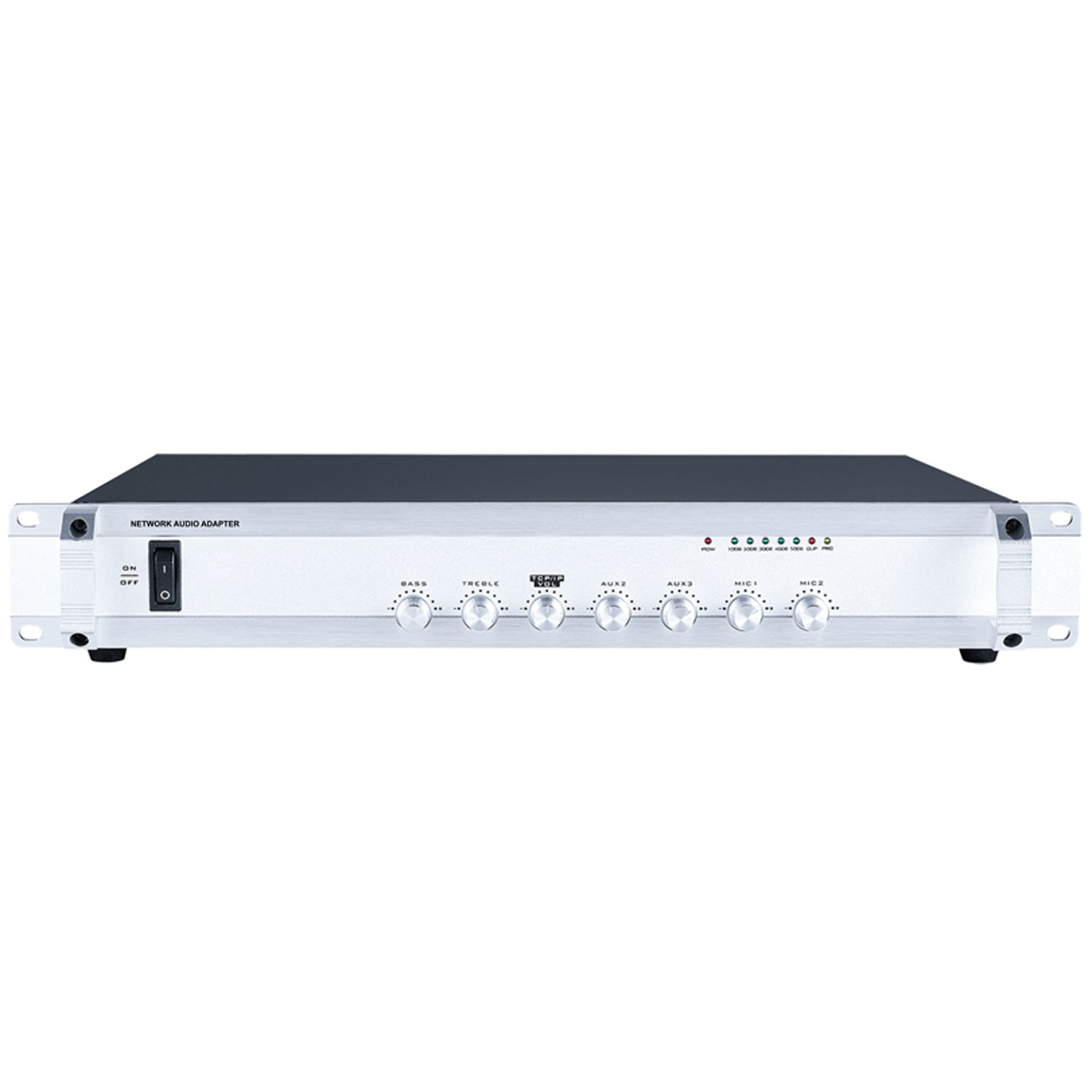

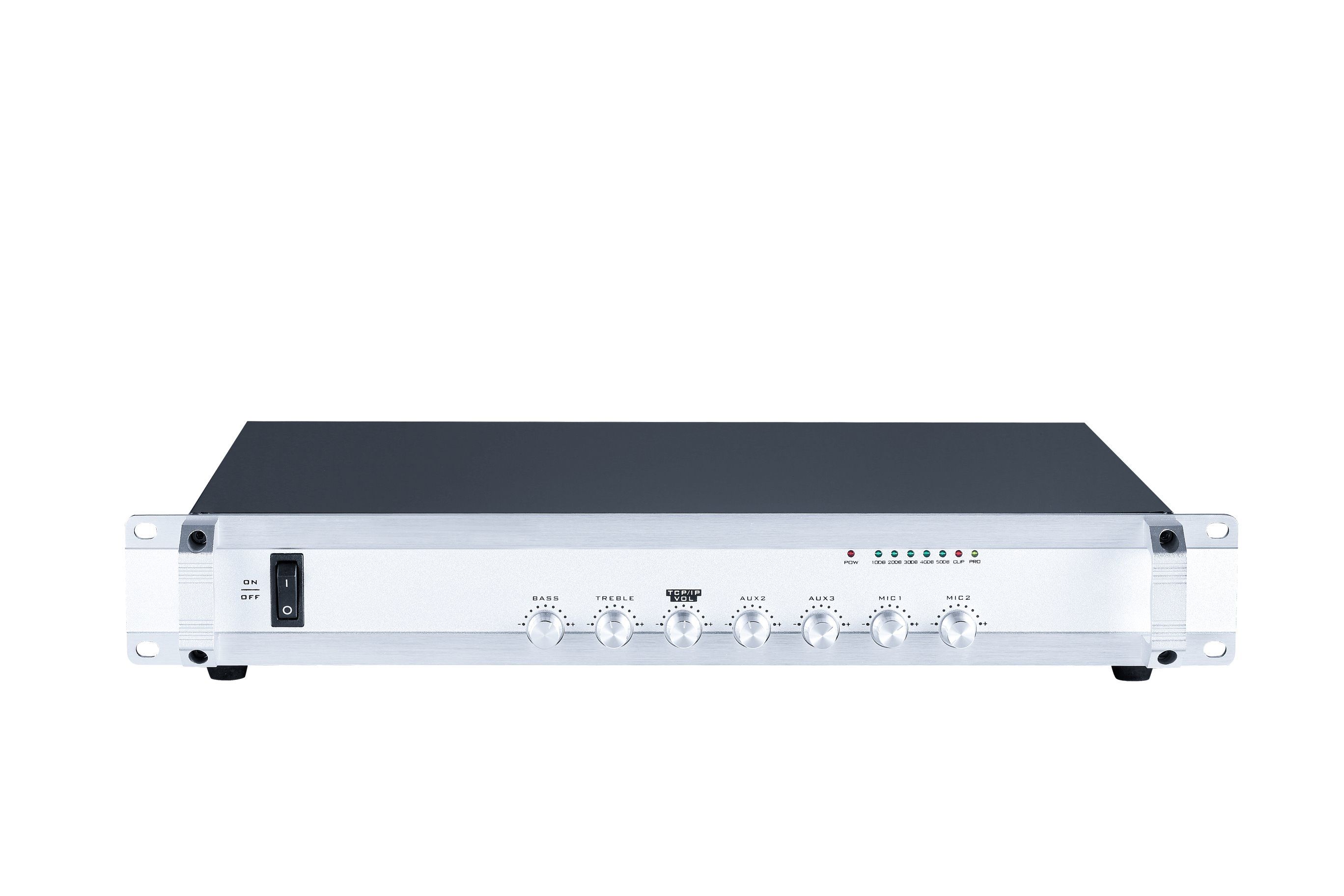

Front Panel:

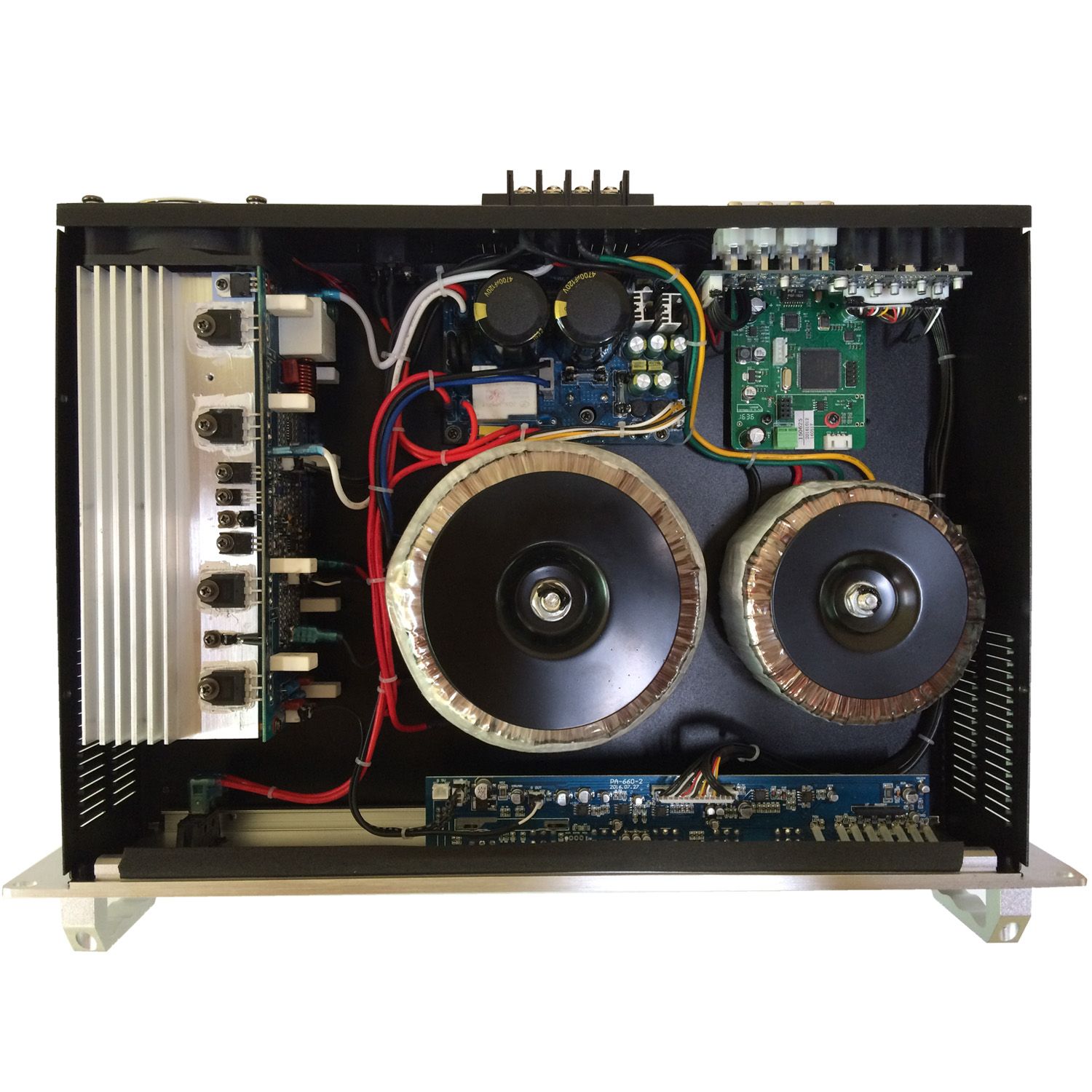

Inside:
Syeeke amplifier will provide you:
1.Fantastic nice sound quality
2.Workable price
3.3 years warranty
Syeeke amplifier provide following protection:
1. Soft start protection
2. Short circuit protection
3. DC protection
4. Limiting protection
5. Overheat protection
6. Input overload protection
7. Output overload protection
8. Output fading production

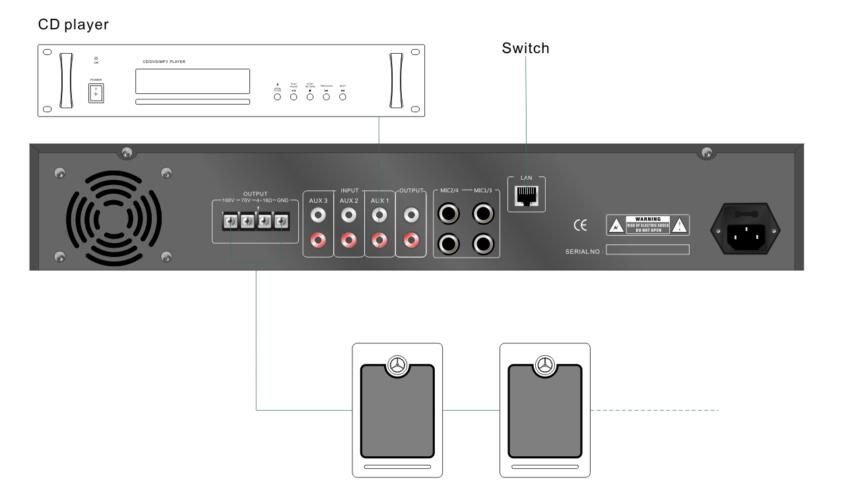

Connection Diagram:
Package
1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.
More details please visit our website:
www.syeeke.com
NOTICE:
Pusheng Audio will display speakers and amplifiers at Guangzhou Prolight&Sound Exhibition
Date: 10-13rd May, 2018.
Address: Area A, China Import & Export Fair Complex,Guangzhou
Booth No.:
Foshan Nanhai Pusheng Audio Equipment Factory is the leading IP public address system, Class-D Amplifier, IP network audio system, IP speaker & IP amplifier and conference system manufacturer in Foshan China, we have one around 2, 500 SQ meters factory and more than 100 employees. Our factory is well quality-oriented ensure to make sure the best raw material and 6 steps of on site QC and QA strict quality control. The quality control system is strictly followed by ISO9001 and ISO14001.
We commit 3 years quality warranty to our customer. Most of products are compliant with CE, RoHS, CCC, CB, EN54-16, C-tick, FCC or UL, and EN54-24 fireproof certificate.
We response our customer inquiry within 4 hours and we design sound system for our customer within 24 hours and we solve quality compliant within 48 hours with spare parts of new replacement.
We working with more than 24 worldwide distributors, we support original high qualified products, professional before sales and after sales service, we provide full range of company presentation, product technical documents and versatile system design templates to ensure end-customer easy understand the benefits our systems bring to them.
We customized different specification and different look amplifier and loudspeakers under customer brand name. We cherish the partnership by 100% respect customer brand name and intellectual property.
Our Motto: Surpass customer expectation is our mission.
Our Product Range:
1. Public address system, background music system, paging system & PA sound system.
2. Public address mixer amplifier, power amplifier and class-D amplifier.
3. Public address ceiling speaker, column speaker, horn speaker, wall mount speaker, fashion speaker, garden speaker, projection speaker
4. IP network audio system & IP PA system & IP public address system.
5. IP network intercom system.
6. Audio Conference system, wireless conference system, simultaneous interpretation system.
7. HD Video Conference System
8. PRO mixing console.
9. PRO amplifier, digital class-D stereo amplifier and digital class-D four channel amplifier
10. PRO loudspeaker
11. Microphone, wireless mic, wired tabletop mic, wired dynamic mic
12. Volume control
Our Slogan: Security for better life.
Our Goal: To be Digital Public Address System & Conference System Expert.
