| Prod Model: |
SR100-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
171*71*207 Mm |
| Weight: |
5.6kg |
| Color: |
Black |
| Sealing: |
Glue Sealing |
| Terminal Type: |
Lead Bolt & Nut |
| Battery Case: |
ABS |
| Safety: |
Explosion-Proof |
| The Charging Current Rate: |
<0.3c |
| Separator: |
AGM |
| Customs Code: |
8507200000 |
| Type: |
Lead-Acid Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Nominal Voltage: |
2V |
| Usage: |
Solar |
| Shape: |
Rectangle |
Product Description
2V Battery

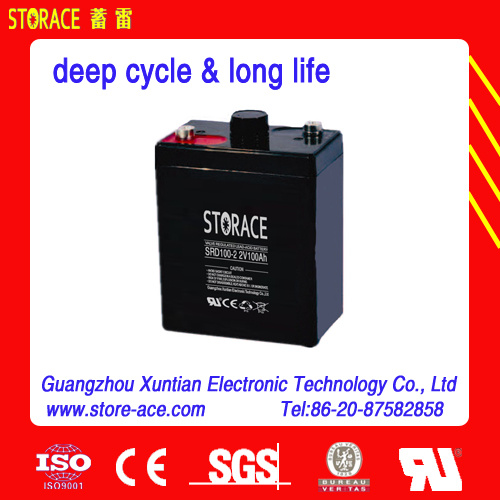

Sealed Lead Acid AGM Battery 2V 100AH
Specifications
1.2V lead acid battery
2. Low internal resisitance
3. Low self discharge
Charactics
1. Safety and Sealed
2. Maintenance-Free operation
3. Batteries do not need the equalizing charge
4. No Free Acid
5. Long life Design
6. High Reliability and stable quality
7. Self-discharge
8. Operating temperature
Application
Wind power system, Solar power system, Emergency lighting alarm systems, UPS(Uninterruptible power sypply) Telecommunications, Telephone exchanges control equipment, EPS instrumentation, Bank ATM System, Medical equipment, Fire and security system and so on.
Operation and maintenance manual
For maintenance free battery, it's free maintenance in the operation. But we can only use it in proper operation to keep the long lifetime of the battery,
(1) Battery Installation
Batteries should be installed possibly in a clean, cool, ventilated and dry place. The battery should be placed upright. Each terminal between the batteries is connected firmly.
(2) The ambient temperature
Ambient temperature is important factor for the battery operation. When the ambient temperature is too high, Battery plate corrosion will be increased, while absorbing more moisture; When the ambient temperature is too low, the battery will not be full charged. All this will affect the battery life. Therefore we suggest the working ambient temperature is around 25 º C.
(3) The charge and discharge current
Battery charge and discharge current usually uses the concept C, the actual value of C is related to the capacity of the battery. For example, a 100AH battery: 1C = 100A. Charging current is around 0.1C; The charging current must not be bigger than 0.3C. Discharge current general requirements in 0.05 ~ 3C range.
(4) Charging voltage
After the battery is full converted to float charging, the float voltage is around 13.0V. If the charging voltage is too high will cause the battery overcharge, otherwise the battery will not be full charged. Charging voltage is abnormal, it may be caused by the battery configuration error, or it may be caused by controller failure. Do not choose the controller with bad quality.
(5) The depth of discharge
Depth of discharge of the battery life is also a important factor for lifetime of battery, the deeper the battery discharge, the fewer the number of cycles, so battery should avoided from deep discharge.
(6) Regular maintenance
Battery should be regular checked in every period time after used, such as check its outlook, measuring the average voltage of each battery, etc.
|
Capacity 77° F(25º C) |
10 hours rate(10A 1.80V) |
100Ah |
|
5 hours rate(17.6A 1.75V) |
88Ah |
|
3 hours rate(25.8A 1.70V) |
77.4Ah |
|
1 hour rate(65A 1.60V) |
65Ah |
|
Internal Resistance |
Full charged battery 77° F(25º C): 1mΩ |
|
Capacity affected by Temperature (10 hour rate) |
104° F(40º C) |
102% |
|
77° F(25º C) |
100% |
|
32° F(10º C) |
85% |
|
5° F(-15º C) |
65% |
|
Self-Discharge 68° F(20º C) |
Capacity after 3 month storage |
90% |
|
Capacity after 6 month storage |
80% |
|
Capacity after 12 month storage |
60% |
|
Max discharge current77° F(25º C): 500A(5S) |
|
Charge (Constant Voltage) |
Float: 2.25 to 2.30V/77° F/(25º C) |
|
Cycle: 2.35 to 2.45V/77° F/(25º C) |
|
Max Current: 20A |
