Sealed Rechargeable Value Regulated Lead-Acid Battery 12V14ah 20hr
| Price: |
US $ 2-16/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL12140 |
| Size: |
151*98*95(mm) |
| Weight: |
4.00kg |
| Color: |
Black/ White/ Grey |
| Container Material: |
ABS |
| Company Type: |
Factory |
| Terminal Type: |
F1/F2 |
| Max Discharge Current: |
2100A(5s) |
| Internal Resistance: |
14m Ohm |
| Rated Capacity: |
14ah |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
12V14ah Rechargeable Lead Acid Battery for Electric Scooter Solar Power Battery UPS Battery
Model Number: TL12140
Product Description

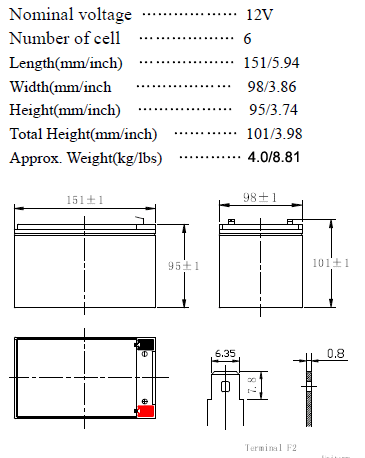

1.Specifications
2.General Features
-With high qualiity materials and advanced technology, long service life is available
-Low self-discharge will assure the product keep its full charge state for longer time
-Good electric conductivity can benefit our item to reduce its malfunction when using
-Capacity is sufficient to work during the standard time
-Safe and reliable venting system
-Wide operating temperature range
-Good sealing capacity
-Good charge acceptance performance
3.Applications
Our items are widely used in electronic power system, solar/wind power system, electronic equipments, UPS, emergency lighting system, etc.
4.Notice
-Battery must be charged in appropriate charger only.
-Never use a modified or damaged charger
-Store the battery in a cool, dry and well-ventilated area.
-Regulations vary from different countries. Dispose of in accordance with local regulations.
5.Certifications
6.Quality Assurance
- Equipment control
We adopt the entire computer automatic control (Density testing, adding acid, charging, etc.)
- Raw material control
Any raw material will be forbidden used in the production if they didn't pass the testing by laboratory strictly.
- Production process control
The semi-finished products must pass several inspections in the production line.
- Finished products control
Before packaging, the finished battery must be tested 100% by our function testing machine and pass the inner resistance testing, density testing, 3-5ºC discharge performance testing etc.
- Shipment control
The goods can't be sold unless their appearance and performance are tested 100% by the professional inspector.
7.More information, welcome to visit our website or contace me directly, all your comments will be hughly appreciated.http://www.sztlg.com/
http://www.telongbattery.com/
http://telongbattery.en.made-in-china.com/
| No. | MOdel No. | Nominal Voltage
(V) | Rated Capacitor
(AH) | Dimension(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL1222 | 12 | 2.2 | 70 | 47 | 103 | F1 | 0.8 |
| 2 | TL1223 | 12 | 2.3 | 178 | 34 | 66 | F1 | 0.92 |
| 3 | TL1230 | 12 | 3 | 134 | 66 | 66 | F1/F2 | 1.32 |
| 4 | TL1240 | 12 | 4 | 90 | 70 | 100 | F1/F2 | 1.3 |
| 5 | TL1245 | 12 | 4.5 | 90 | 70 | 100 | F1/F2 | 1.46 |
| 6 | TL1250 | 12 | 5 | 90 | 70 | 100 | F1/F2 | 1.46 |
| 7 | TL1256 | 12 | 5.6 | 90 | 70 | 100 | F1/F2 | 1.7 |
| 8 | TL1260 | 12 | 6 | 151 | 50 | 100 | F1/F2 | 1.8 |
| 9 | TL1270A | 12 | 7 | 151 | 65 | 100 | F1/F2 | 2.05 |
| 10 | TL1270B | 12 | 7 | 151 | 65 | 100 | F1/F2 | 2.15 |
| 11 | TL1280 | 12 | 8 | 151 | 65 | 100 | F1/F2 | 2.3 |
| 12 | TL12100 | 12 | 10 | 151 | 98 | 100 | F1/F2 | 3 |
| 13 | TL12120 | 12 | 12 | 151 | 98 | 100 | F3/F13 | 3.35 |
| 14 | TL12150 | 12 | 15 | 181 | 76 | 167 | F3/F13 | 4.4 |
| 15 | TL12170 | 12 | 17 | 181 | 76 | 167 | F3/F13 | 5 |
| 16 | TL12200 | 12 | 20 | 181 | 76 | 167 | F3/F13 | 5.15 |
| 17 | TL12240 | 12 | 24 | 175 | 166 | 125 | F3/F13 | 8 |
| 18 | TL12320 | 12 | 32 | 196 | 131 | 172 | F7/F11 | 10 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
