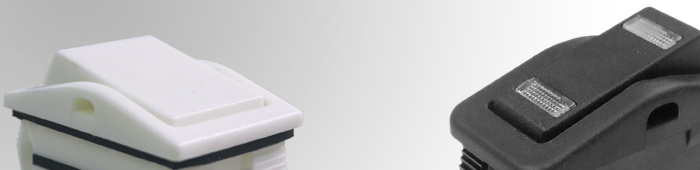

Sealed to IP67 Protection, Double LEDs Rocker Switch

Name: Sealed to IP67 Protection, Double LEDs Rocker Switch
Brand: all-electronics-online.com
SKU: 772017535
Availability: InStock
Rating: 4.7 (68 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	X7-series Rocker Switches
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Two Panel Cutouts: Thin Or Solid Types:	Sealed to IP67 Protection, Double LEDs, on-on
Usage:	Electrical Appliance
Standard:	Standard
Lamp:	With Lamp
Color:	White
Certification:	CE

Product Description

ROCKER SWITCH

X7-H20-FNN1-BBB-1*PC
(ON-ON, 2 positions,
waterproof over the panel)

X7-130-FNN1-BBB-1*PC
(ON-OFF-ON, 3 positions,
waterproof over the panel)

X7-230-FNNN-BBB-1NWC
(Black body&actuator,
ON-OFF-ON, 3 Positions,
Full waterproof)

X7-230-FNNN-WWB-1NWC
(White body&actuator,
ON-OFF-ON, 3 Positions,
Full waterproof)

X7-230-FNN1-BBB-1*PC
(ON-OFF-ON, 3 Positions,
waterproof over the panel)


16A 125/250VAC; 20A 125VAC 16(4) 250V~μT125/55 16A 6~30VDC Dielectric strength : 1,000VAC for 1 min. Insulation resistance : 100M ohm MIN. at 500VDC Initial contact resistance : 20m ohm MAX Electrical life : 10,000 cycles	ON-OFF-ON, ON-ON available Two LEDs for custom color selection quick connecting terminals Plastic housing and actuator Suitable for outdoor application Sealed to protection level IP67 ( passing MIRDC's TAF laboratory test )

20A 125VAC, 12A 250VAC ( UL, CUL )
12A 125VAC, 10A 250VAC ( UL, CUL )
10A 125VAC (UL, CSA NRTL/C)
6A 250VAC (UL, CSA NRTL/C)
6A 125VAC, 3A 250VAC(UL, CSA NRTL/C)
10(4)A 250VAC~ T125 (VDE, SEMKO, DEMKO, NEMKO, FIMKO, SEV)
10(4)A 250V~T125 (CQC)
TV-6 (CUL)
10A 12/14/18/24 VDC ( UL, CUL)
16(8)A 250V T85 1E4 (VDE)
Initial contact resistance: 20m ohm (max. )
Insulation resistance: 100M ohm (min, ) at 500VDC
Dielectric strength: 1, 000VAC for 1 minute
Electrical life: 10, 000 cycles
Temperature range: -20 to +125 degrees in Celsius
Switch for Class II appliances
Base: Nylon 66, UL rated 94V-2 min
Actuator: PBT / Nylon 66, UL rated 94V-2 min
Spring: Piano wire
Contact: Silver alloy
Terminals: Silver plated Copper, soldering, quick connecting and PCB terminals offered

BNE Harvest Tech Ltd.Specializes in producing and engineering for all kinds of switches, actuators, and electronical metal part you are looking for.

Our products have obtained VDE ENEC14 CE UL TUV CB CQC SGS and other certificates, in order to ensure product quality, customer confidence, and worry-free use of our high quality products, we strictly in accordance with ISO-9001 quality management system, ISO-14001 environmental management system management and operation standards.Welcome to the new and old customers call the funding.
We can custom make any component you like as well.We also have many suppliers who we do large quantity business with, so we get very good discounts which we pass onto you.

Thank you for looking at our company.Please allow me to tell you a little bit about myself.My name is Carel Pan, I am 31yrs old, I graduated from Suzhou university with a BA in business English and a minor in Japanese in 2006.Currently supply many famous brands in many countries like Germany, USA, Hill-ROM (hospital bed maker), Skytoy Aircraft Technologies (water proof switches), Korea (Semiconductor), Switzerland (Hairdrier switches), Israel (Alarm sensors), Poland, and many more.Please feel free to request a reference if you like.

We understand that dealing with most Chinese suppliers is very scary, difficult and frustrating.We can assure you that your money is safe with us and we stand behind our products.Our experience in the switch business is vast and we assure you will get what you asked for and it be to the highest of standards.I can speak 2 languages fluently and I have family that can speak and write German and Spanish fluently.Wir sprechen Deutsch, Se habla Espanol.

Our quality is of the highest standards hence our current customer base.We can supply you with large or small orders, prices are according to QTY.

Please feel free to email us for a quote.You will see we are different from the rest because we care about you.
