Name: Security Cable RG59 with 2 Power Cable
Brand: all-electronics-online.com
SKU: 684898955
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59 siamese
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Application:	CCTV Camera
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CE
Type:	Coaxial

Product Description

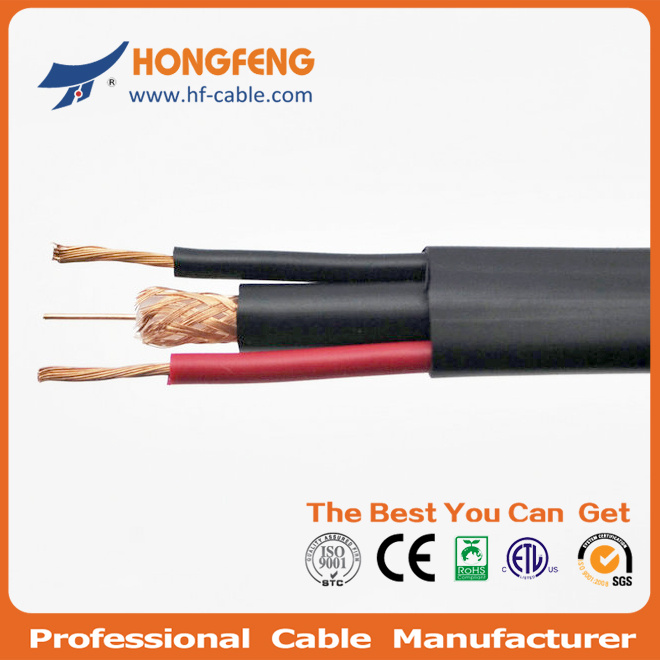

RG59+2 Power Cable
Inner condctor: Copper wire
Overall diameter: 0.4+/-0.01mm

Insulation: FPE
Overall diameter: 2.0+0.1mm
Shield 1: Single AL foil
Outer conductor: (shield 2): 80*0.12mm TC wire
Coverage: 90%
Jacket: PVC
Overall diameter: 3.5+0.1mm

POWER CABLE
Inner conductor: Copper wire
Overall diameter: 15*0.20+/-0.005*2
Insulation: PVC
Overall diameter: 1.7+/-0.1mm*2
Color: Red * black

D. W
TC: 7*0.12mm

Shield 3: Wraping with single AL foil

Jacket: PVC
Overall diameter: 6.9+/-0.20mm

IMPEDENCE: 73+/-3OHMS
CAPACITANCE: 58PF/M

Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg179, rg213, rg214, rg316, rg393, rg402, etc.;

2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, etc.;

3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;

4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;

5) LMR SERIES: LMR200, LMR400, LMR600;

6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;

7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.

Beldin
Hangzhou Hongfeng Cable Co., Ltd.
http://www.hf-cable.com
Tel: +86-18268847560
Fax: +86-571-63816227

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
