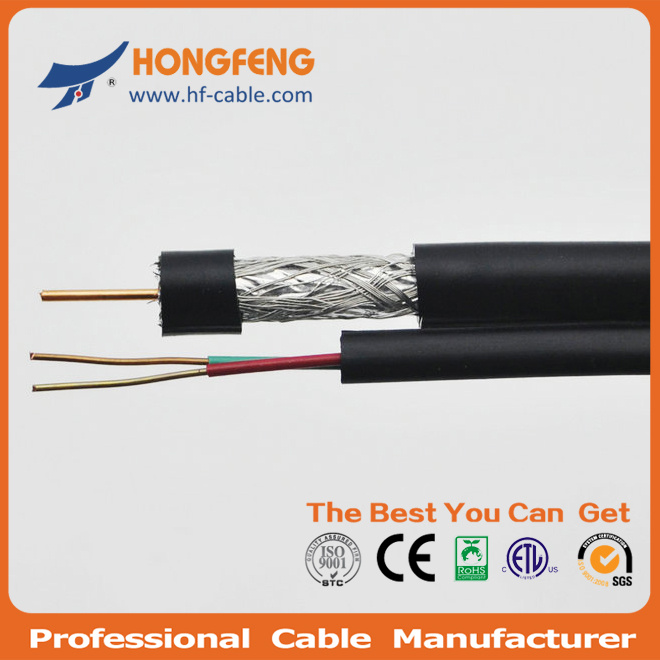

Security Cable Siamese Cable RG6+2c

Prod Model:	RG6+2C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Bc/CCS
Conductor Od:	1.02mm
Dielectric:	4.57mm Fpe
1st Shield:	Ai Foil
2ND Shield:	Bc/Ai Braiding
Shielding Coverage:	30%-95%
Jacket:	6.91mm PVC/PE
Color:	Any Color
Impendence:	75ohm
Application:	Submarine Cable
Certification:	UL
Cover Material:	PVC/PE
Wire Core Material:	Bc/CCS

Product Description

Product Description
Catv coaxial cable rg6


Basic Info.
Model NO.: RF coaxial cable
Application: Local Communication Cable
Conductor Material: Copper
Type: Coaxial Cable
Cover Material: PE
Certification: CE
Jacket: PVC
Jacket Color: Black/White/Color
Impedance: 75 Ohm
Braid Shied Material: Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor: CCS, CCA, Cu
Inner Conductor Diameter: 0.8-1.3mm
Certificate: ISO9001, Cl2/CATV/Cm UL
Dielectric: 3.66-5.72mm
Insulation Material: Bonded/Non Bonded
Jacket Diameter: 6.1-8.08mm
Export Markets: Global
Additional Info.
Trademark: Hongfeng cable
Packing: 100m/Roll, 200m/Roll, 305m/Roll, 100yard/Roll,
Standard: Rg11 rg59 rg6
Origin: China
HS Code: 85442000
Production Capacity: 100, 000kms/Year
Product Description
1. RG11 RG59 RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 1.02mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.91 PVC jacket white

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request


DataRG59 RG59-TriRG59-Quad
Impedance(ohm)75± 375± 375± 3
Capacitance(pF/m)52± 252± 252± 2
Velocity Ratio85%85%85%
Insulation Resistance(MΩ /km)500050005000
Return Loss(dB)

Conductor	Material	CCS(15%-30%)
	Nom.Dia.	1.02mm
Dielectric	Material	Foam PE
	Nom.Dia.	4.57mm
Shield	Material	17mmAl bonded foil+96*0.12mmAlloy wire
	Coverage	40%-95%
Jacket	Material	PVC/PE
	Nom.Thick.	0.80mm
	Nom.Dia.	6.91mm



Nominal Impedance(ohm)	75±3
Nominal Velocity of Propagation(%)	85
Nominal Capacitance(pF/m)	50
Sparker Test(VAC)	4000
