Security Gemt Cable Rubber Cable

Name: Security Gemt Cable Rubber Cable
Brand: all-electronics-online.com
SKU: 802279525
Availability: InStock
Rating: 4.3 (72 reviews)

Price:	US $ 0.15-0.2/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RC-059
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Gemt

Product Description

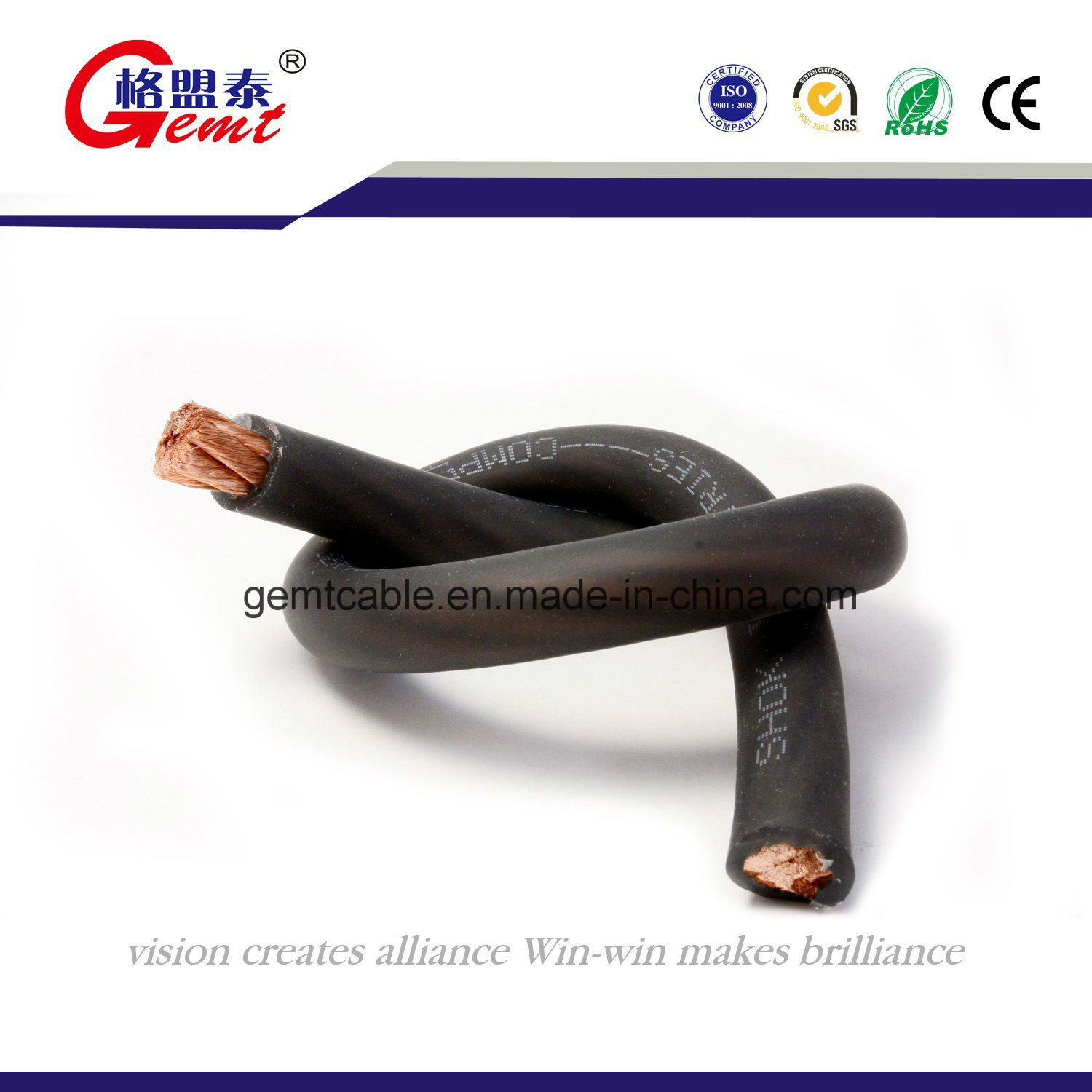

Security GEMT Cable Rubber Cable

1. Cable detailed information:

1. Cable working temperature should not exceed 95 degree

2. Cable have a certain extent of temperature resistance and oild resistance, fit to work outdoor and smeary enviroment

3. Reach standard GB/T18380.1-2001 vertical flame test

4. Rated Voltage: 300/500V, 450/750V, 600/1000V

5. Standard: IEC 245-53/66

6. When cable working in temperature 20 degree ,the insulation between conductors above 50M .KM

7. Applicable scope: These tough rubber sheathed cables conform to the IEC standard and are ideal for use in both outdoor and wet conditions.The cables are ideal for lightweight hand and workshop tools while the other groups are suitable for increasingly higher levels of stress and heavy duty equipment.

2. Detailed Specification:

No.of core	normal cross-sectional area of conductor	Conductor	Normal thickness of insulation	Normal thickness of jacket	Cable O.D	Max conductor resistance(20oC)	Ampere rating
No.of core	mm2	No./Dia	mm	mm	mm	≤ Ω /km	A
1	1.5	30/0.25	0.8	1.4	5.8-6.7	13.3	27
	2.5	49/0.25	0.9	1.4	6.5-7.2	7.98	37
	4	56/0.30	1	1.5	7.6-8.5	4.95	47
	6	84/0.30	1	1.6	8.5-9.5	3.3	52
2	1	32/0.20	0.8	1.3	8.2-9.1	19.5	17
	1.5	30/0.25	0.8	1.5	9.1-10.1	13.3	21
	2.5	49/0.25	0.9	1.7	10.9-12.4	7.98	30
	2*4	56/0.30	1	1.8	12.9-14.8	4.95	39
	3*6	84/0.30	1	2	14.7-16.6	3.3	51
3	3*1	32/0.20	0.8	1.4	8.9-9.9	19.5	12
	3*1.5	30/0.25	0.8	1.6	9.8-11.1	13.3	18
	3*2.5	49/0.25	0.9	1.8	11.7-13.4	7.98	28
	3*4	56/0.30	1	1.9	13.8-15.7	4.95	34
	3*6	84/0.30	1	2.1	15.7-17.6	3.3	43

3. Technical Sheet:

Application: Used for general purpose, as building wire for power, lighting and control wire. They can be fixed into truck and conduit.

Standard: IEC227/BS6004

Structure: Solid Pure copper or CCA

Rated Voltage: 300/500V, 450/750V

Insulator: Polyvinyl Chloride (PVC) Rated 70oC

Color: White, Black, Yellow, Red, Blue, Yellow/Green, etc

4. Why Choose Us(GEMT):

G--Guaranteed quality

E--Effective service

M--Mutual benefit

T--Top technique

GEMT Cable, Friend Reliable

5. Company Information:

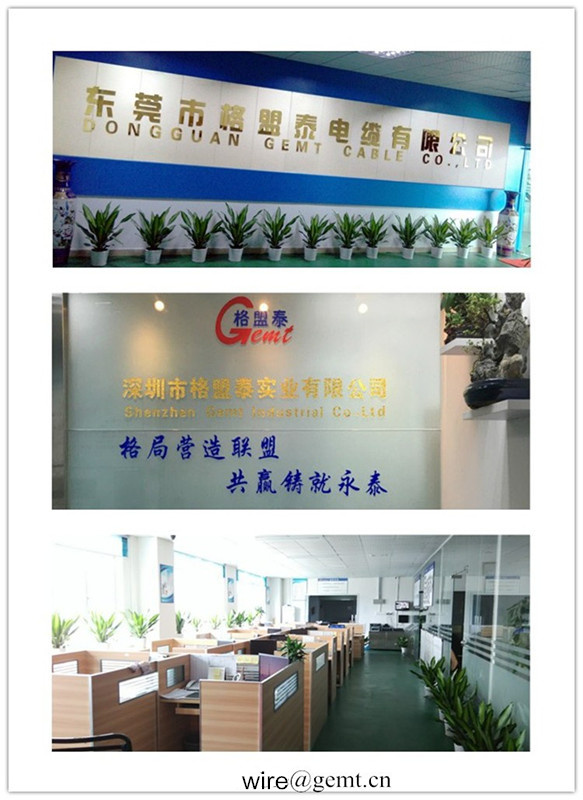

company:

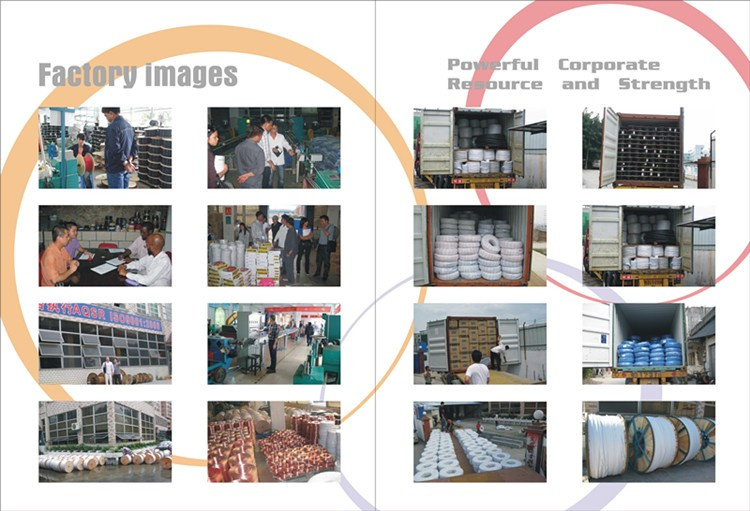

factory:

trade show:

packing & shipping:

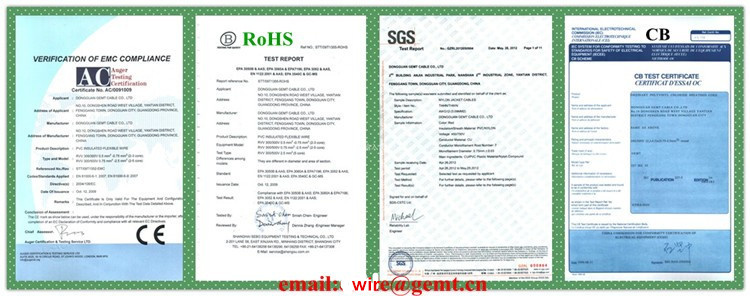

certification:

WARMLY WELCOME TO VISIT TO OUR FACTORY AND SHOWROOM , AND KNOW MORE ABOUT US ~~~~

PLS FEEL FREE TO

CONTACT ME : VERA ZHUANG
TEL:+86-13415529380

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
