| Prod Model: |
VV22-034 |
| Color: |
Black,White,Yellow,Blue,Red etc |
| Size: |
Costomized |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
Rubber |
| Certification: |
RoHS |
| Brand: |
Gemt |
Product Description

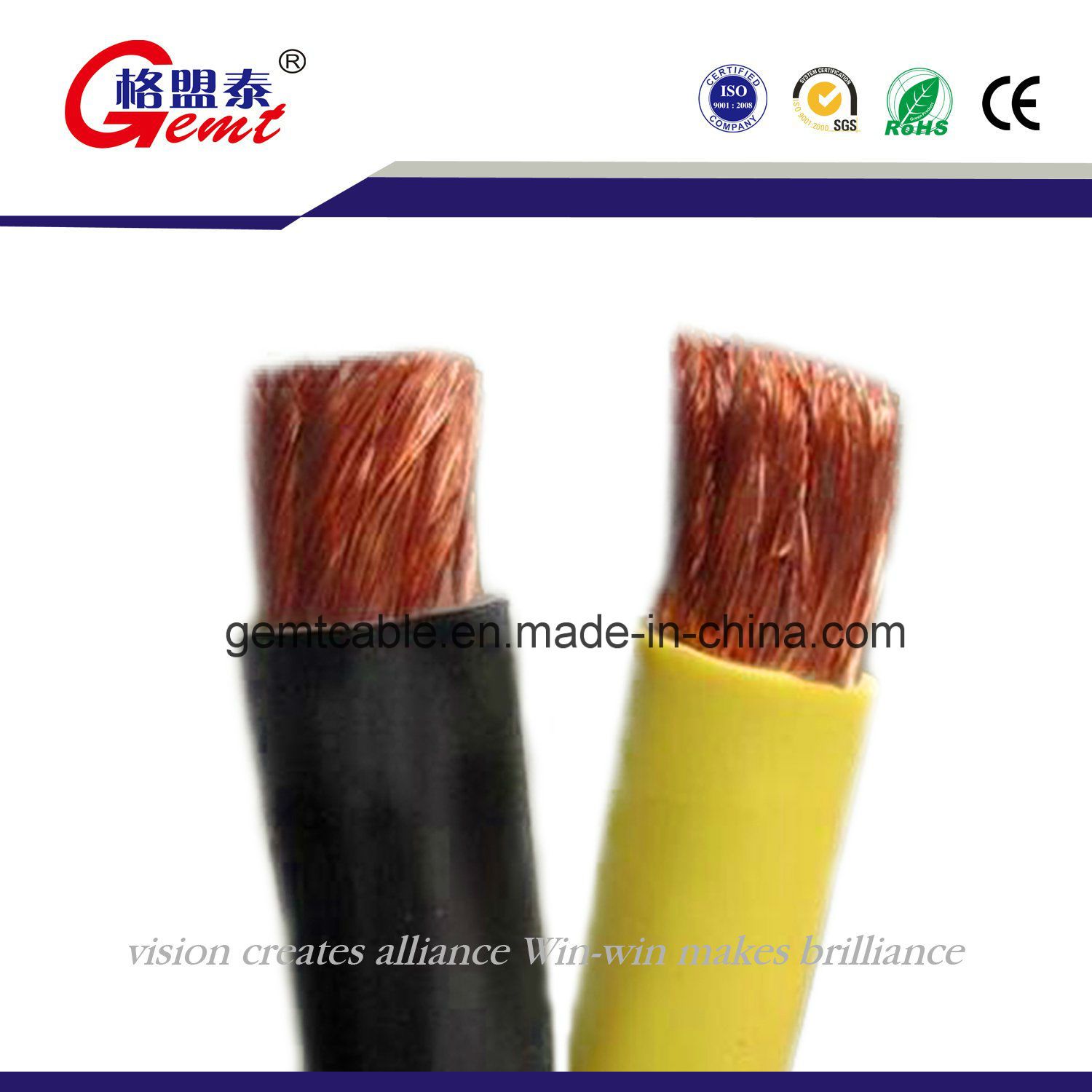

Security Insulated Welding Electric Wire 1. Cable Introduction:
1) Standard: IEC245-81/82
2) Conductor: Flexible bare copper or CCA
3) Insulation: Polyvinyl Chloride (PVC) or Rubber
4) Rated Voltage: 450/750V, 600/1000V
5) Rated Temperature: -20oC~+70oC
6) Application: Welding Cable is used for connection from electrode holder and clamp to arc welder, bus, welding box or transformer. May also be used in automotive applications where high flexibility and superior abrasion and chemical resistance is required.
2. Details of Transaction:
1) Minimum order quantity: 10 kilometers at least
2) Price: FOB or CIF at any port in China
3) Payment: 30% down payment, balance against B/L copy
4) Lead Time: within 20 days
5) Packing: 100m/roll or 500m/roll in bag, box or drum
6) Sample: Free sample is available for you
7) Individual Service: can print your logo or brand name on cable
3. Specification:
Section | Core structure cores/mm | 20 conductive wire core DC resistance Ohm/km |
No Tinning | Tinning |
10 | 322/0.20 | ≤1.19 | ≤1.95 |
16 | 513/0.20 | ≤1.16 | ≤1.19 |
25 | 798/0.20 | ≤0.758 | ≤0.780 |
35 | 1121/0.20 | ≤0.536 | ≤0.552 |
50 | 1596/0.20 | ≤0.346 | ≤0.390 |
70 | 2214/0.20 | ≤0.268 | ≤0.276 |
95 | 2997/0.20 | ≤0.198 | ≤0.204 |
120 | 3702/.0.20 | ≤0.161 | ≤0.164 |
4. Product description:Conductor: Multi-Unit bare copper wire strands
Insulation: Polyvinyl chloride (PVC)
Sheath: Polyvinyl Chloride (PVC)
Rated Voltage: UO / U for 300/500 V
Temperature Rating: Long-term temperature should be no more than 70
Flame retardant cable (wire) is not the characteristics of fire or after the fire and to slow the spread of flame control within a certain scope, the use of fire-retardant properties in the higher occasions. Flame retardant cable (wire) is divided into categories A, B and C categories, such as three levels, Class A fire-retardant properties of the optimal.
Refractory cable (wire) is characterized by cables in addition to work under the conditions of transmission of electricity, but also in a state of fire burning can still maintain the safe operation of a certain period of time, the use of a cable on the occasion demands. Refractory cable (wire) is divided into categories A and B two-level, according to different requirements of different types of fire-resistant cable.
Low Smoke low halogen cable (wire) is a low smoke, halogen the characteristics of low due to combustion control cables at a toxic chlorine in black and gray smoke. Cable staff in the use of more intensive occasions.5. Why Choose Us(GEMT): G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable
6. Company Information:

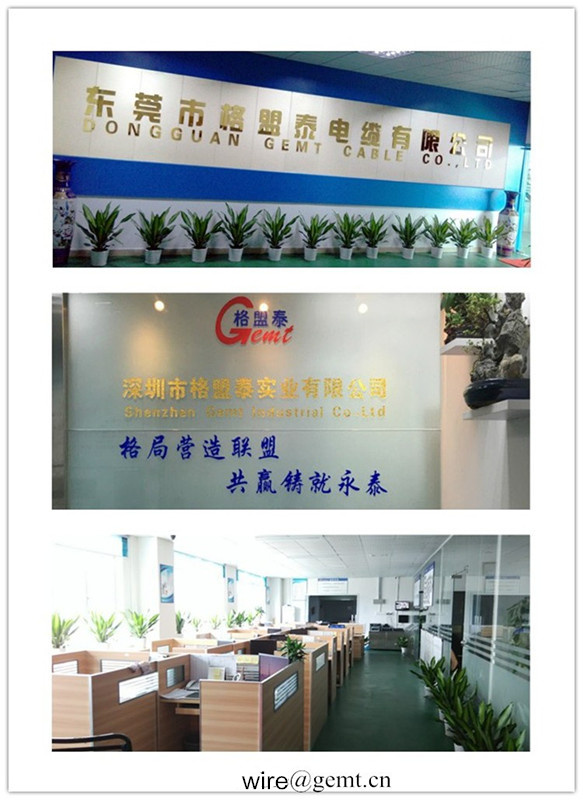

Company:

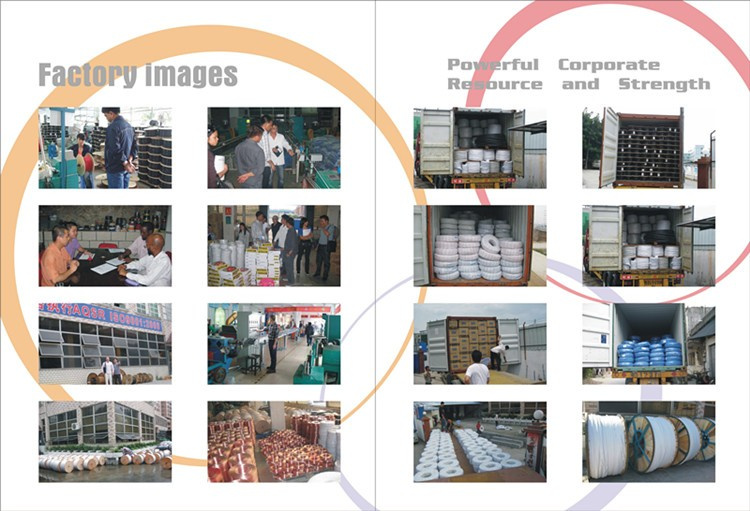

Factory:
Trade Show:
Packing & Shipping:

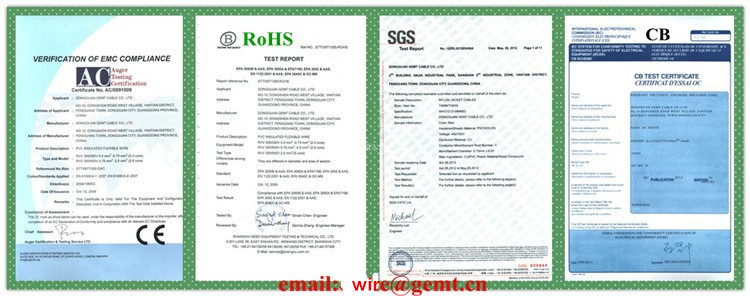

Certification:
7. FAQ:Q: Can I have a sample?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: How long is the lead time?
A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?
A: Our MOQ is 100-10000meters, depending on the products;
Sea Port: FOB Shenzhen.
Q: Do you provide OEM or ODM services?
A: Yes, we do.
Q: Do you offer guarantee for the products?
A: Yes, we offer five years guarantee for the products.
