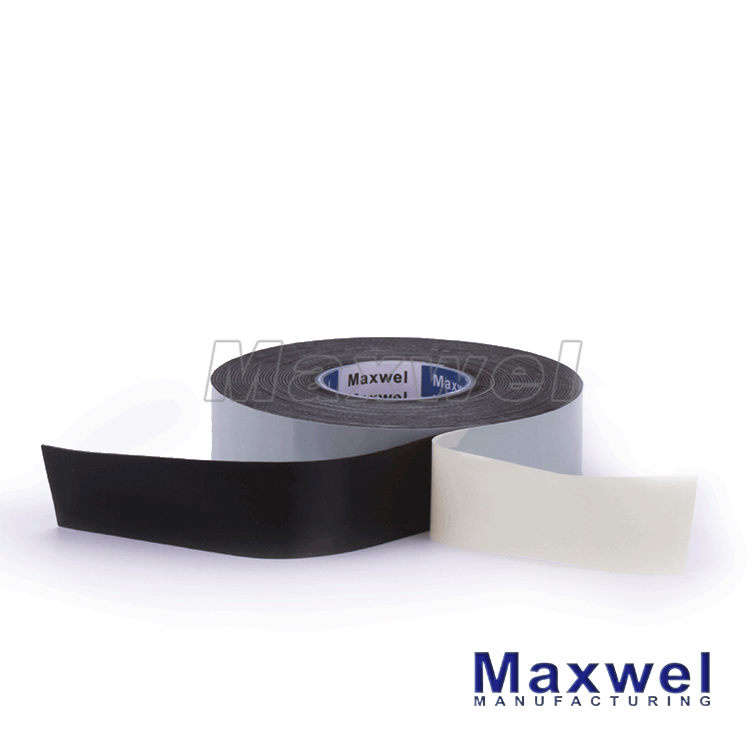

Self-Adhesive Electrical Tape for High Demand Market/Epr Insulation Tape

Prod Model:	KE30R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Elongation:	800%-1000%
Raw Material:	Epr
Tensile Strength:	1.8MPa
Disruptive Voltage:	35kv/mm
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	Y 90
Maximum Voltage:	20KV~100KV
Application:	High Voltage Self Amalgamating Tape
Material:	Epr

Product Description

Self Amalgamating, Insulating and Splicing Tape

KE30R tape is made from EPR (Ethylene Propylene Rubber). They are non-vulcanizing and shelf-stable with excellent electrical properities.

KE30R tape can be used as insulating for low voltage application as well as insulation for joints up to 69kv.

Features:
1. Non-vulacanizing and highly conformable
2. Physical and electrical properties are unaffected by the degree of strength
3. Can be stretched up to 800% to make void-free
4. Moisture-resistant insulation, self-amalgamating tape
5. Excellent electrical properties

Size:
19mm*0.76mm*9.14m
25mm*0.76mm*9.14m
38mm*0.76mm*9.14m
50mm*0.76mm*9.14m
Special size tape can be requested

Application:
1. Primary insulation for make stress cones on cables up to 35kv
2. Primary electrical insulating for cable jointing and terminating up to 69kv with up to 90 degree continuous operating temperature and 130 degree emergency overload temperature

Model	Tensile Strength (Mpa)	Elongation (%)	Disruptive Voltage (KV/MM)
KE10	1.5	500	5
KE20	1.5	600	11
KE30R	1.8	800	32
KE30P	1.8	800	35
