Self Amalgamating Cable Repair High Voltage Insulation Tape

Name: Self Amalgamating Cable Repair High Voltage Insulation Tape
Brand: all-electronics-online.com
SKU: 827885895
Availability: InStock
Rating: 5 (26 reviews)

Price:	US $ 1.12/Roll
Min Order:	200/Roll
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KE30NS
Elongation:	800%
Tensile Strength:	1.5MPa
Disruptive Voltage:	5kv/mm
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Material:	Rubber
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV
Color:	Black

Product Description

Self Amalgamating Tape
KE Series Tape Made From Premium Grade Self Bonding Rubber
Mainly made from EPR(Ethylene Propylene Rubber),They are non-vulcanizing and self-stable with exectrical properties,Ke tape can be used as insulation for low voltage application as well as insulation for joints up to 69kv.
Features
Non-vulacanizing and highly conformable
Physical and electrical properties are unaffected by the degree of stretch
Moisture resisant insulation,self amaglamating tape
Excellent electrical properties

Application

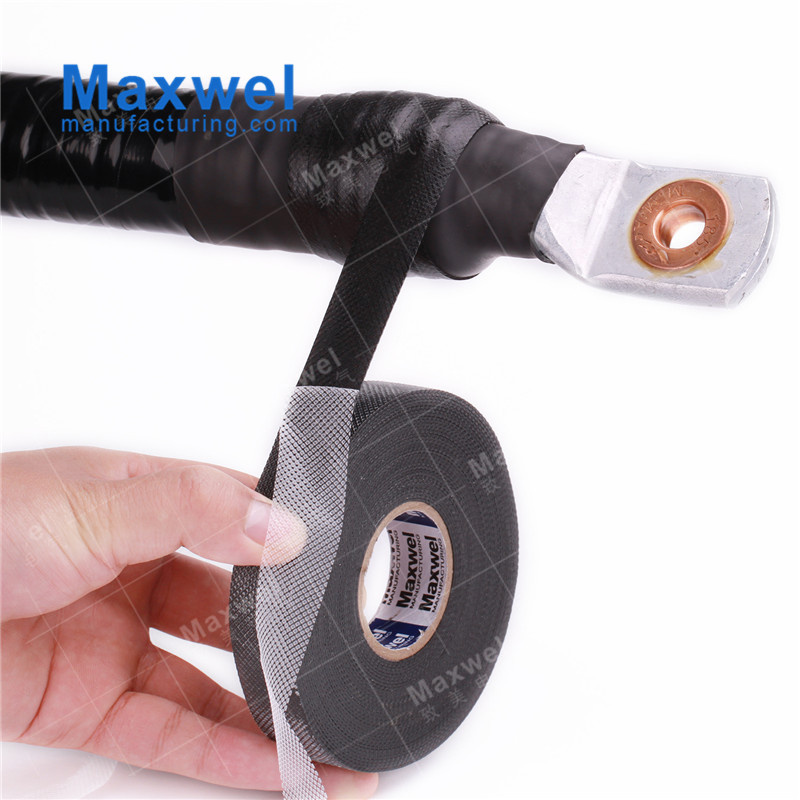

Primary insulation for make stress cones on cable up to 35KV
Primary electrical insulation for cable jointing and terminating up to 69kv with up to 90ºC
Continuous operating terperatures and 130ºC emergency overload temperature

Sizes

19mm*0.76mm*9.14m

25mm*0.76mm*9.14m

38mm*0.76mm*9.14m

50mm*0.76mm*9.14m

Special size tape can be requested.

Model	Tensile Strengh	Elongation	Disruptive Voltage
Model	(Mpa)	(%)	(kv/mm)
KE10	1.5	500	5
KE20	1.5	600	11
KE30R	1.8	800	32
KE30P	1.8	800	35
KE30NS	1.8	1000	35

Product Details:

Maxwel Manufacturing Co.,Limited Welcome to you!

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
