Self Amalgamating Epr Rubber Electrical Tape (KE40)

Prod Model:	KE40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	25mmx0.76mmx5m
Raw Material:	Epr
Elongation:	>500%
Tensile Strength:	>1.0MPa
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Rubber
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Color:	Black
Brand:	Maxwel

Product Description

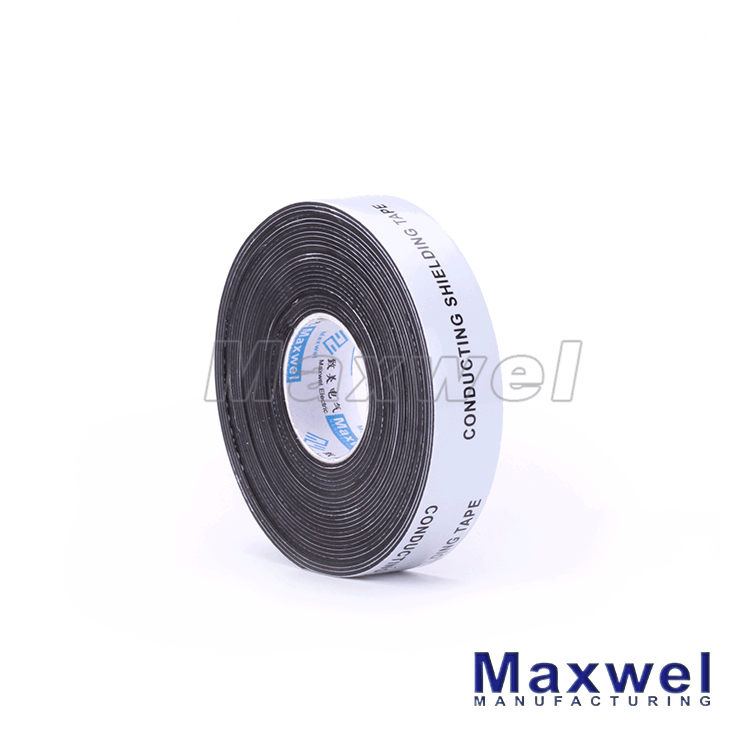

Self amalgamating EPR electrical tape (KE40)

KE40 tape semi conducting high-voltage splicing tape
Mainly made from semi EPR(Ethylene Propylene Rubber), they are non-vulcanizing and shelf-stable conductivity over a wide temperature range.

Features
Remains stable at 130° C and is non-vulcanizing
Elongates easily to form irregular shapes
Resist cracking, solvents, U. V. And moisture

Application
Electrically rounds-off high voltage connectors and lugs
Provides screen continuation for high voltage joints and termination
Replaces semi-conducting layer beneath metallic shield of damaged cables
Forms conductive portion of stress cones

Size
25mm X 0.76mm X 5m
Special size available

Quality guarantee
Competitive prices


Description	Unit	Spec
Tensile Strength	Mpa	≥1.0
Elongation	%	≥500
Self Adhesion	/	Not loose
Thermal Stress Resistance	/	Pass
UV Exposure Resistance	/	No cracks
Volume Resistivity	Ω\cm	≥100~1000
