| Prod Model: |
GPS Container Tracker 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC |
| Weight: |
300 |
| Size: |
94*60*38mm |
| Delivery Time: |
1-3 Working Days |
| Battery: |
Built-in Large Capacity 6000mA Battery |
| Magnets: |
Powerful Magnets to Absorb to Vehicle Firml |
| Tracking: |
Real-Time Tracking, Retrieve of Lost Vehicl |
| Compact Design: |
Internal External GPS GSM Antennas |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Long Standby GPS104 |
| Brand: |
Baanool |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description
self contained antennas GPS Container Tracker with large battery (GPS104) vehicle Tracker GPS104/TK104

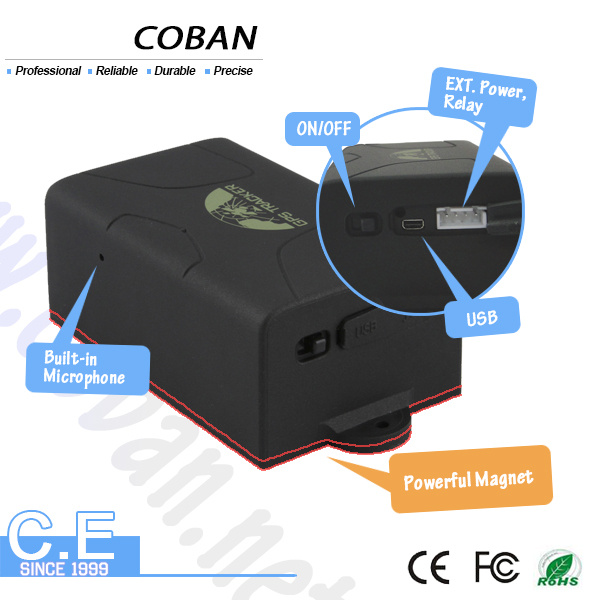

Features and Functions1. Waterproof shell
2. Built-in large capacity 6000MA battery, long standby time of 60 days.
3. Powerful magnets to absorb to vehicle firmly.
4. Real-time tracking, retrieve of lost vehicles, cargo.
5. Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
6. Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
7. Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
8. Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
9. tracking function by timing and frequency
10. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
11. Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
12. Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
13. Low battery alarm function
14. Remote Engine-stop and Resume. Applying directions: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.

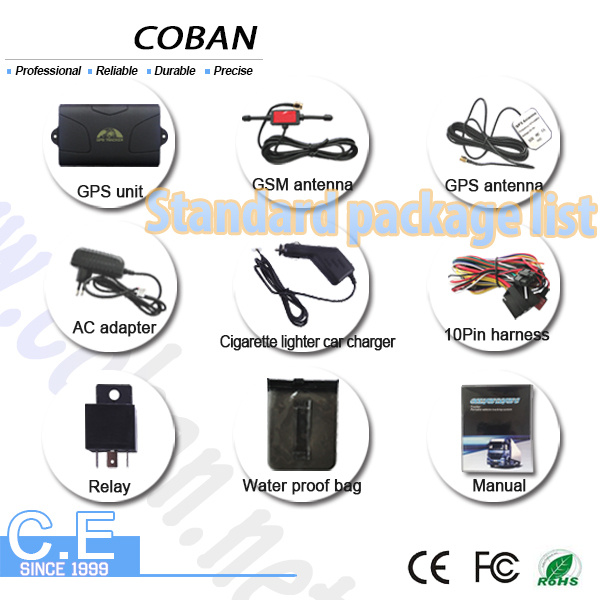

Part List
1 X GPS Tracker 104
1 X AC adapter (Input: AC 100-240V,Output DC: 1.5A,12V)
1 X Lighter car adapter (Car 12V OR 24V power)
1 X GPS Antenna
1 X GSM Antenna
1 X Relay
1 X Harness
GPS104 Specifications
Content | Specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GPS/GSM/GPRS |
| Band | 850/900/1800/1900Mhz or 900/1800/1900Mhz |
| GSM/GPRS Module | Simcom340z or Simcom300z |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA±1mA |
| GSM operating Current | 54mA±3mA |
| GPRS Current(data transfer) | 60mA±5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A±0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
