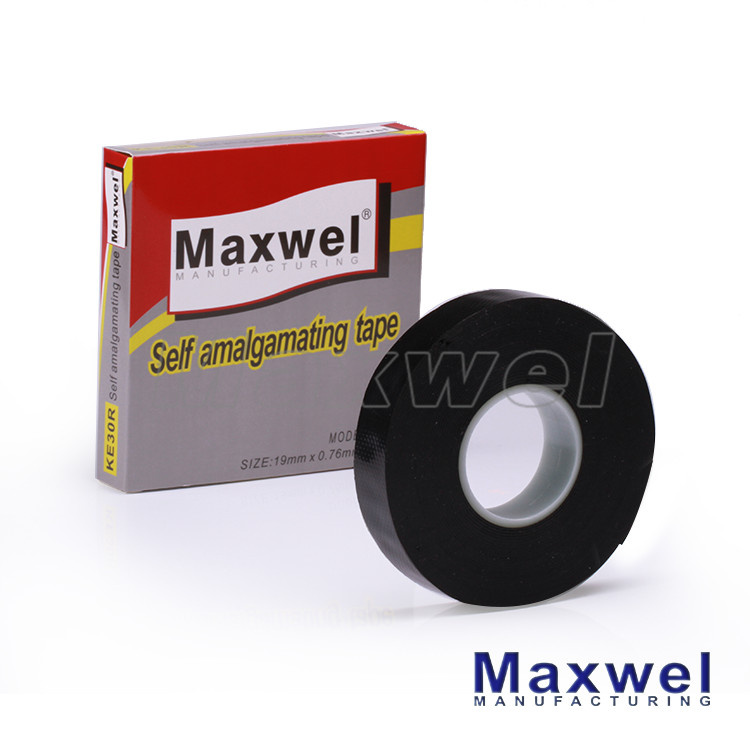

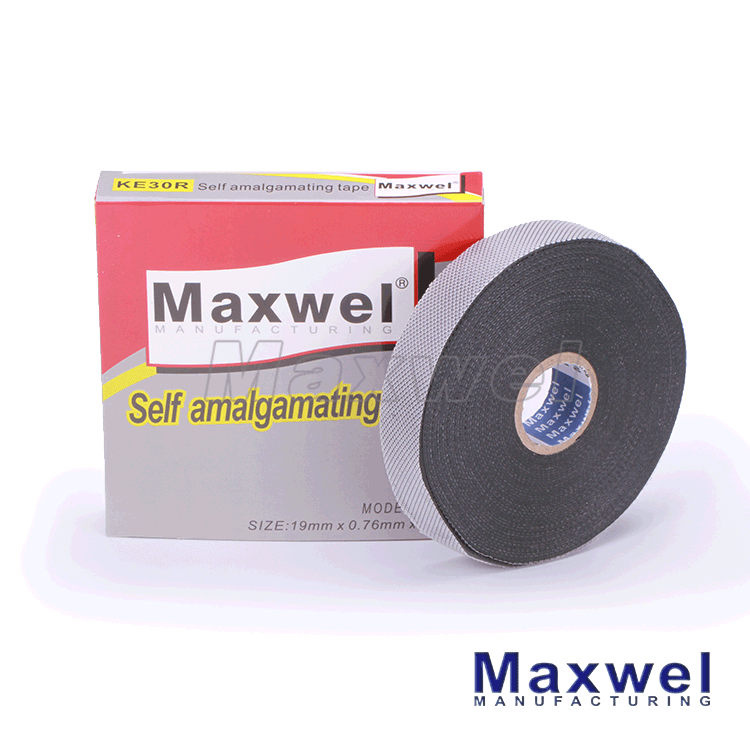

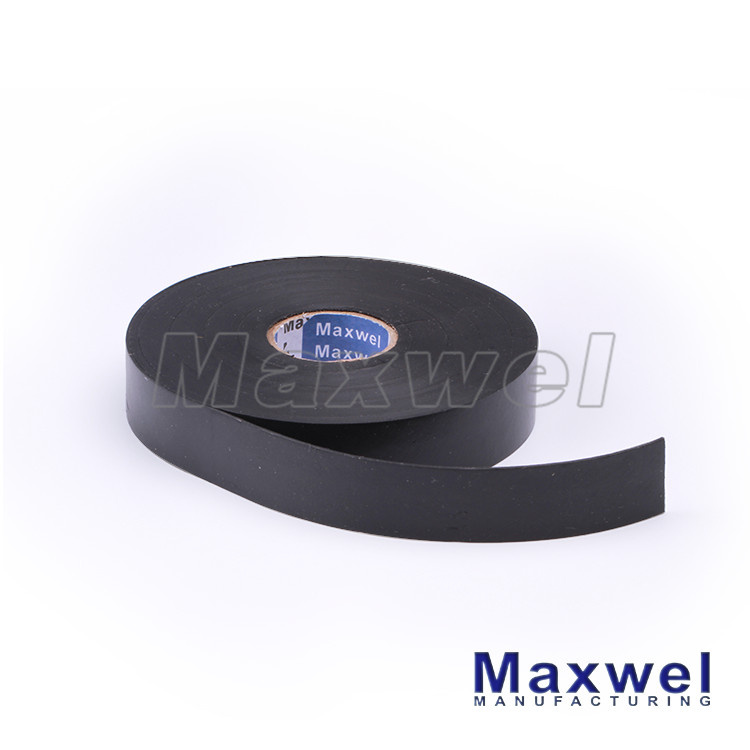

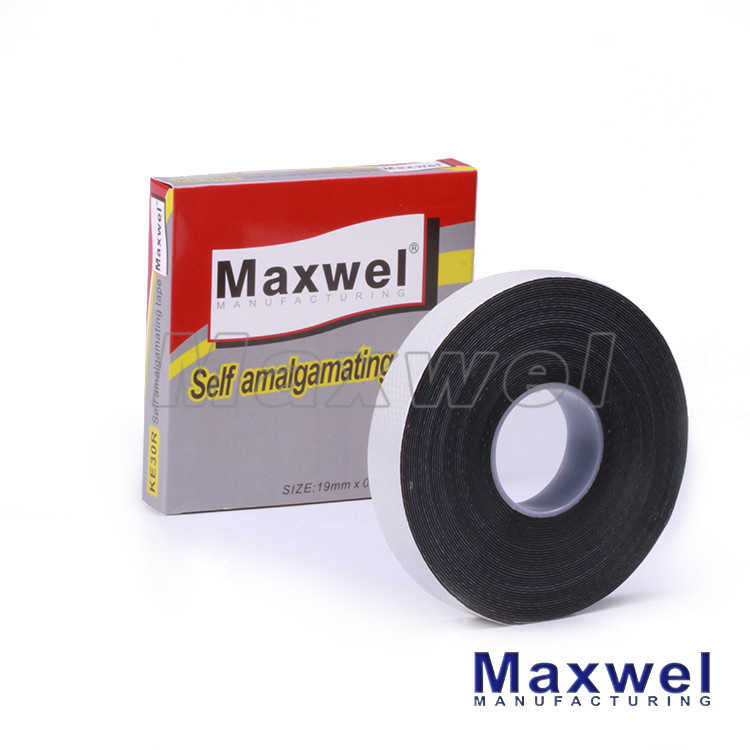

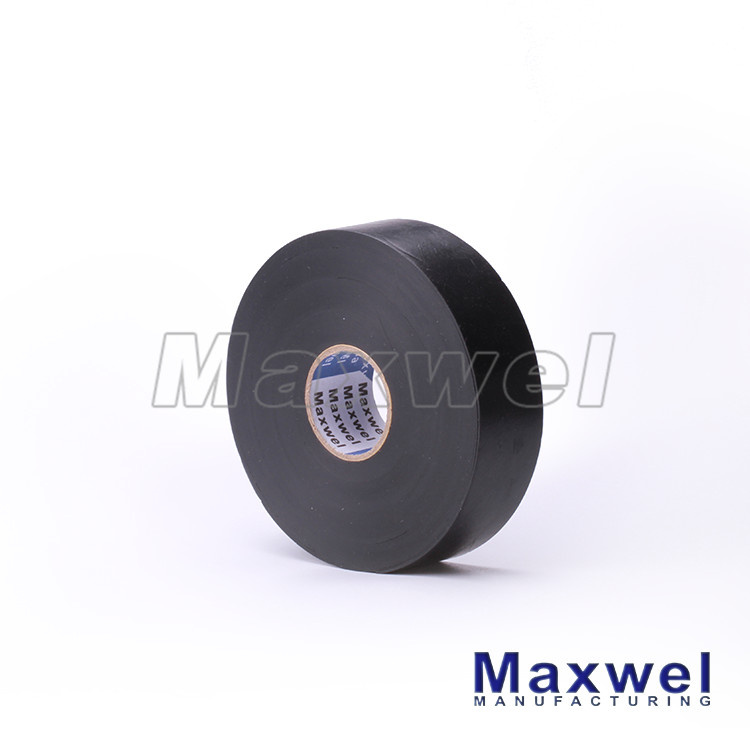

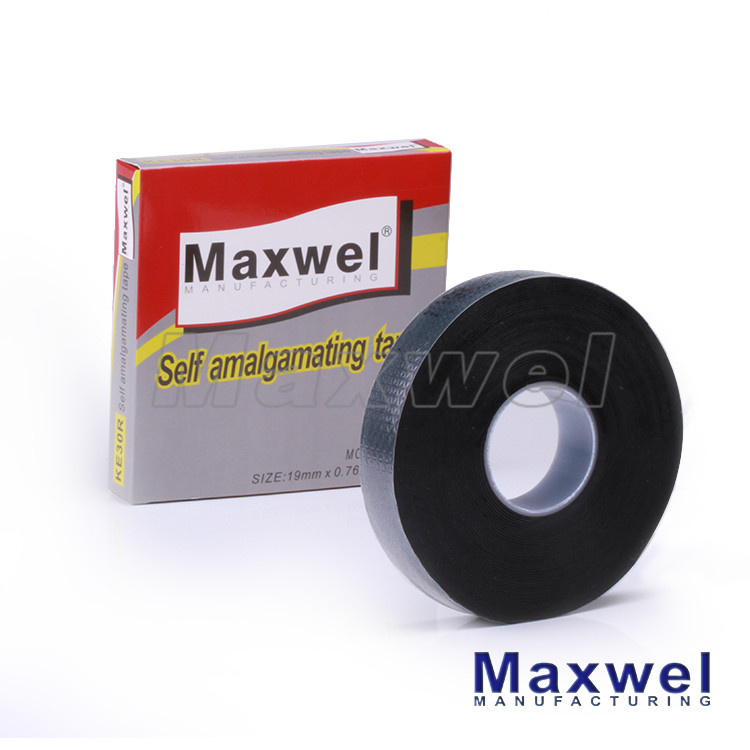

Self Fusing High Voltage Insulation Tape (KE20)

Name: Self Fusing High Voltage Insulation Tape (KE20)
Brand: all-electronics-online.com
SKU: 704221245
Availability: InStock
Rating: 4.9 (95 reviews)

Price:	US $ 1.36/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KE20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material:	Epr
Thickness:	0.76mm, 0.5mm
Length:	up to 12m
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Rubber
Thermal Rating:	Y 90
Maximum Voltage:	10KV~20KV
Color:	Black

Product Description

Self fusing high voltage insulation tape

Features
Non-vulacanizing and highly conformable
Physical and electrical properties are unaffected by the degree of stretch
Can be stretched up to 800% to make void-free
Moisture-resistant insulation, self amalgamating tape
Excellent electrical properties

Application
Primary insulation for make stress cones on cables up to 35KV
Primary electrical insulation for cable jointing and terminating up to 69KV with up to 90° C. Continuous operating temperatures and 130° C emergency overload temperature.

Sizes
19mm x 0.76mm x 9.14m
25mm x 0.76mm x 9.14m
38mm x 0.76mm x 9.14m
50mm x 0.76mm x 9.14m
Special size can be requested.
Bobbin Type: Plastic tube or Paper tube

Quality guarantee!
Competive price!

Model	Tensile strength	Elongation	Disruptive voltage
Model	(Mpa)	(%)	KV/mm
KE10	1.5	500	5
KE20	1.5	600	11
KE30R	1.8	800	32
KE30P	1.8	800	35
