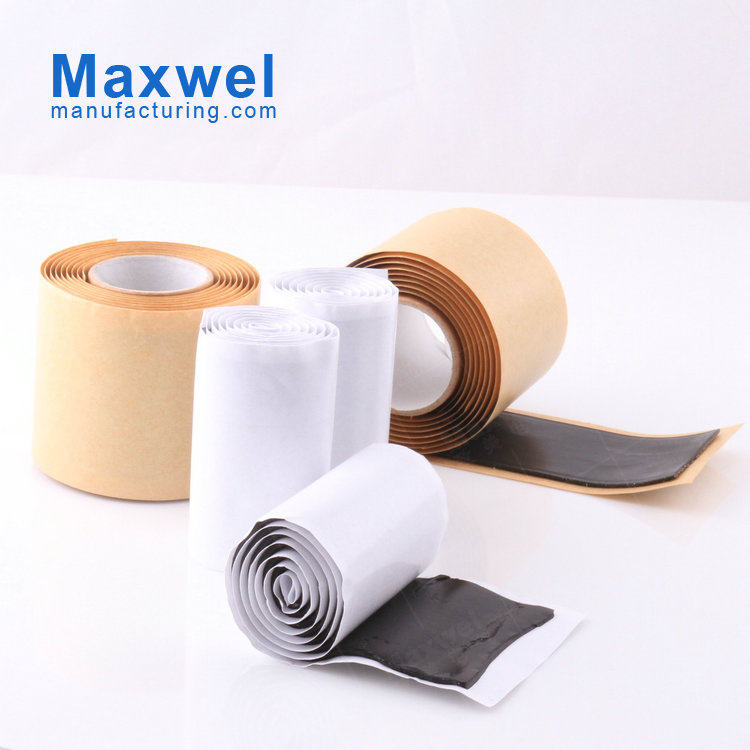

Self Fusing Rubber Electrical Tape (KE28)

Prod Model:	KE28
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	50mm*3m
Voltage:	1000V
Temperature:	90 C
Adhesive:	Mastic
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Rubber
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Color:	Black
Brand:	Maxwel

Product Description

Self fusing rubber electrical tape (KE28)

1. KE28 rubber mastic tape, electrical sealing and insulating tape
2. Consist of an EPR backing, coated with aggressive, temperature-stable mastic adhesive
3. Used for electrical insulating and moisture sealing application
4. Stable conductivity over a wide temperature range

Conformable for application over irregular surfaces
Self fusing tape
Flexible over wide temperature range
Excellent weather and moisture resistance

Application:
1. Primary electrical insulation for cable and wire connections rated up to 1000V
2. Primary electrical insulation for bus-bar connections rated up to 35kv.

Normal size: 1.65mmx50mmx3m


Material	EPR
Adhesive	Mastic
Color	Black
Voltage	Under 1000V
Temperature	90ºC
Emergency Temperature	130ºC
